STMicroelectronics Through Hole 3-Pin TRIAC 600 V Gate Trigger 1.3 V BTA12-600TWRG

STMicroelectronics BTA12-600TWRG is a high-performance Through Hole 3-Pin TRIAC designed for efficient power switching applications. Rated for a 600 V repetitive peak reverse voltage with a 12 A average on-state current, it provides reliable control in AC power applications.

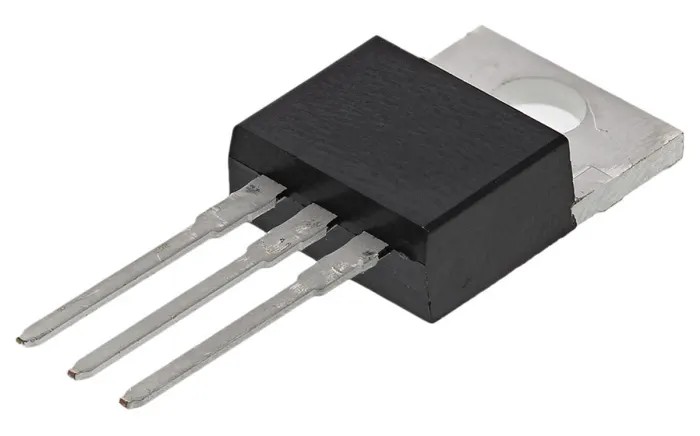

The device features a TO-220 package type that facilitates excellent heat dissipation and robust mechanical stability in circuit designs. With a maximum gate trigger current of just 5 mA and a low gate trigger voltage of 1.3 V, it supports sensitive and precise triggering capabilities.

Capable of operating in harsh temperature environments from -40°C to 125°C, this TRIAC delivers strong performance stability. Its peak surge current rating of 126 A ensures it can withstand transient spikes commonly found in industrial and household electrical circuits.

Measuring 15.9 mm in height and 10.4 mm in length, the BTA12-600TWRG offers a compact footprint, making it suitable for applications requiring dense component placement. The device maintains a maximum holding current of 10 mA and a peak on-state voltage of 1.55 V, contributing to efficient energy use and enhanced electronic system reliability.

With a repetitive peak off-state current of 1 mA, leakage current is minimized when the device is off, increasing overall circuit efficiency. This TRIAC is ideal for use in industrial controls, electronic component manufacturing, and power regulation systems.

Manufactured in China, the product is supplied in tubes, facilitating easy insertion into production machinery and improving manufacturing productivity. This TRIAC is mounted using a through-hole technology for secure PCB fixation.

Comes in a TO-220 package type ensuring reliable thermal management. Maximum gate trigger current is 5 mA with a gate trigger voltage of 1.3 V allowing sensitive triggering. Operating temperature range from -40°C to 125°C ensures versatility in harsh environments.

Peak surge current rating of 126 A enables handling of transient electrical spikes. Compact size with 15.9 mm height and 10.4 mm length for space-saving designs. Maximum holding current is 10 mA and peak on-state voltage is 1.55 V for efficient switching.

Repetitive peak off-state current is 1 mA for low leakage. Suitable for industrial and electronic power control applications. Packaged in tubes ready for automated machinery insertion. Explore more high-quality semiconductor components suited for industrial, laboratory, and electrical engineering uses on EnvMart.
