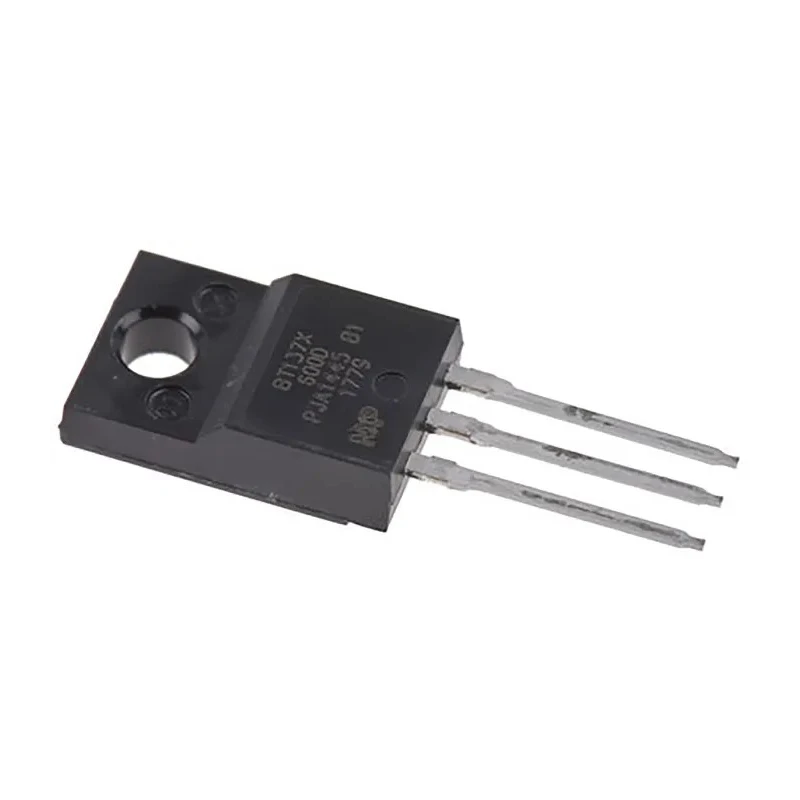

WeEn Semiconductors Co., Ltd TRIAC Through Hole, 3-Pin, 8A Irms, 600V VDRM, Gate Trigger 1.5V BT137X-600D,127
Specifications
| Country of Origin | China |
|---|---|
| Brand | WeEn Semiconductors Co., Ltd |
| Height | 9.3mm |
| Length | 10.3mm |
| Model | BT137X-600D,127 |
| Mount Type | Through Hole |
| Configuration | Single |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-220 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Rated Average On-State Current Irms | 8A |
| Repetitive Peak Reverse Voltage VDRM | 600V |
| Surge Current Rating | 71A |
| Maximum Gate Trigger Current Igt | 10mA |
| Maximum Holding Current Ih | 10mA |
| Maximum Gate Trigger Voltage Vgt | 1.5V |
| Peak On-State Voltage | 1.65V |
| Repetitive Peak Off-State Current | 0.5mA |
Key Features
- The device features a 3-pin TO-220 package for through hole mounting.
- It has a repetitive peak reverse voltage (VDRM) rating of 600V.
- The gate trigger voltage is a maximum of 1.5V with a trigger current of 10mA.
- The TRIAC operates reliably from -40°C to 125°C ambient temperatures.
- The surge current rating is 71A, suitable for transient load handling.
- The compact dimensions are approximately 9.3mm in height and 10.3mm in length.
- This model meets RoHS compliance standards ensuring environmental safety.
- The device is designed as a single configuration TRIAC for bidirectional AC control.
Product Description
WeEn Semiconductors Co., Ltd BT137X-600D,127 TRIAC is a high-quality bidirectional thyristor designed for AC switching and control applications. It features a through hole TO-220 package with 3 pins, making it suitable for robust mounting in industrial and consumer electronics. Rated at an average on-state current of 8A and a repetitive peak reverse voltage of 600V, this device ensures reliable operation within harsh electrical environments.
Designed to trigger with a gate voltage of 1.5V and a gate current of 10mA, the BT137X-600D,127 provides precise control of alternating currents. Its maximum operating temperature of 125°C allows for usage in demanding ambient conditions ranging from -40°C upwards, thus supporting a wide range of industrial, HVAC, manufacturing, and home appliance applications.
The unit boasts a surge current rating of 71A, enabling it to handle transient current spikes without damage. Compact dimensions of 9.3mm height and 10.3mm length provide flexibility for integrated circuit designs without compromising performance. This TRIAC complies with RoHS standards, affirming its environmentally conscious manufacturing process and materials.
Applications include motor speed control, light dimming, heater control, and general AC load switching where efficient and sensitive control is critical. This model's straightforward single configuration suits diverse circuit designs, making it a versatile solution for electronic component needs.
The device features a 3-pin TO-220 through hole package for secure mounting. Rated average on-state current is 8A, suited for various AC load demands. Maximum repetitive peak reverse voltage is 600V, ensuring high voltage tolerance.
Gate trigger voltage is low at 1.5V for energy-efficient activation. RoHS compliant manufacturing ensures environmental safety and regulatory conformity.
This product is ideal for engineers and manufacturers requiring reliable semiconductor components for AC power control systems. EnvMart offers this model as part of its comprehensive semiconductor product range, providing engineered solutions for electronics and industrial automation.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum repetitive peak reverse voltage (VDRM) of this TRIAC is 600V.
This model has a rated average on-state current of 8A.
The maximum gate trigger voltage for this TRIAC is 1.5V.
The surge current rating of this TRIAC is 71A, allowing it to handle transient current spikes.
The dimensions of this model are approximately 9.3mm in height and 10.3mm in length.
This TRIAC operates reliably within an ambient temperature range of -40°C to 125°C.
This model features a TO-220 package type for through hole mounting.
Yes, this TRIAC meets RoHS compliance standards, ensuring environmental safety.
The device is designed as a single configuration TRIAC for bidirectional AC control.
This TRIAC is suitable for applications such as motor speed control, light dimming, heater control, and general AC load switching.
The maximum gate trigger current for this model is 10mA.
This TRIAC has a total of 3 pins.
