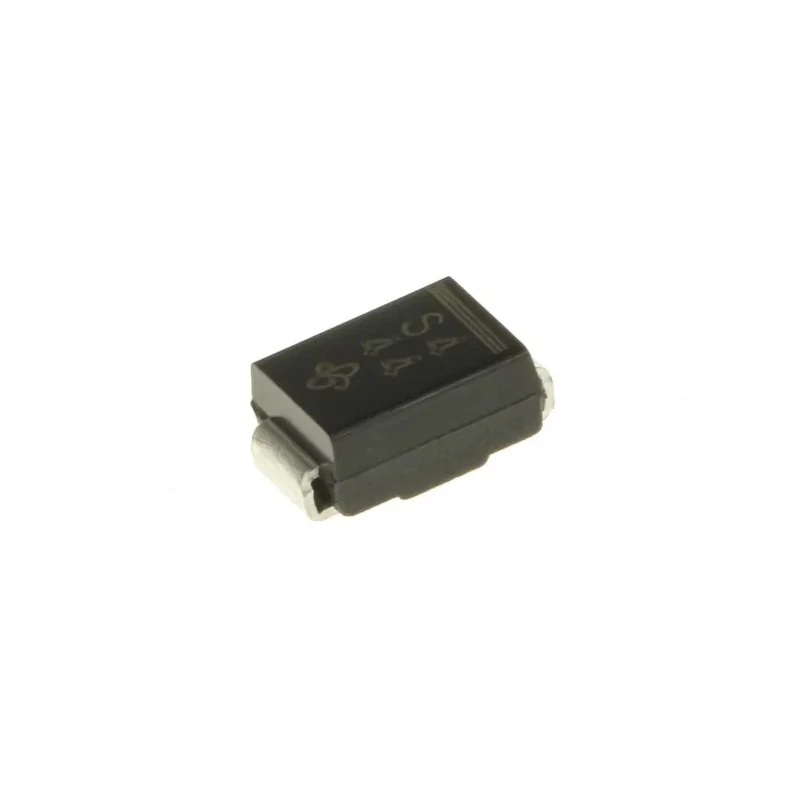

Vishay 40 V 2 A Surface Mount Schottky Diode Single 2-Pin DO-214AA SS24-E3/52T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Length | 4.7mm |
| Model | SS24-E3/52T |
| Width | 3.8mm |
| Mount Type | Surface |
| Series | SS24 |
| Maximum Operating Temperature | 125°C |
| Package Type | DO-214AA |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 400μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 75A |
| Maximum Forward Voltage Vf | 0.5V |
Key Features
- High performance Schottky rectifier with low forward voltage drop.
- Surface mount package suitable for automated PCB assembly.
- Single diode configuration optimized for fast switching applications.
- Maximum continuous forward current of 2 amps.
- Peak reverse repetitive voltage of 40 volts and low peak reverse current of 400 microamperes.
- Operating temperature range from -65°C to 125°C for versatile environmental use.
- Compact dimensions of 4.7 mm length and 3.8 mm width facilitate space-saving design.
- Fast switching action reduces power loss in electronic circuits.
Product Description
Vishay SS24-E3/52T is a high performance surface mount Schottky diode designed for efficient rectification in electronic circuits. It features a single diode configuration with a voltage rating of 40 V and a current rating of 2 A. Packaged in a compact 2-pin DO-214AA form factor, this diode supports fast switching operations suitable for power electronics and semiconductor applications.
This diode offers low forward voltage drop of 0.5 V, which improves energy efficiency by minimizing conduction losses. The maximum operating temperature extends up to 125°C, while the minimum operating temperature is -65°C, enabling deployment in diverse industrial, electronics manufacturing, and commercial environments.
The peak reverse repetitive voltage is 40 V with a low peak reverse current of 400 μA, ensuring stable performance under switching conditions. The peak non-repetitive forward surge current can reach 75 A, allowing tolerance of transient surges in circuits. The compact size with length 4.7 mm and width 3.8 mm suits high density PCB layouts.
This Vishay Schottky rectifier is ideal for uses including power supply circuits, voltage clamping, high-speed switching, and freewheeling diode applications in industrial and commercial electronics. Its reliable semiconductor technology ensures long operational life and robust circuit protection.
High performance Schottky rectifier with low forward voltage drop. Surface mount package for automated PCB assembly. Single diode configuration for fast, efficient switching. Maximum continuous forward current of 2 A. Peak reverse repetitive voltage of 40 V and low reverse current.
Wide operating temperature range from -65°C to 125°C. Compact dimensions of 4.7 mm by 3.8 mm. Peak forward surge current of 75 A for transient tolerance. Suitable for power electronics, voltage clamping, and freewheeling applications.
Explore more semiconductor and electronic components in the Vishay range at EnvMart for reliable solutions across industrial, laboratory, and manufacturing sectors.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this diode is 2 A.
The peak reverse repetitive voltage rating is 40 V.
This model has dimensions of 4.7 mm in length and 3.8 mm in width.
The operating temperature range extends from -65°C to 125°C.
It comes in a surface mount package, specifically the DO-214AA type.
The peak non-repetitive forward surge current can reach up to 75 A.
The maximum forward voltage drop is 0.5 V.
The peak reverse current is 400 μA.
This diode has a single diode configuration.
It is suitable for power supply circuits, voltage clamping, high-speed switching, and freewheeling applications.
The brand is Vishay and the country of origin is India.
Key features include low forward voltage drop, fast switching capabilities, and a compact surface mount design.
