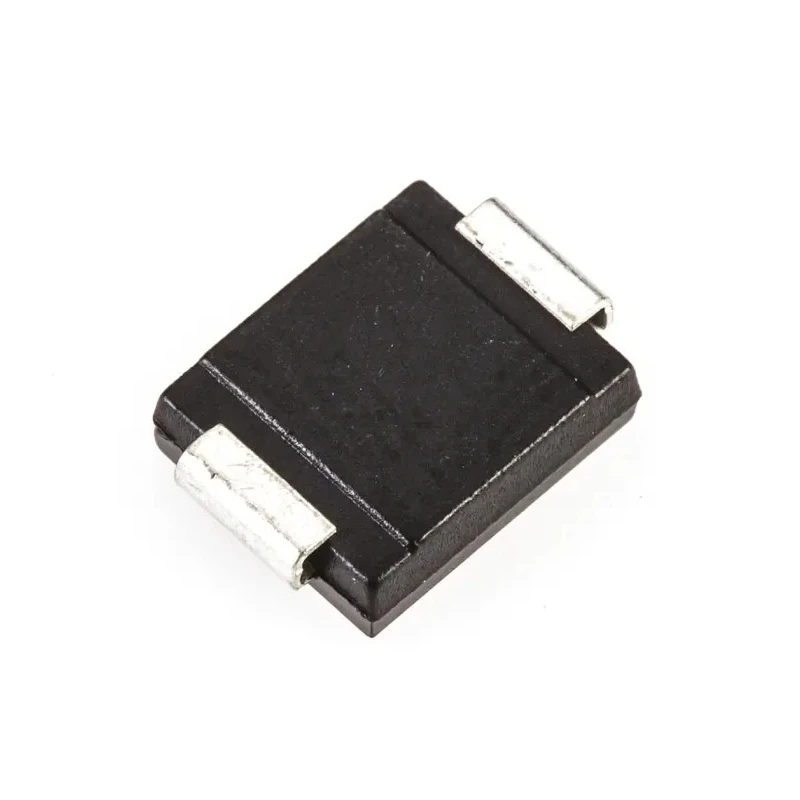

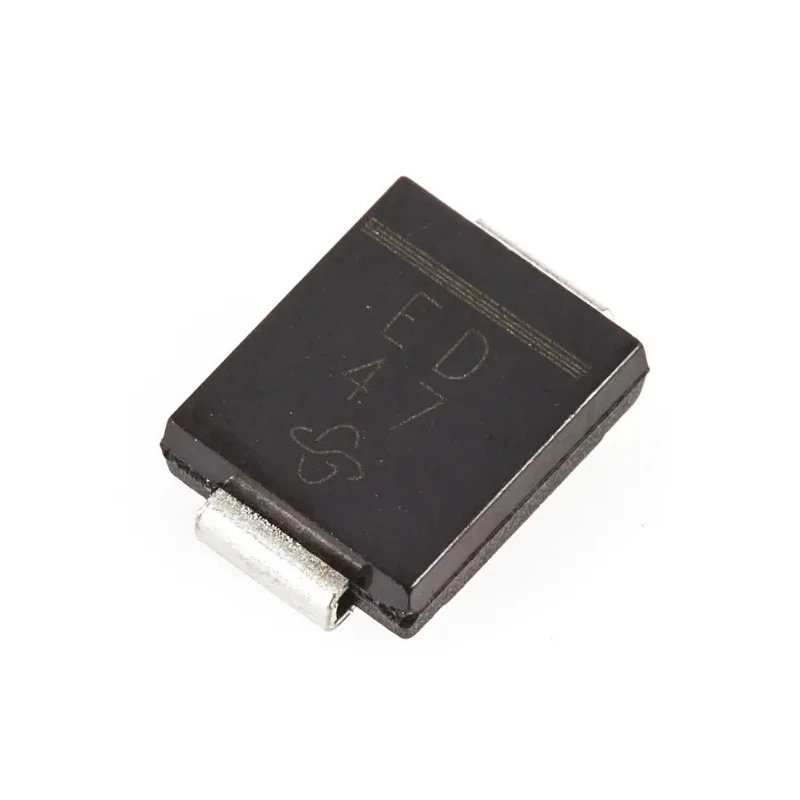

Vishay General Purpose 200 V 3 A Single Diode 2-Pin DO-214AB Package ES3D-E3/9AT

Vishay ES3D-E3/9AT is a high performance general purpose diode housed in a compact DO-214AB (SMC) package designed for surface mount applications. It supports a maximum continuous forward current of 3 A and a peak reverse repetitive voltage rating of 200 V, making it suitable for various industrial and electronic circuit rectification tasks.

This diode features an ultrafast reverse recovery time of 20 ns and a low forward voltage drop of 900 mV, contributing to high efficiency and low switching losses in power supplies and inverters. Its glass passivated chip junction enhances device reliability and electrical performance.

Mechanical specifications include a case height of 2.42 mm, length of 7.11 mm, and width of 6.22 mm. It is built with matte tin-plated leads that comply with J-STD-002 for solderability. The device is rated for solder dip at 275 °C for a maximum of 10 seconds, ensuring durability during assembly processes.

Typical applications include high frequency rectification and freewheeling in switching mode converters, consumer electronics, computer hardware, and telecommunication equipment. Its robust construction and solderable terminals allow for efficient and reliable integration into printed circuit boards.

The diode operates reliably between -55°C minimum and 150°C maximum operating temperatures, meeting the demanding requirements of automotive and industrial environments. The polarity indication via a colour band on the package simplifies correct installation.

The diode offers ultrafast reverse recovery time suitable for high frequency applications. It features a low forward voltage drop for improved efficiency. The package includes 2 pins and the device supports surface mount technology.

Designed with glass passivated chip junction for enhanced reliability. It withstands high forward surge current up to 100 A. The diode operating temperature ranges from -55°C to 150°C. Solder dip maximum temperature is 275 °C for up to 10 seconds.

Terminals are matte tin-plated and meet J-STD-002 solderability standards. Polarity is indicated by a colour band marking the cathode end. The device meets automotive standard AEC-Q101.

This diode is an essential component for industrial, laboratory, manufacturing, and telecommunications equipment power rectification needs. Explore more Vishay semiconductors and diode products at EnvMart for reliable and high-quality electronic components.
