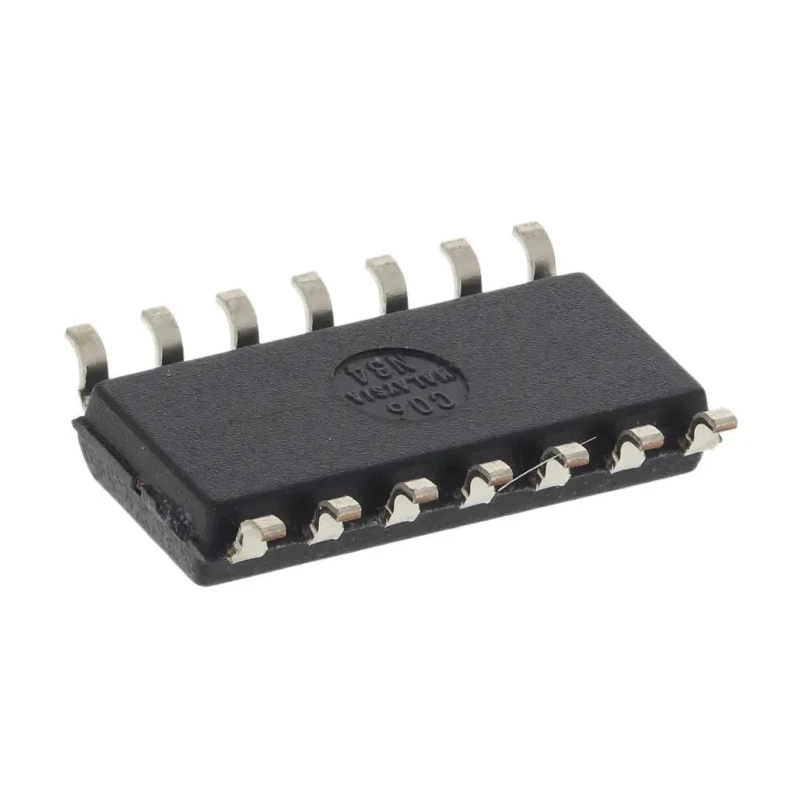

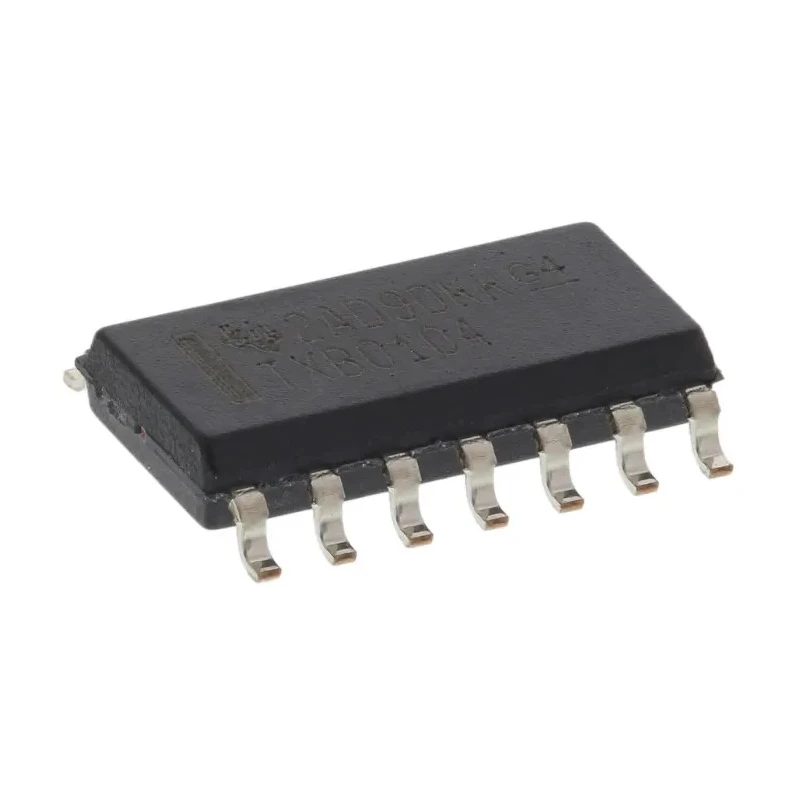

Texas Instruments Voltage Level Shifter, Voltage Level Translator 2 Channel, 14-Pin SOIC TXB0104D

Texas Instruments TXB0104D voltage level shifter is a semiconductor logic IC designed for precise voltage level translation in electronic circuits. This device provides 2 elements per chip within a compact 14-pin SOIC surface mount package, making integration efficient for PCB designs.

Supporting bi-directional translation, the TXB0104D IC is capable of interfacing between devices operating at voltages from 1.2V to 5.5V, enabling seamless communication across different power domains and logic levels commonly found in embedded systems, industrial automation, and consumer electronics.

Its electrical characteristics include a maximum propagation delay time of 4 nanoseconds, ensuring minimal latency in signal translation, and it supports three-state output, granting flexibility in bus-sharing applications with the capability to drive 20μA at low output and -0.02mA at high output. The product is designed to operate reliably in harsh temperature environments from -40°C to 85°C, conforming to industrial-grade applications.

The TXB0104 series devices are surface mount parts with standardized footprints (SOIC package), which simplifies manufacturing processes. The chip is produced in Malaysia and does not carry automotive standard certifications.

This voltage level translator IC is suited for use in industrial equipment control, digital logic interfacing, embedded systems, and other electronic instruments requiring reliable level shifting to maintain signal integrity and device compatibility.

The device supports bi-directional voltage translation for 2 channels. Maximum propagation delay time at CL is 4 nanoseconds. Operates within supply voltages ranging from 1.2V minimum to 5.5V maximum. Features 3-state output with maximum low-level and high-level output currents of 20μA and -0.02mA, respectively.

Compact 14-pin SOIC surface mount package with length 8.65mm and height 1.58mm. Wide operating temperature range from -40°C to 85°C suitable for industrial environments. Voltage level translation function suited for interfacing different logic voltage families.

Designed in series TXB0104 with logic family as translator and logic function as voltage level translator. Explore more semiconductor Logic ICs and translator ICs suitable for your electronic design projects at EnvMart.
