onsemi 4 2-Input NOR Logic Gate 14-Pin TSSOP MC74HC02ADTR2G

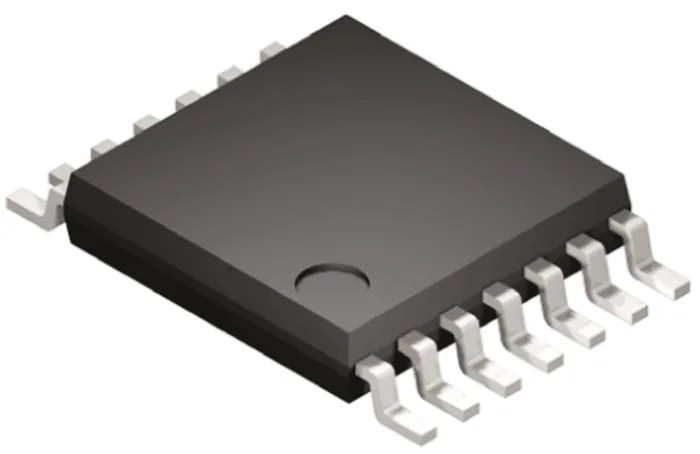

onsemi MC74HC02ADTR2G is a 4 output, 2-input NOR gate integrated circuit designed to provide high speed and efficient logic operation within power supply voltages from 2 to 6 volts. Packaged in a 14-pin Thin Shrink Small Outline Package (TSSOP), it is optimized for surface-mounted applications where board space is limited.

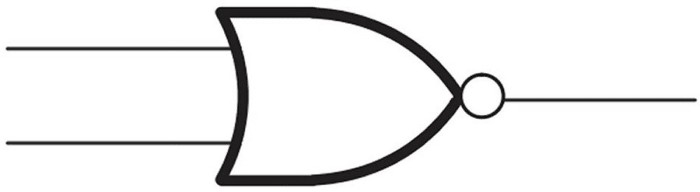

The device features four independent NOR gates with CMOS-compatible input logic and LSTTL-compatible outputs, allowing seamless interfacing in mixed technology logic circuits. It exhibits a maximum propagation delay time of 19 nanoseconds at specified load conditions, ensuring rapid signal processing suitable for timing-critical functions.

Operating temperatures range from -55°C to 125°C, making it suitable for harsh industrial environments and automotive applications, backed by the AEC-Q100 automotive standard qualification. The typical supply voltage range between 2 and 6 volts provides flexibility for low voltage digital electronics designs.

This logic gate’s compact form factor (5.1 mm length, 1.05 mm height) along with its surface mount design streamlines integration into modern assemblies, enhancing manufacturing productivity and reducing board complexity.

Four independent 2-input NOR gates for versatile logic operations. Wide operating voltage range of 2 to 6 volts compatible with CMOS logic. Low propagation delay ensures high speed performance. Qualifies under the automotive AEC-Q100 standard for reliability.

Surface mount TSSOP 14-pin package saves PCB real estate. Operates reliably across a wide temperature range from -55°C to 125°C. Input type: CMOS, output type: LSTTL for compatibility. Compact dimensions enable compact circuit designs.

Ideal for use in electronic, semiconductor, and automotive electronics manufacturing.

Whether designing industrial electronics, embedded systems, automotive controls, or general semiconductor applications, the onsemi MC74HC02ADTR2G Logic Gate offers robustness, efficiency, and integration ease. Explore more semiconductor components and logic ICs in EnvMart for your electronic development projects.
