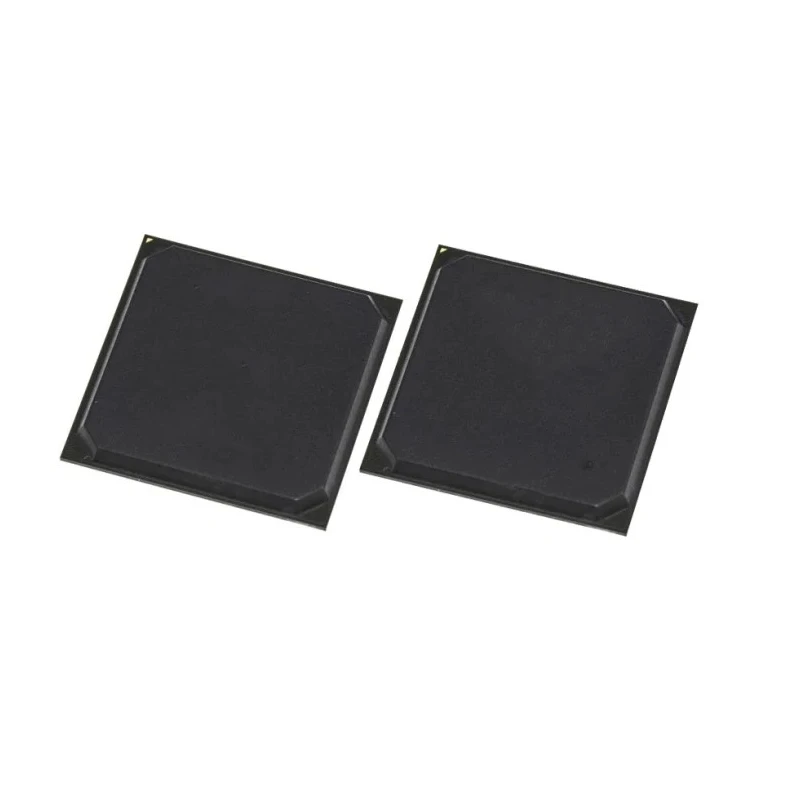

Microchip 16-Channel Push Pull Buffer 105-Ball 9 x 9 mm TFBGA HV53001-E/KWX
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Model | HV53001-E/KWX |
| Output type | Push Pull |
| Input Type | Power Down High Impedance |
| Maximum Operating Temperature | 175°C |
| Package Type | 105-Ball 9 x 9 mm TFBGA |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 16 |
| Standards/Approvals | RoHS |
| Maximum Supply Voltage | 5.5V |
| Logic Function | Driver |
| Minimum Supply Voltage | 2.7V |
Key Features
- Includes an integrated high voltage driver with return-to-zero and high impedance capabilities.
- Features SPI interface supporting quad-latch 2-bit per channel architectures.
- Equipped with a DC/DC boost converter and power MOSFET enabling 2.7V to 5.5V input operation.
- Provides current sensor output and power-on reset functionality for reliable operation.
- Operates across a wide temperature range from -40°C to 175°C.
- Compliant with RoHS environmental standards ensuring safety and sustainability.
- Designed for versatile semiconductor driver applications requiring 16 output channels.
- Package dimension is 9 x 9 mm using TFBGA with 105 balls for compact PCB integration.
Product Description
The Microchip HV53001-E/KWX is a highly integrated 16-channel push pull buffer specifically designed in a compact 105-ball, 9 x 9 mm thin fine-pitch ball grid array (TFBGA) package. It combines three main blocks: a high voltage driver, an SPI interface, and a DC/DC boost controller equipped with a power MOSFET to deliver an efficient driver solution with wide voltage input range from 2.7V to 5.5V.
This device supports varied applications involving power and electronic semiconductor circuits that require precise driver signal management and enhanced current sensing capabilities. The SPI interface features a quad-latch 2-bit per channel architecture, enabling advanced digital communication and control for industrial, automotive, and consumer electronics use.
The HV53001-E/KWX includes a power-on reset function and current sensor output, optimizing reliability and system diagnostics. Its design accommodates operating conditions from extreme cold -40°C to high heat 175°C, suitable for rugged environments.
As a RoHS-compliant device, it meets contemporary regulatory and environmental standards for lead-free and hazardous substance reduction.
This push pull buffer package allows for easy integration on printed circuit boards due to its precise ball array and compact footprint, supporting space-sensitive electronic assemblies.
Integrated high voltage push pull driver with RTZ and Hi-Z capabilities. SPI interface with quad-latch 2-bit/channel architecture. DC/DC boost converter with power MOSFET operation from 2.7V to 5.5V. Current sensor output and power-on reset ensure operational robustness.
Wide temperature operation range from -40°C to 175°C. RoHS compliant for environmental safety compliance. 16 output channels for versatile driver applications. 105-ball 9 x 9 mm TFBGA package dimension.
This device is ideal for use in electronics manufacturing, industrial control systems, automotive electronics, and semiconductor designs. Browse more Microchip Logic ICs and related semiconductor products on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for the HV53001-E/KWX is 5.5V.
This model comes in a 105-ball, 9 x 9 mm TFBGA package type.
It operates across a wide temperature range from -40°C to 175°C.
This device features 16 output channels.
The output type of the HV53001-E/KWX is push pull.
Yes, it is RoHS compliant, ensuring it meets environmental safety standards.
It supports a power down high impedance input type.
The logic function of the HV53001-E/KWX is as a driver.
It includes a power-on reset function and a current sensor output for enhanced reliability.
The minimum supply voltage for the HV53001-E/KWX is 2.7V.
This model features an SPI interface supporting a quad-latch 2-bit per channel architecture.
It is suitable for applications in electronics manufacturing, industrial control systems, automotive electronics, and semiconductor designs.
