Molex DuraClik Series Right Angle Surface PCB Header 5 Contacts 2mm Pitch 1 Row Shrouded 5023520500

Free Delivery in India | Lowest Global Shipping Charges

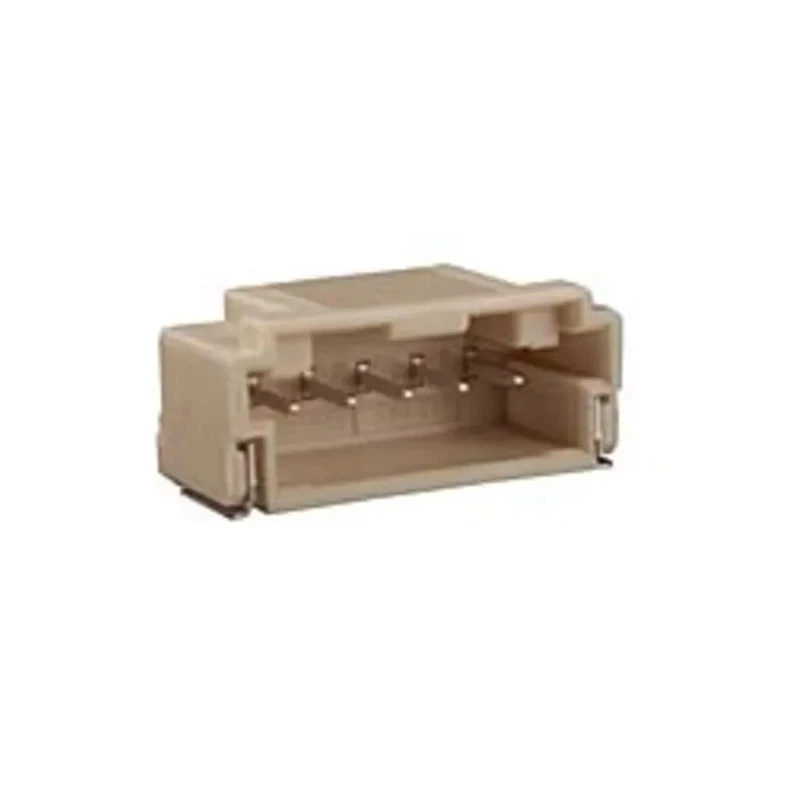

Molex DuraClik Series Right Angle Surface PCB Header 5 Contacts 2mm Pitch 1 Row Shrouded 5023520500

Name: Molex DuraClik Series Right Angle Surface PCB Header 5 Contacts 2mm Pitch 1 Row Shrouded 5023520500
Brand: Molex
SKU: 214902
Price: 1.24 USD
Availability: InStock



Category PCB Header Brand Molex Condition New

Specifications

Country of Origin	Germany
Voltage	125V
Brand	Molex
Orientation	Right Angle
Current	3A
Mount Type	Surface
Housing Material	Polyamide
Contact Material	Copper Alloy
Series	DuraClik
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	1
Pitch	2mm
Contact Plating	Tin
Number of Contacts	5
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

Designed for a 2mm pitch spacing between contacts.
Current rating of 3A suitable for low power electronic applications.
Constructed with polyamide housing for durability and insulation.
Shrouded and right angle orientation ensures reliable surface mounting.
Contacts made from copper alloy with tin plating for corrosion resistance.
Temperature operating range from -40°C to 105°C suitable for diverse environments.
Male contact gender with solder termination for PCB assembly.
Single-row configuration allows compact and efficient use of PCB space.

Product Description

Molex 5023520500 DuraClik Series right angle surface PCB header is engineered for professional wire-to-board connection applications. This component features a single row of five male contacts with a precise 2mm pitch. The housing is made of sturdy polyamide material for electrical insulation and mechanical strength, complemented by a shrouded design that enhances contact protection and alignment during installation.

The contacts are fabricated from copper alloy, plated with tin to deliver excellent conductivity while resisting corrosion. Rated for a current of 3 amperes and voltage up to 125 volts, this PCB header is suitable for a variety of consumer and industrial electronic equipment, including telecommunications, computing, and control systems.

Its surface mount design facilitates easy implementation on printed circuit boards in right angle orientation, optimizing board layout and reducing footprint. It is rated for operation within temperature extremes from -40°C to 105°C, making it reliable for harsh environments and temperature-sensitive applications.

The solder termination type ensures robust mechanical and electrical connections on PCB assemblies. This connector does not carry specific certifications but complies with the expected industrial standards for electronic component performance.

2mm pitch spacing for precise contact layout. 3A current rating for low power circuits. Polyamide housing for durability. Right angle, shrouded surface mount design. Copper alloy contacts with tin plating. 125V maximum voltage rating.

Operating temperature range of -40°C to 105°C. Solder termination for reliable PCB solder joints. Single row with 5 male contacts.

This product is made in Germany and intended for use in electronics manufacturing, industrial control systems, telecommunications equipment, and other applications requiring reliable PCB connections. Explore more from Molex and discover comprehensive solutions in PCB Headers and wired connectors at EnvMart.
