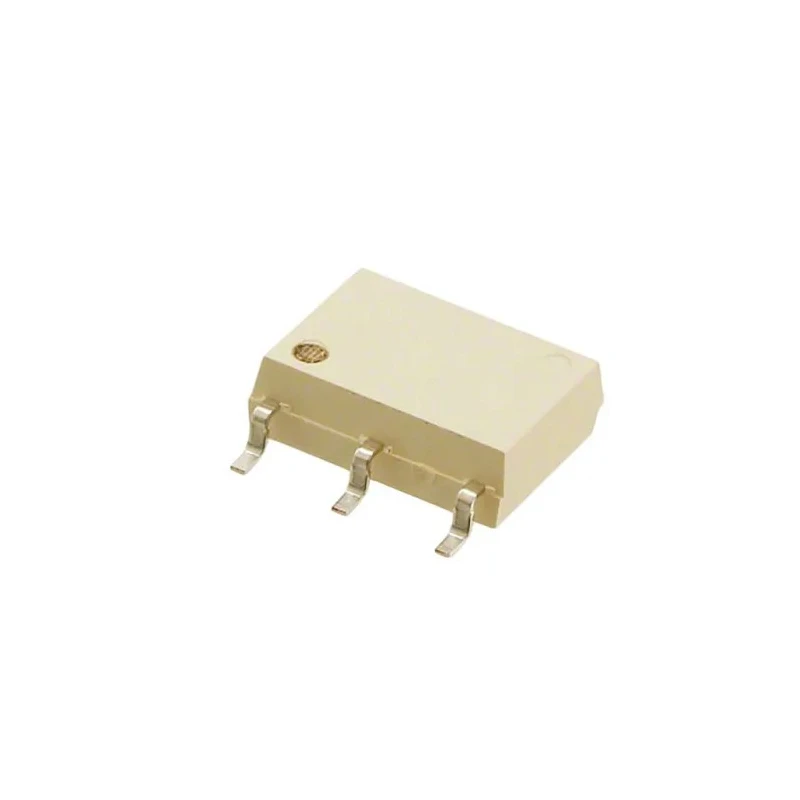

Toshiba Optocoupler Surface Mount 6-Pin SOP MOSFET Output TLP3100(TP,F)

Toshiba TLP3100(TP,F) optocoupler is a high-performance electronic component designed for industrial and electronic circuit applications requiring reliable isolation and efficient switching. Featuring a surface mount 6-pin SOP package and MOSFET output, this device provides excellent electrical isolation and fast response suitable for controlling switches, relays, and signal transmission within consumer electronics, industrial machinery, and HVAC systems.

This optocoupler operates with a maximum forward voltage of 1.48 V and supports a maximum input current of 30 mA, making it suitable for low-power control applications. The isolation voltage rating of 1500 V AC ensures robust protection between input and output circuits, critical in industrial environments requiring noise reduction and safety.

Engineered for durability, the component operates reliably between -40°C and 85°C ambient temperatures, accommodating harsh environmental conditions often experienced in manufacturing and electronic equipment. The typical rise and fall times of 1.5 ms and 0.1 ms respectively, enable efficient and rapid switching capabilities for demanding electronic control applications.

Packaged in a standard 6-pin SOP surface mount package, the TLP3100(TP,F) enables compact, lightweight assembly on printed circuit boards, facilitating integration into complex electronics designs. Compliance with UL 1577 and CSA Component Acceptance Service No.5A standards assures the product meets stringent international quality and safety requirements.

Surface mount 6-pin SOP package provides compact footprint and ease of PCB mounting. MOSFET output enables low leakage and high-speed switching performance. High isolation voltage of 1500 V AC ensures safety and signal integrity.

Wide operating temperature range from -40°C to 85°C suitable for industrial use. Typical rise time of 1.5 ms and fall time of 0.1 ms supports fast response times. Input maximum forward voltage rating of 1.48 V ensures low power dissipation.

Certified to UL 1577 and CSA standards for quality assurance. Single channel optocoupler ideal for signal isolation applications.

The Toshiba TLP3100(TP,F) is ideal for use in industrial automation, consumer electronics, power supply protection, and signal isolation across manifold electrical and electronic systems.
