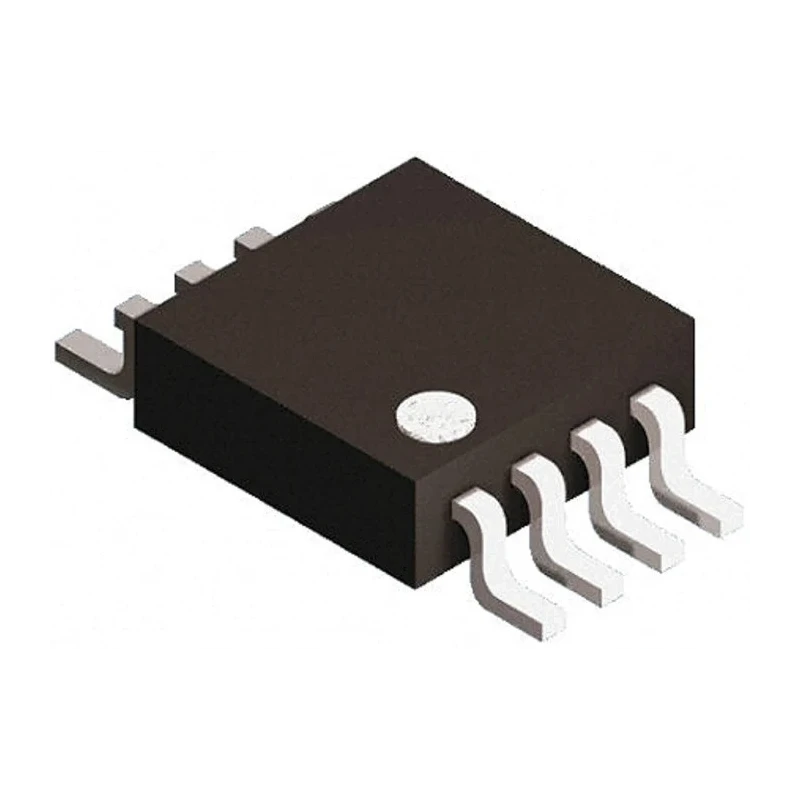

Toshiba 1 Flip Flop IC CMOS, 8-Pin SOT-765 TC7WH74FK
Specifications
| Country of Origin | India |
|---|---|
| Brand | Toshiba |
| Height | 700μm |
| Length | 2mm |
| Model | TC7WH74FK |
| Mount Type | Surface |
| Output type | CMOS |
| Series | TC7WH74FK |
| Input Type | TTL, CMOS |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-765 |
| Minimum Operating Temperature | -40°C |
| Polarity | Non-Inverting |
| Trigger Type | Positive Edge |
| Pin Count | 8 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | CMOS |
| Minimum Supply Voltage | 2V |
| Maximum Propagation Delay Time @ CL | 12ns |
| Clock frequency | 70MHz |
| Balanced propagation delays | tPLH ≈ tPHL |
| Flip-Flop Type | D Flip-Flop |
Key Features
- Operates within a wide voltage range from 2V to 5.5V.
- Logic family is CMOS with TTL and CMOS input compatibility.
- Offers a maximum clock frequency of 70 MHz.
- Features a D Flip-Flop type with positive edge trigger.
- Compact 8-pin SOT-765 surface-mount package.
- Supports a wide operating temperature range from -40°C to 125°C.
- Maximum propagation delay time is 12 nanoseconds at capacitive load.
- Design includes high noise immunity with 28% VCC minimum input thresholds.
Product Description
Toshiba TC7WH74FK is a 1 flip flop IC belonging to the CMOS logic family, housed in a compact 8-pin SOT-765 surface-mount package. It operates with a supply voltage ranging from 2.0 to 5.5 volts and delivers high-speed switching suitable for advanced digital electronics.
This device features a D flip-flop type with a positive edge trigger and supports both TTL and CMOS input types. The maximum clock frequency is 70 MHz, making it well-suited for timing, counting, and storage applications in electronic circuits.
Engineered for robustness, the TC7WH74FK supports a wide operating temperature range from -40°C up to 125°C and complies with automotive standard AEC-Q100, ensuring reliability in automotive and industrial environments.
Power consumption is minimal with a maximum ICC of 2.0 µA at 25°C, alongside balanced propagation delays (tPLH ≈ tPHL) for precise timing. The high noise immunity thresholds of 28% VCC minimum protect the device against common electromagnetic interference.
The small 2 mm length and 700 µm height package optimize board space and facilitate surface mounting on PCBs. This flip flop IC is ideal for use in industrial, automotive, consumer electronics, and communication equipment.
Operates over a wide voltage range from 2V to 5.5V. Supports CMOS logic with TTL input compatibility. Maximum clock frequency of 70 MHz suitable for fast digital circuits. Positive edge triggered D-type flip-flop architecture.
Complies with AEC-Q100 automotive standard for enhanced durability. Low power dissipation ensures energy efficiency. Balanced propagation delays for reliable performance. High noise immunity for stable operation in noisy environments.
Compact 8-pin surface-mount package for space-saving PCB designs.
This product complements a wide range of semiconductor components and logic ICs used in the design and manufacture of electronics and automotive systems. Browse the Electronics & Electricals category on EnvMart for similar high-quality components from Toshiba and other trusted brands.
Explore more products in our Flip Flop ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a voltage range from 2.0 to 5.5 volts.
The maximum clock frequency is 70 MHz, suitable for fast digital circuits.
It features a D flip-flop type with a positive edge trigger.
The maximum propagation delay time is 12 nanoseconds at capacitive load.
It supports both TTL and CMOS input types.
This model comes in a compact 8-pin SOT-765 surface-mount package.
It supports an operating temperature range from -40°C to 125°C.
The TC7WH74FK complies with the AEC-Q100 automotive standard.
The height is 700 μm and the length is 2 mm.
The maximum ICC is 2.0 µA at 25°C, indicating low power dissipation.
It features high noise immunity with a minimum input threshold of 28% VCC.
This flip flop IC contains one element per chip.
