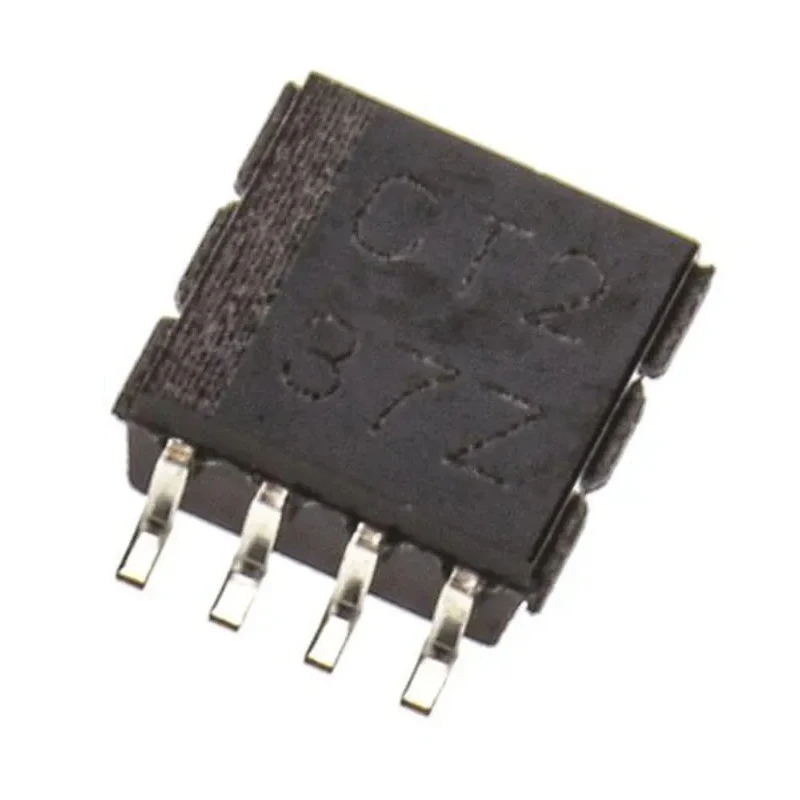

Toshiba 1 Flip Flop IC CMOS Logic LS-TTL Input C2MOS Output 29MHz Clock Frequency Surface Mount SSOP 8-Pin TC7W74FK(TE85L,F)

Toshiba TC7W74FK(TE85L,F) is a single flip-flop IC belonging to the L-MOS high-speed series, combining the speed of LSTTL devices with the low power consumption benefits of CMOS technology. This device operates at a clock frequency of 29MHz and supports LS-TTL input and C2MOS output.

The IC is housed in an 8-pin SSOP surface mount package, making it suitable for compact electronic assemblies. It operates efficiently over a wide voltage range from 2V to 6V and supports a maximum propagation delay time of 32ns, ensuring fast performance.

Designed for industrial and electronic applications, the TC7W74FK(TE85L,F) provides high noise immunity along with output drive capability to handle up to 5 LSTTL loads. Its operating temperature range of -40°C to 85°C allows deployment in harsh or varying environmental conditions.

This semiconductor is ideal for use in logic circuits within telecommunications, industrial electronics, embedded systems, and other high-speed switching applications requiring reliable flip-flop functionality.

High-speed operation with a 29MHz clock frequency. Wide supply voltage range from 2V to 6V. Low power dissipation suitable for power-sensitive devices. Surface mount 8-pin SSOP package for space-constrained designs. Robust operation from -40°C to 85°C.

High noise immunity with output drive for 5 LSTTL loads. Single Type D flip-flop element per chip.

The TC7W74FK(TE85L,F) is manufactured in Japan and adheres to applicable quality standards. It is ideal for use in semiconductor circuits requiring precise timing and logic control.
