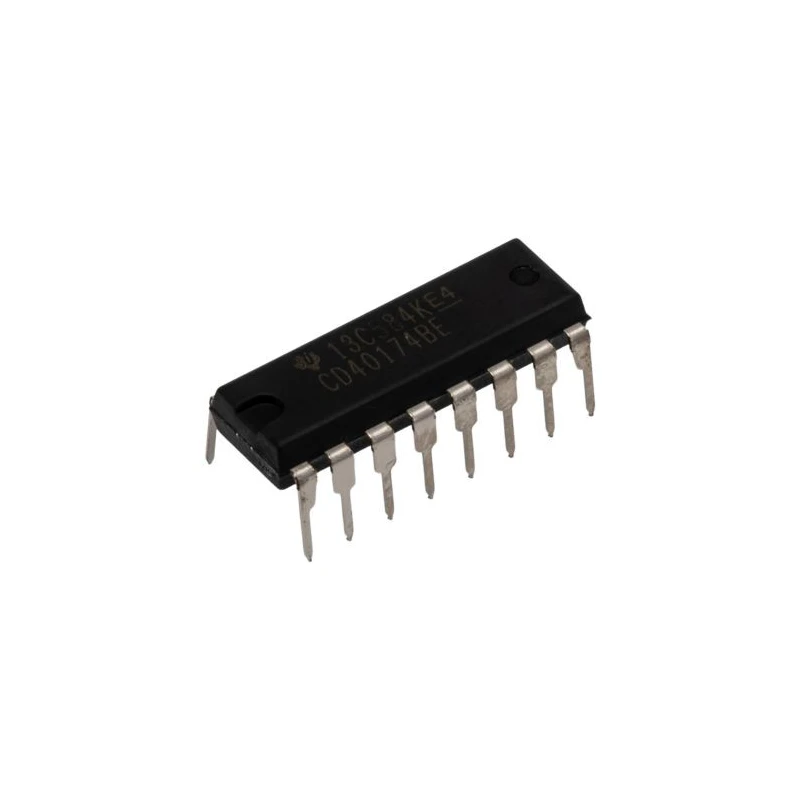

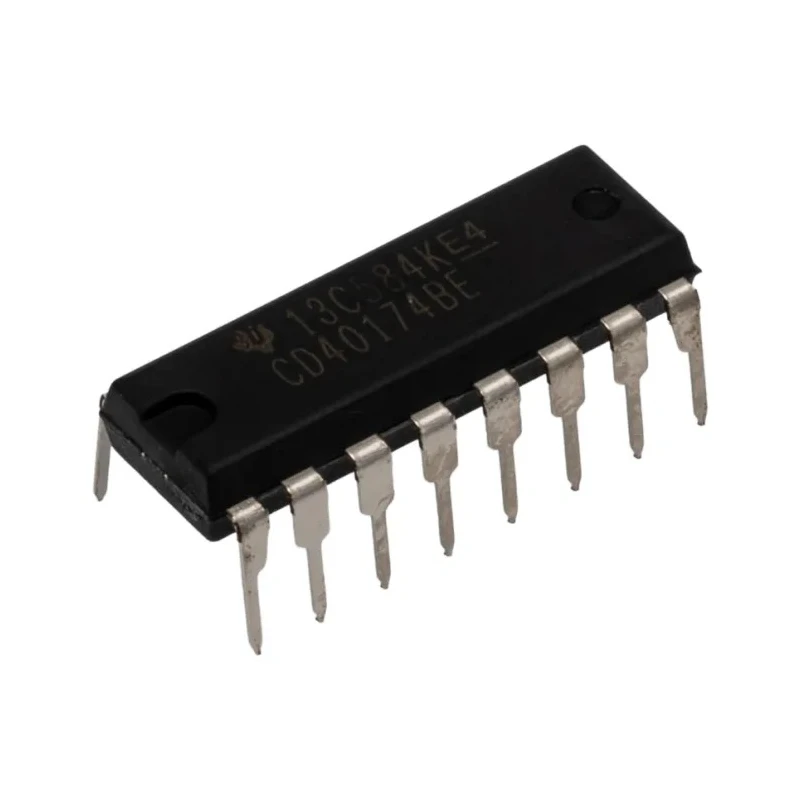

Texas Instruments 6 Flip Flop IC 4000 Series PDIP 16-Pin, 3 to 18V Operating Voltage CD40174BE

Texas Instruments CD40174BE is a high-performance 6-element D-type flip flop integrated circuit from the 4000 Series CMOS logic family, housed in a 16-pin PDIP package suitable for through-hole mounting. It operates over a wide supply voltage range from 3 to 18 volts and supports a maximum clock frequency of 16MHz with positive edge triggering and non-inverting inputs.

This device is engineered to operate reliably across an industrial temperature range from -55°C to 125°C, ensuring dependable performance under harsh environmental conditions. The maximum propagation delay time at the specified load capacitance is 100 nanoseconds, making it suitable for high-speed logic switching applications.

The CD40174BE flip flop IC integrates 6 independent D-type flip-flop elements, providing efficient logic storage and switching within digital circuits. Its 16-pin PDIP package facilitates ease of installation in through-hole PCB designs commonly used in industrial, electronic, and control system manufacturing environments.

The chip belongs to the CMOS 4000 series logic family, celebrated for low power consumption and robust electrical characteristics, making it ideal for use in electronic components and electronic circuit design projects spanning prototyping, instrumentation, and embedded systems development.

Wide supply voltage range from 3V to 18V suitable for versatile circuit requirements. Six D-type flip flop elements integrated on-chip for multi-functional logic operations. Positive edge triggering enhances signal interpretation accuracy at 16MHz clock frequency.

Industry-standard 16-pin PDIP packaging for compatibility with through-hole manufacturing. Temperature operating range from -55°C to 125°C ensures industrial grade durability. Propagation delay maximum of 100 nanoseconds supports high-speed switching demands.

Non-inverted polarity input facilitates straight logic integration. Conforms to 4000 series CMOS logic family specifications for consistent performance.

This product is suited for use in electronics manufacturing, testing equipment, industrial automation, embedded systems, and academic laboratories that require reliable logic ICs with multiple flip-flop capabilities. It aids in developing sequential logic circuits, counters, shift registers, and control systems.
