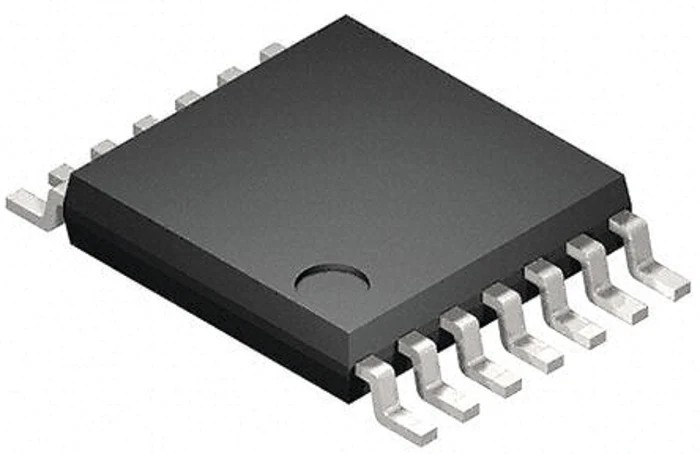

Toshiba 2 Flip Flop IC 74VHC CMOS 14-Pin TSSOP 2.0-5.5V 70MHz 74VHC74FT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Toshiba |
| Height | 1mm |
| Length | 5mm |
| Model | 74VHC74FT |
| Mount Type | Surface |
| Output type | CMOS |
| Series | 74VHC74FT |
| Input Type | TTL, CMOS |
| Maximum Operating Temperature | 125°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Polarity | Inverting |
| Trigger Type | Positive Edge |
| Pin Count | 14 |
| Number of Elements per Chip | 2 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | 74VHC |
| Minimum Supply Voltage | 2V |
| Maximum Propagation Delay Time @ CL | 12ns |
| Clock frequency | 70MHz |
| Balanced propagation delays | tPLH ≈ tPHL |
| Flip-Flop Type | D Flip-Flop |
Key Features
- Operates with a wide supply voltage range from 2.0 V to 5.5 V.
- High clock frequency of 70 MHz suitable for fast switching applications.
- Features 2 D Flip-Flop elements per chip in a compact 14-pin TSSOP package.
- Supports positive edge triggering with inverting polarity inputs.
- Wide operating temperature range from -40°C to 125°C for robust industrial use.
- Ensures low power dissipation typical ICC of 4.0 μA at 25°C.
- High noise immunity with VNIH and VNIL at 28% of VCC minimum.
- Balanced propagation delays with maximum 12 ns at typical load conditions.
Product Description
Toshiba 74VHC74FT is a high-speed CMOS D Flip-Flop IC designed using advanced silicon gate C2MOS technology. This device offers the performance of bipolar Schottky TTL while maintaining the low power consumption characteristics of CMOS technology. It is packaged in a compact 14-pin TSSOP form factor and is ideal for integration in compact electronic assemblies.
The IC operates over a wide supply voltage range from 2.0 V to 5.5 V, making it versatile for interfacing 3 V and 5 V logic systems. It supports a clock frequency of up to 70 MHz, making it suitable for high-speed logic applications in industrial, manufacturing, and electronic equipment.
The chip contains 2 D Flip-Flop elements with positive edge triggering. The inputs have inverting polarity, and independent asynchronous clear and preset inputs allow flexible signal control. Input pins incorporate protection circuitry, enabling use in mixed voltage environments and preserving device longevity.
Designed to operate reliably in harsh conditions, the IC withstands a temperature range from -40°C to 125°C, making it suitable for automotive and industrial applications compliant with AEC-Q100 standards. The low power dissipation and high noise immunity ensure stable functionality in power-sensitive and noisy environments.
This device is compatible with standard 74-series logic families and can serve in applications such as digital memory elements, frequency division, and data storage circuits within industrial control and electronic systems.
Wide operating voltage range of 2.0 V to 5.5 V. Maximum clock frequency up to 70 MHz. D Flip-Flop positive edge triggered with 2 elements per chip. Package type: 14-pin TSSOP for surface mounting. Operating temperature range from -40°C to 125°C.
Low power dissipation with maximum ICC of 4.0 μA at 25°C. High noise immunity and balanced propagation delays. Input protection circuitry for voltage level tolerance. Automotive AEC-Q100 qualified for reliability.
Choose Toshiba 74VHC74FT for reliable, high-speed flip-flop logic IC solutions in industrial, automotive, and electronic design applications. Browse more Flip Flop ICs and semiconductor components from Toshiba and other leading brands on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates over a wide supply voltage range from 2.0 V to 5.5 V.
The maximum clock frequency is up to 70 MHz, making it suitable for high-speed applications.
This model contains 2 D Flip-Flop elements per chip.
It is packaged in a compact 14-pin TSSOP format for surface mounting.
The operating temperature range is from -40°C to 125°C, suitable for harsh environments.
It supports positive edge triggering with inverting polarity inputs.
The maximum propagation delay time is 12 ns at typical load conditions.
The typical ICC current is 4.0 μA at 25°C, indicating low power dissipation.
It is compliant with the AEC-Q100 standard for automotive applications.
It is compatible with standard 74-series logic families, making it versatile for various applications.
It supports TTL and CMOS input types, providing flexibility in interfacing.
The dimensions are 5 mm in length, 1 mm in height, and it has a pin count of 14.
