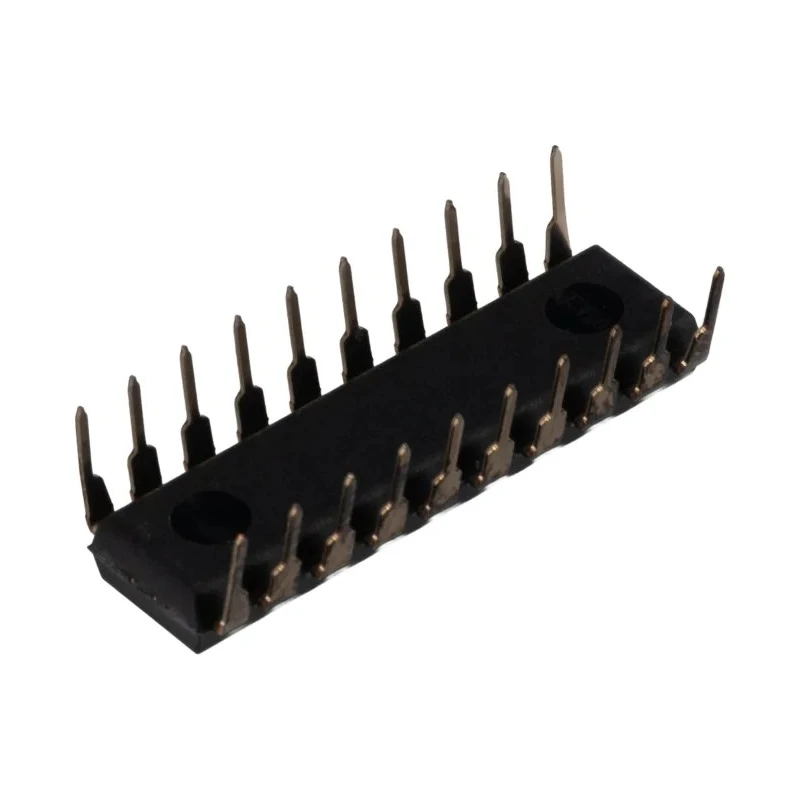

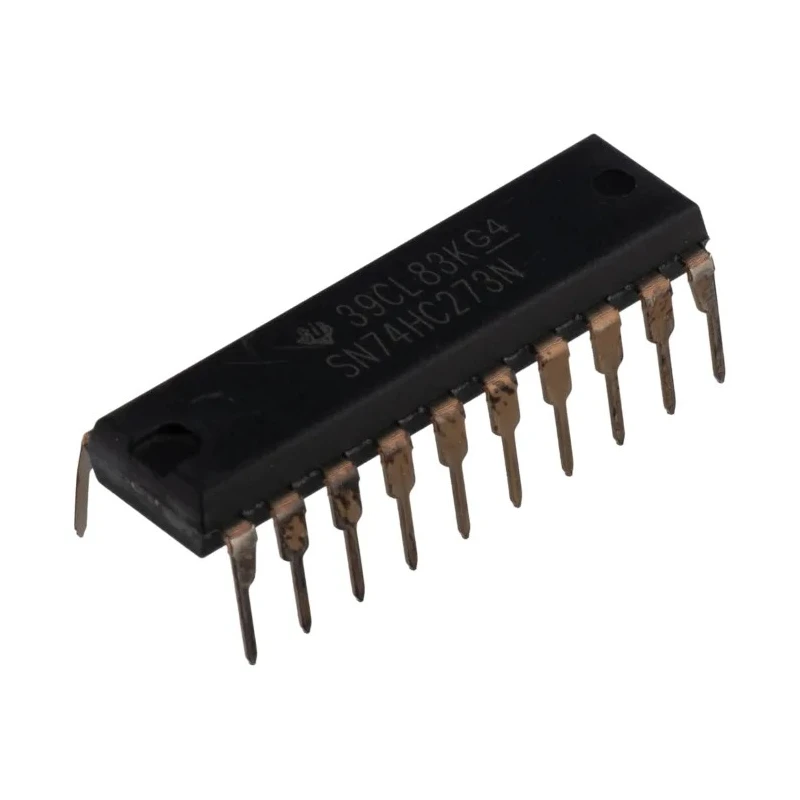

Texas Instruments 8 Flip Flop IC HC Logic Family TTL, 20-Pin PDIP SN74HC273N

Texas Instruments SN74HC273N is a high-speed CMOS 8 Flip Flop IC belonging to the HC logic family, offered in a 20-pin PDIP package. It is designed to provide efficient D-type flip-flop functions with positive edge triggering and TTL compatible outputs.

This device operates excellently in applications requiring synchronous storage of digital signals thanks to its 8 internal flip-flops, each capable of handling a single-ended input. It supports an operating voltage range from 2 to 6 volts and features a maximum clock frequency of 25 MHz, making it ideal for timing and control circuits in industrial, communication, and electronic instrumentation systems.

The SN74HC273N is mounted through-hole, enabling easy integration on printed circuit boards with standard dual in-line configurations. With operating temperatures from -40°C to 85°C, it is suitable for environments requiring robust thermal performance. It offers a maximum propagation delay of 34 nanoseconds at standard capacitive loading.

Compatibility with input CMOS and output CMOS logic levels allows seamless interfacing with a wide range of digital circuit families. The 20-pin PDIP form factor has dimensions approximately 24.33 mm in length and 4.57 mm in height, facilitating compact PCB layouts.

The SN74HC273N provides 8 D Flip-Flops with TTL output and single ended input. Operating voltage ranges from 2 to 6 volts for flexible power supply options. Maximum clock frequency is 25 MHz for high-speed digital applications.

Through hole mount type and PDIP package ensure reliable mechanical support. Device operates reliably between -40°C to 85°C temperature range. Propagation delay time is up to 34 nanoseconds under specified loads. Compatible with input CMOS and output CMOS logic levels.

Package dimensions are approximately 24.33 mm length and 4.57 mm height.

Ideal for use in electronic control systems, digital logic design, industrial automation, and various timing circuits, the SN74HC273N integrates seamlessly into complex digital systems needing reliable flip-flop functionality. Its robust specifications and proven silicon-gate CMOS technology ensure efficient, low-power operation.
