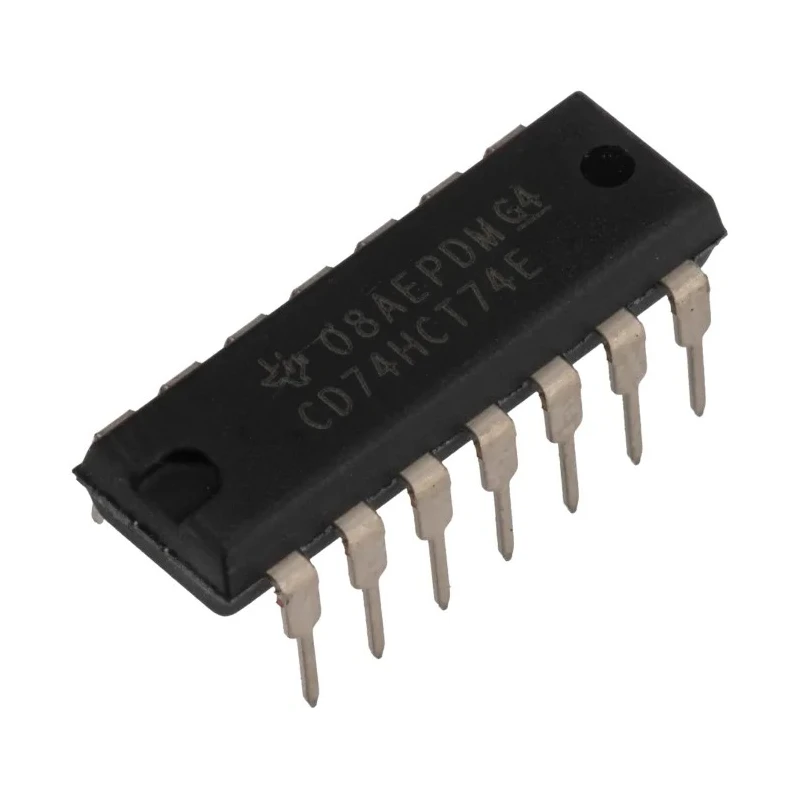

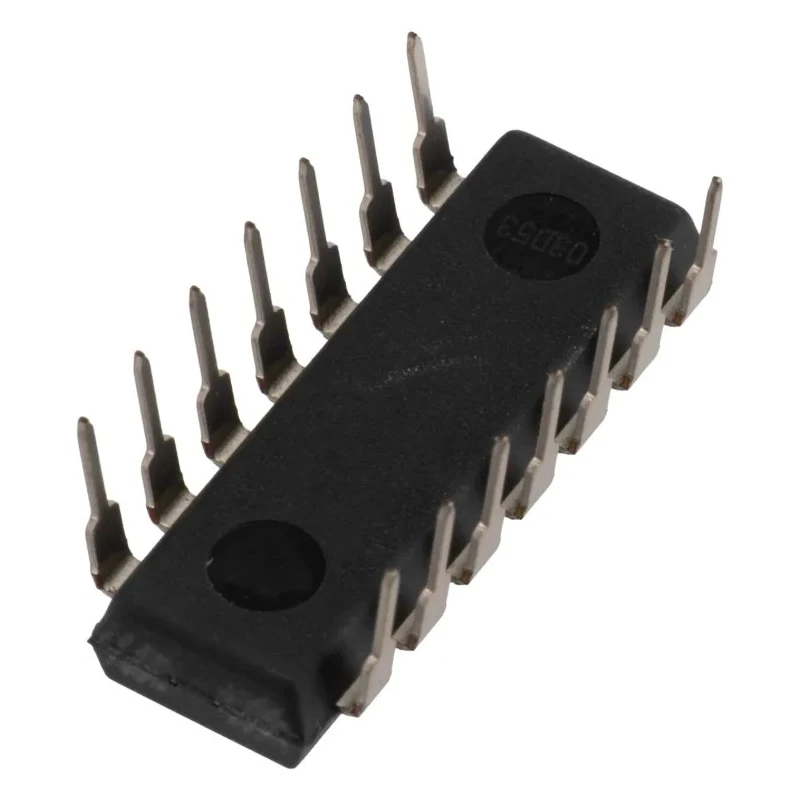

Texas Instruments 2 Flip Flop IC HCT, 14-Pin PDIP, 4.5 to 5.5V, 16MHz Clock Frequency CD74HCT74E

Texas Instruments CD74HCT74E 2 Flip Flop IC HCT in a 14-Pin PDIP package operates at a voltage range of 4.5 to 5.5 volts and a clock frequency of up to 16MHz. This high-speed CMOS logic integrated circuit features two D-type flip-flops on a single chip, supporting both inverting and non-inverting polarities with positive edge triggering.

Designed for through-hole mounting, this device is well-suited for a variety of industrial and commercial electronic applications, including digital systems requiring reliable flip-flop functionalities. The IC is fabricated using silicon gate CMOS technology, combining the operating speed of low-power Schottky TTL with the low power consumption of standard CMOS logic.

The CD74HCT74E provides robust performance across a wide operating temperature range from -55°C to 125°C and ensures signal integrity with a maximum propagation delay time of 53ns at specified load conditions. Its compatibility with TTL input levels and CMOS output enables seamless integration in mixed-logic environments.

With compact dimensions approximately 19.3mm in length and 4.57mm in height, the 14-pin PDIP package is widely used and easy to mount on PCBs. This flip-flop IC is ideal for applications in automation, control systems, digital signal processing, and logic circuit design, among others.

Features two D-type flip-flops per chip in a 14-pin PDIP package. Supports both inverting and non-inverting polarity with positive edge trigger. High-speed CMOS logic compatible with TTL input and CMOS output. Operating temperature range from -55°C to 125°C for reliable performance.

Maximum propagation delay time of 53ns at load condition. Through hole mounting type suitable for standard printed circuit boards. Compact size with dimensions approximately 19.3mm length and 4.57mm height. Ideal for use in digital circuits requiring flip-flop functionality in industrial and commercial electronics.
