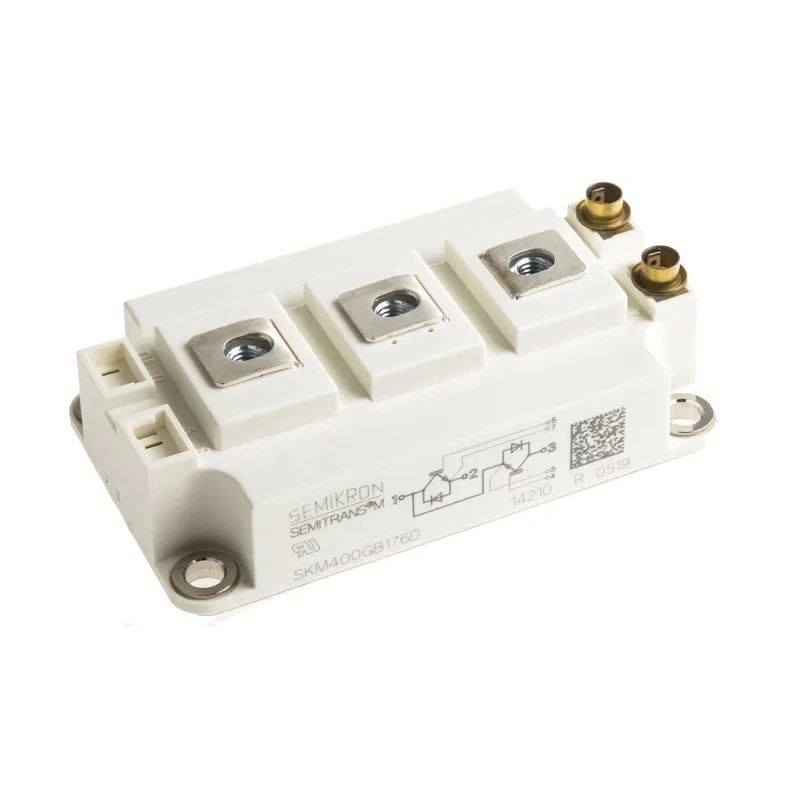

Semikron Danfoss N-Channel IGBT Module 430A 1700V 7-Pin SEMITRANS Panel SKM400GB176D

Semikron Danfoss SKM400GB176D N-Channel IGBT Module, model SKM400GB176D, delivers a robust 430A collector current and 1700V collector emitter voltage in a compact 7-pin SEMITRANS panel mount package. This dual IGBT module combines two series-connected IGBT devices ideal for half-bridge power switching applications.

The module is optimized for industrial use in motor drives, uninterruptible power supplies, and other power electronics systems requiring high efficiency and fast switching up to 12 kHz. It features a rugged insulated copper baseplate with Direct Bonded Copper technology for superior thermal management and durability.

The device supports a wide operating temperature range from -40°C to 150°C, ensuring reliable performance in harsh environments. With a maximum gate emitter voltage of 20 V and a maximum collector emitter saturation voltage of 2.4 V, it provides stable switching characteristics and high current capacity.

Physical dimensions are 106.4 mm length, 61.4 mm width, and 30 mm height, suitable for compact panel mounting arrangements. The module does not carry specific automotive or industry standards approvals but is built to high-quality semiconductor manufacturing standards.

The compact SEMITOP package facilitates installation in constrained spaces. Two high-current IGBT transistors connected in series enable efficient half-bridge circuit designs. Direct Bonded Copper insulated baseplate provides excellent thermal conductivity.

Supports switching frequencies up to 12 kHz for industrial and laboratory power electronics. Wide temperature operation from -40°C to 150°C for varied environment resilience. Robust 20 V gate voltage specification for firm electrical control.

Panel mount type eases system integration.

This Semikron Danfoss SKM400GB176D IGBT module is suitable for industrial, manufacturing, HVAC, and power electronics applications where high current switching capability and thermal robustness are required. Its design meets demanding semiconductor performance standards but lacks specific automotive certifications. For additional products and similar IGBT modules, explore the Electronics & Electricals > Semiconductor > IGBT Module category at EnvMart.
