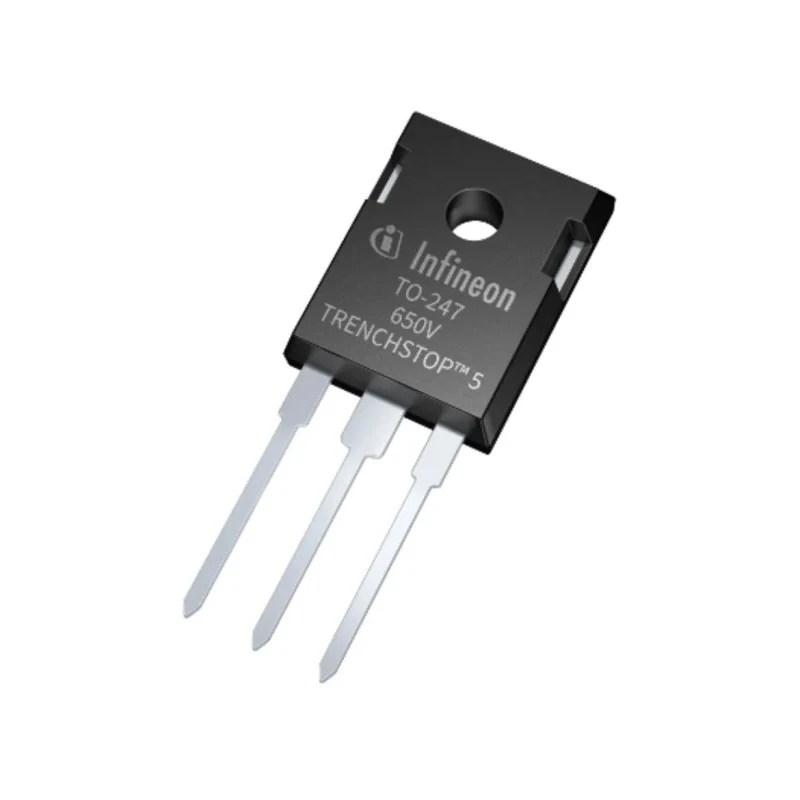

Infineon Type N-Channel IGBT 74A 650V 3-Pin TO-247 Through Hole AIKW40N65DF5XKSA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 5.21mm |
| Length | 42mm |
| Model | AIKW40N65DF5XKSA1 |
| Width | 16.13mm |
| Mount Type | Through Hole |
| Series | TrenchStop |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-247 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | AEC-Q101 |
| Pin Count | 3 |
| Maximum Continuous Collector Current Ic | 74A |
| Maximum Collector Emitter Voltage Vceo | 650V |
| Maximum Collector Emitter Saturation Voltage VceSAT | 1.6V |
| Automotive Standard | AEC-Q101 |
| Channel Type | Type N |
| Maximum Power Dissipation Pd | 250W |
| Maximum Gate Emitter Voltage VGEO | ±30 V |
Key Features
- Features advanced TrenchStop technology for enhanced performance and efficiency.
- Rated at a maximum continuous collector current of 74A with 650V collector emitter voltage.
- Capable of dissipating up to 250W power, supporting robust operation.
- 3-pin TO-247 package allows easy integration in through-hole assembly designs.
- Automotive qualified according to AEC-Q101 standards for reliability.
- Maximum gate emitter voltage ±30V ensures flexible control under diverse load conditions.
- Wide operational temperature from -40°C to 175°C for versatility.
- Low collector emitter saturation voltage (1.6V) minimizes switching losses.
Product Description
Infineon AIKW40N65DF5XKSA1 Type N-Channel IGBT delivers best-in-class switching efficiency and reliability for power electronics applications requiring robust performance. This device supports a maximum continuous collector current of 74A and operates at up to 650V collector emitter voltage, making it ideal for demanding circuits such as motor drives, inverters, uninterruptible power supplies, and induction heating.
Utilizing Infineon's TrenchStop F5 technology, this insulated-gate bipolar transistor (IGBT) offers enhanced electrical efficiency with low switching losses and reduced electromagnetic interference compared to traditional IGBT designs. Its 3-pin TO-247 package is designed for through-hole mounting, providing straightforward assembly and mechanical stability in industrial, automotive, and energy systems.
Features advanced TrenchStop technology for enhanced performance and efficiency. Rated at a maximum continuous collector current of 74A with 650V collector emitter voltage. Capable of dissipating up to 250W power, supporting robust operation.
3-pin TO-247 package allows easy integration in through-hole assembly designs. Automotive qualified according to AEC-Q101 standards for reliability. Maximum gate emitter voltage ±30V ensures flexible control under diverse load conditions.
Wide operational temperature from -40°C to 175°C for versatility. Low collector emitter saturation voltage (1.6V) minimizes switching losses.
The AIKW40N65DF5XKSA1 is particularly suited for industrial, energy, and automotive applications such as high-efficiency switching power supplies, motor control units, and renewable energy converters. Its compliance with AEC-Q101 standards assures reliability and quality for automotive-grade integration, while the substantial power dissipation and wide temperature operation range make it versatile for commercial and manufacturing environments.
Dimensions of the TO-247 package are 42mm length, 16.13mm width, and 5.21mm height. The three-pin design facilitates easy insertion and secure electrical connections in PCB layouts.
Browse more advanced IGBT solutions and Infineon semiconductor products in the EnvMart catalogue for your electronics and power management needs.
Explore more products in our IGBT Module category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous collector current for this model is 74A.
It operates at a maximum collector emitter voltage of 650V.
The dimensions of the TO-247 package are 42mm in length, 16.13mm in width, and 5.21mm in height.
It is capable of dissipating up to 250W of power.
The operational temperature range is from -40°C to 175°C.
This model is automotive qualified according to AEC-Q101 standards.
The maximum gate emitter voltage is ±30V.
It supports through-hole mounting, making it easy to integrate into designs.
It utilizes Infineon's advanced TrenchStop technology for enhanced performance and efficiency.
The TO-247 package has 3 pins.
The maximum collector emitter saturation voltage is 1.6V.
It is particularly suited for applications such as motor drives, inverters, uninterruptible power supplies, and induction heating.
