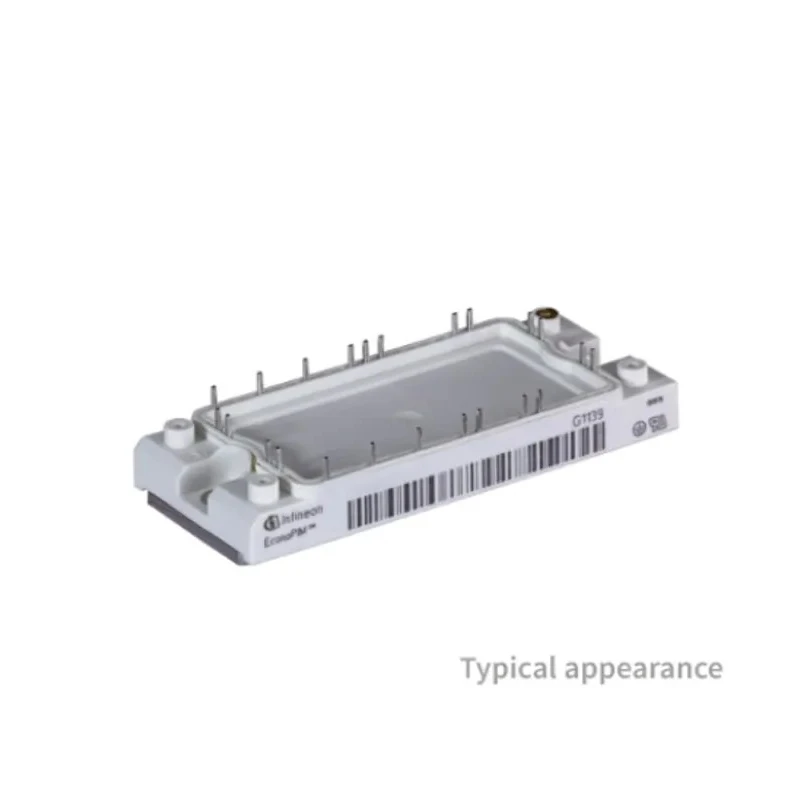

Infineon Type N-Channel IGBT Module 75 A 1200 V 31-Pin Chassis Mount FP75R12N2T7B11BPSA1

Infineon FP75R12N2T7B11BPSA1 Type N-Channel IGBT Module is engineered to provide high-power switching with integrated modular design. It features a maximum continuous collector current rating of 75 A and a collector emitter voltage rating of 1200 V, making it well suited for demanding power electronics applications.

The module employs TRENCHSTOP IGBT7 technology, offering enhanced switching performance and efficiency. Additional components include emitter-controlled 7 diodes, NTC sensor for temperature monitoring, and PressFIT contact technology that assures excellent mechanical and thermal connection.

Its chassis mount design facilitates robust installation and ease of integration. A copper base plate is used to optimize heat dissipation, enabling the module to handle high power density effectively.

Operational temperature range spans from -40°C to 175°C, ensuring reliability in harsh industrial conditions. Dimensions of the module are 107.5 mm in length, 45 mm in width, and 21.3 mm in height, making it compact for integration in control and drive systems.

Typical applications include auxiliary inverter circuits, various motor drive systems, and servo drives where efficient power switching is critical. This module’s integrated rectifier and brake chopper function reduces system component count and cost.

The product is RoHS compliant and does not carry additional certifications or automotive grade approvals, underscoring its industrial grade suitability rather than automotive-specific use.

The module incorporates TRENCHSTOP IGBT7 technology for high efficiency and robustness. Emitter-controlled 7-diode, NTC, and PressFIT contact technology enhances thermal and electrical performance. Designed with a copper base plate to optimize heat spread and improve power density.

Operates reliably within a wide temperature range from -40°C to 175°C. Compact dimensions of 107.5 mm length, 45 mm width, and 21.3 mm height suitable for space-constrained installations. The integrated rectifier and brake chopper enable system cost savings in applications.
