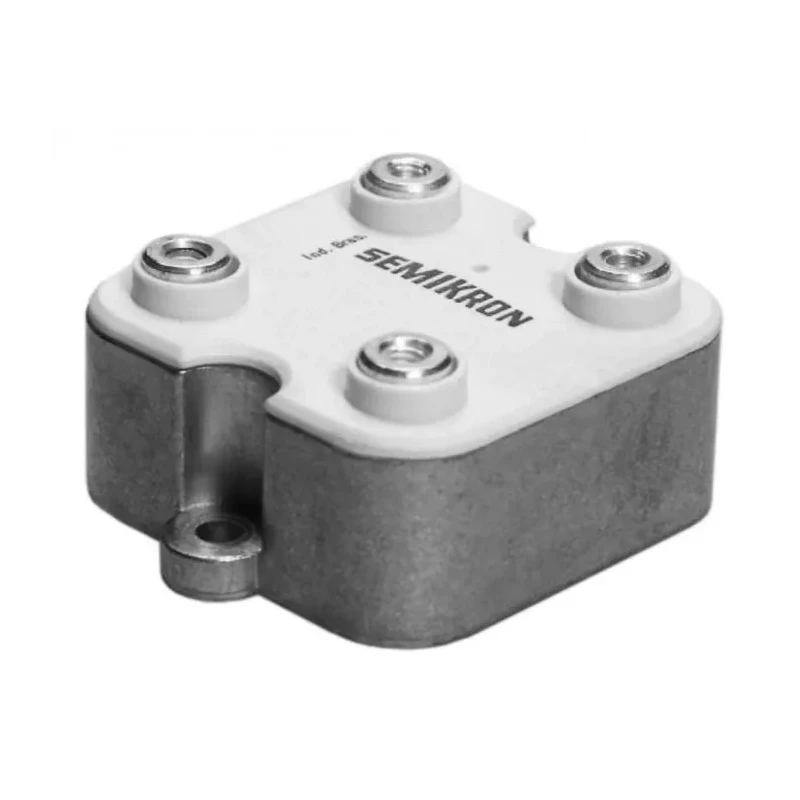

Semikron Danfoss Bridge Rectifier 1200 V 320 A Panel Mount G-13 Package 5-Pin SKD 30/12 A1

Free Delivery in India | Lowest Global Shipping Charges

Semikron Danfoss Bridge Rectifier 1200 V 320 A Panel Mount G-13 Package 5-Pin SKD 30/12 A1

Name: Semikron Danfoss Bridge Rectifier 1200 V 320 A Panel Mount G-13 Package 5-Pin SKD 30/12 A1
Brand: Semikron Danfoss
SKU: 167981
Price: 106.27 USD
Availability: InStock



Category Bridge Rectifier Brand Semikron Danfoss Condition New

Specifications

Country of Origin	India
Brand	Semikron Danfoss
Model	SKD 30/12 A1
Mount Type	Panel
Series	SKD 30
Maximum Operating Temperature	150°C
Package Type	G-13
Minimum Operating Temperature	-40°C
Number of Phases	3
Pin Count	5
Peak Reverse Repetitive Voltage Vrrm	1200V
Peak Reverse Current Ir	5mA
Peak Non-Repetitive Forward Surge Current Ifsm	320A
Forward Current If	30A
Peak Forward Voltage Vf	2.2V

Key Features

Guaranteed maximum operating temperature of 150°C ensures durability under heavy workloads.
Panel mount type with G-13 package style simplifies installation in various electronic assemblies.
Equipped with 5 pins to facilitate three-phase rectification in power supply circuits.
Supports forward current rating of 30 A for steady and efficient current conduction.
Minimum operating temperature of -40°C allows operation in harsh environmental conditions.
Peak forward voltage of 2.2 V optimizes performance for rectification tasks.
Designed without automotive certification, focused on industrial and laboratory use.
Reliable peak non-repetitive forward surge current capability of 320 A for transient loads.

Product Description

Semikron Danfoss SKD 30/12 A1 Bridge Rectifier is a power semiconductor device engineered for 3-phase applications requiring reliable and efficient rectification. Featuring a peak reverse repetitive voltage rating of 1200 V and a forward current of 30 A, this module is designed to withstand demanding electrical conditions.

The panel mount package utilizes a G-13 housing with 5 pins, ideally suited for integration within power supplies, variable frequency drives, battery charging systems, and DC motor field supplies. With a maximum operating temperature of 150°C and a minimum of -40°C, it delivers consistent performance across wide temperature ranges.

Designed without specific automotive certifications, it is optimum for industrial, manufacturing, electrical distribution, and laboratory environments where high surge current tolerance of up to 320 A is critical. The device’s peak forward voltage is 2.2 V, ensuring efficient conductivity and energy conversion during operation.

This Bridge Rectifier is part of the SKD 30 series known for power semiconductor solutions tailored for three-phase systems. Guaranteed maximum operating temperature of 150°C ensures durability under heavy workloads. Panel mount type with G-13 package style simplifies installation in various electronic assemblies.

Equipped with 5 pins to facilitate three-phase rectification in power supply circuits. Supports forward current rating of 30 A for steady and efficient current conduction. Minimum operating temperature of -40°C allows operation in harsh environmental conditions.

Peak forward voltage of 2.2 V optimizes performance for rectification tasks. Reliable peak non-repetitive forward surge current capability of 320 A for transient loads. Ideal for power supplies, variable frequency drives, battery chargers, and DC motor field supplies.

This product is designed and manufactured in accordance with industry standards, suitable for demanding industrial and electrical applications. For additional technical information, CAD models, and design resources, users may consult official Semikron Danfoss documentation and electronic component libraries.
