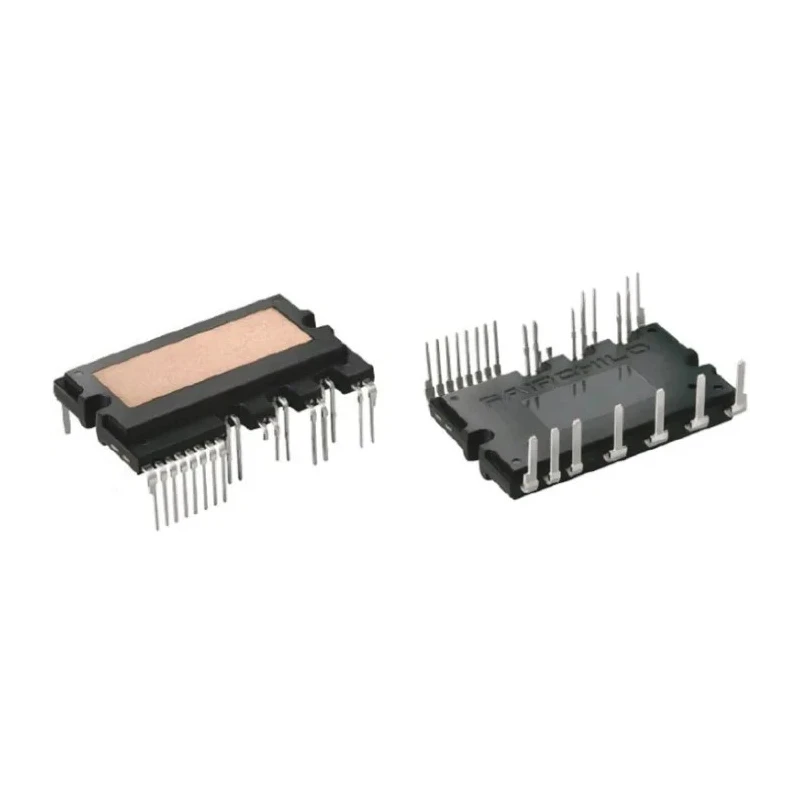

onsemi Type N-Channel IGBT Module 40 A 600 V 27-Pin SPM27 GC Through Hole FPDB40PH60B

The onsemi FPDB40PH60B is a high-performance Type N-Channel IGBT Module designed for demanding electronic and industrial applications requiring efficient power management and switching capabilities. Rated for a maximum continuous collector current of 40 A and a maximum collector emitter voltage of 600 V, this module is well suited for power factor correction circuits and motor control applications.

This IGBT module utilizes a 27-pin SPM27 GC package with through-hole mounting technology, providing robust mechanical support and easy PCB integration. The device operates reliably over a wide temperature range from -40°C up to 150°C, enabling use in harsh industrial and commercial environments.

Featuring a maximum power dissipation rating of 113 W and a saturation voltage of 2.3 V, the FPDB40PH60B ensures efficient power handling with minimized losses. Its compact dimensions (44 mm length, 26.8 mm width, and 5.5 mm height) allow for flexible installation in constrained spaces.

This module belongs to the PFC SPM 3 series and does not have specific automotive certifications but meets operational standards expected for semiconductor power modules. Primarily produced in China, it serves as a reliable component choice for power management in motor controllers, industrial automation, and power electronics manufacturing.

This IGBT module features a 27-pin SPM27 GC package for secure mounting and connection. With a continuous collector current of 40 A, it supports robust switching performance. The module supports a maximum collector emitter voltage of 600 V, ensuring operational reliability.

Operating temperature range is from -40°C to 150°C, suitable for varied environments. Compact dimensions of 44 mm length, 26.8 mm width, and 5.5 mm height facilitate integration into tight spaces. Maximum power dissipation is 113 W, supporting substantial power loads.

Saturation voltage is kept at 2.3 V to minimize conduction losses. Package type is through-hole mount, ensuring mechanical stability in circuit boards. This Smart Power Module (SPM) series is optimized for power factor correction applications.

Manufactured in China with adherence to quality standards but without specific certifications.

Ideal for industrial machines, power electronics systems, HVAC motor controllers, manufacturing automation, and other high-efficiency power control uses. Explore more IGBT Modules and semiconductor components in the onsemi range at EnvMart for robust and reliable performance.
