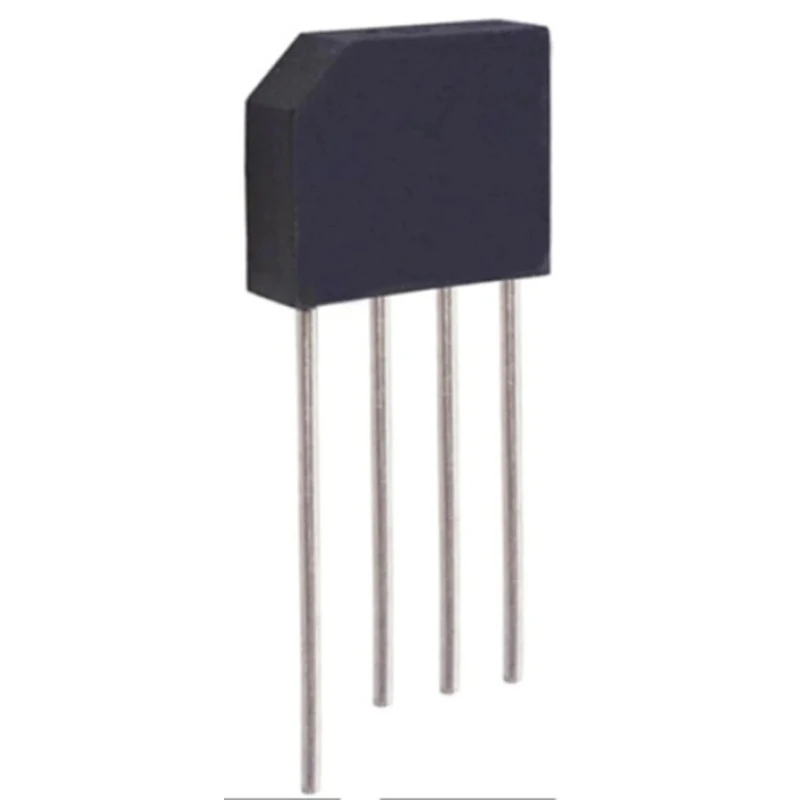

HY Electronic Corp Bridge Rectifier Single Phase 4-Pin Through Hole 1000 V 80 A KBP310G
Specifications
| Country of Origin | China |
|---|---|
| Brand | HY Electronic Corp |
| Height | 11.68mm |
| Length | 15.24mm |
| Model | KBP310G |
| Width | 5.08mm |
| Mount Type | Through Hole |
| Series | KBP3 |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | KBP |
| Minimum Operating Temperature | -55°C |
| Number of Phases | 1 |
| Pin Count | 4 |
| Peak Reverse Repetitive Voltage Vrrm | 1000V |
| Peak Reverse Current Ir | 10μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 80A |
| Forward Current If | 3A |
| Peak Forward Voltage Vf | 1.1V |
| Surge overload | -80 A |
Key Features
- The bridge rectifier offers a peak reverse repetitive voltage of 1000 V.
- It supports a forward current of 3 A with a surge capacity of 80 A.
- The operating temperature ranges from -55°C to 150°C.
- Designed with a 4-pin KBP package for ease of mounting.
- Compact dimensions of 15.24 mm length, 11.68 mm height, and 5.08 mm width.
- Glass passivated for reliability and UL 94V-0 flammability classification.
- Suitable for AC to DC conversion on printed circuit boards.
- Robust peak forward voltage of 1.1 V and low peak reverse current of 10 μA.
Product Description
HY Electronic Corp KBP310G is a single-phase bridge rectifier designed for reliable AC to DC conversion in electronic circuits. This 4-pin rectifier features through-hole mounting for easy integration onto printed circuit boards. It boasts a peak reverse repetitive voltage (VRRM) of 1000 V and a forward current of 3 A, with surge capabilities up to 80 A.
The KBP310G operates efficiently over a temperature range from -55°C to 150°C, making it suitable for harsh industrial and electronic environments. Its compact dimensions (15.24 mm length, 11.68 mm height, and 5.08 mm width) allow for space-saving designs. The device is glass passivated for enhanced durability and complies with UL 94V-0 flammability standards ensuring safety and reliability.
The bridge rectifier is ideal for use in power supplies, industrial control, consumer electronics, and HVAC systems requiring robust semiconductor performance. Its low forward voltage drop of 1.1 V and minimal peak reverse current of 10 μA contribute to efficient power conversion with minimal losses.
The bridge rectifier offers a peak reverse repetitive voltage of 1000 V. It supports a forward current of 3 A with a surge capacity of 80 A. The operating temperature ranges from -55°C to 150°C. Designed with a 4-pin KBP package for ease of mounting.
Compact dimensions of 15.24 mm length, 11.68 mm height, and 5.08 mm width. Glass passivated for reliability and UL 94V-0 flammability classification. Suitable for AC to DC conversion on printed circuit boards. Robust peak forward voltage of 1.1 V and low peak reverse current of 10 μA.
Mount type: through hole suitable for various orientations. Manufactured in China with series identifier KBP3.
This product supports numerous industrial applications including power conversion for automation equipment, laboratory instruments, and commercial electronic devices. Its reliable performance and standard package make it a versatile component in electronic designs.
Explore more semiconductor modules and bridge rectifiers on EnvMart for a wide selection of electronic components.
Explore more products in our Bridge Rectifier Module category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The bridge rectifier has a peak reverse repetitive voltage of 1000 V.
This model supports a forward current of 3 A.
It has a surge capacity of 80 A.
The operating temperature ranges from -55°C to 150°C.
The dimensions are 15.24 mm in length, 11.68 mm in height, and 5.08 mm in width.
This model features a through-hole mounting type for easy integration onto printed circuit boards.
The peak forward voltage is 1.1 V.
The peak reverse current is 10 μA.
It is designed in a 4-pin KBP package.
This unit is suitable for AC to DC conversion in power supplies, industrial control, consumer electronics, and HVAC systems.
It complies with UL 94V-0 flammability standards.
This bridge rectifier belongs to the KBP3 series.
