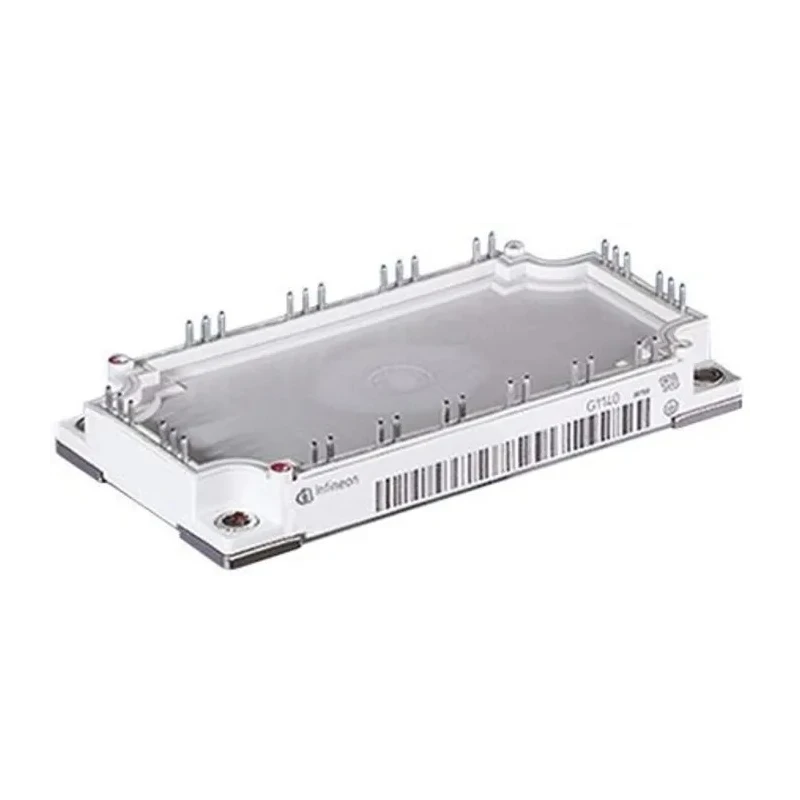

Infineon N-Channel IGBT Module, 150A 1200V, 35-Pin EconoPACK 3 Clamp FS150R12KT4BOSA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 17mm |
| Length | 122mm |
| Model | FS150R12KT4BOSA1 |
| Width | 62mm |
| Mount Type | Clamp |
| Maximum Operating Temperature | 150°C |
| Package Type | EconoPACK 3 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 35 |
| Maximum Continuous Collector Current Ic | 150A |
| Maximum Collector Emitter Voltage Vceo | 1200V |
| Maximum Collector Emitter Saturation Voltage VceSAT | 2.1V |
| Channel Type | Type N |
| Maximum Power Dissipation Pd | 750W |
| Maximum Gate Emitter Voltage VGEO | 20 V |
Key Features
- Delivers high-efficiency switching for demanding electrical systems.
- Supports up to 150A continuous collector current and 1200V collector-emitter voltage.
- Features 35-pin EconoPACK 3 compact clamp-mount design for easy installation.
- Operates in a wide temperature range from -40°C to 150°C.
- 750W power dissipation allows for robust load handling.
- Compliant with industrial application requirements for converters, drives, and inverters.
- Type N channel ensures optimized switching and minimal conduction loss.
Product Description
Infineon FS150R12KT4BOSA1 N-Channel IGBT Module combines high current capacity and robust voltage handling, making it suitable for advanced industrial power systems. With a 150A maximum continuous collector current and 1200V collector-emitter voltage, this module ensures reliable performance in power electronics and control environments.
This IGBT module features a compact 35-pin EconoPACK 3 clamp-mount package, simplifying integration into power assemblies and supporting flexible mounting strategies. The device is engineered for continuous operation at up to 750W dissipation, supporting long service life in demanding conditions.
High 1200V voltage rating accommodates industrial and renewable energy applications. Continuous 150A collector current supports high power load switching. 2.1V collector-emitter saturation voltage reduces conduction losses and inefficiencies.
Clamp-mount design enables straightforward and secure mechanical installation. Withstands ambient and junction temperatures up to 150°C, suitable for harsh environments. 20V maximum gate-emitter voltage provides robust drive compatibility and circuit safety.
Broad operating range down to -40°C allows for cold-start and outdoor implementation without compromising performance.
The FS150R12KT4BOSA1 is ideal for motor-drive inverters, industrial converters, medium-voltage drives, renewable energy systems, and induction heating modules. Its 35-pin configuration allows for streamlined electrical connections, optimizing power transmission and reliability in critical infrastructure.
Integration applications span industrial plants, manufacturing lines, renewable energy installations, construction machinery, and water treatment facilities - each demanding high-reliability switch modules with configurable mounting and operation.
Set your projects apart using Infineon's advanced IGBT technology, and explore more power modules and accessories in the IGBT Module category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous collector current for this model is 150A.
This IGBT module has a collector-emitter voltage rating of 1200V.
It can handle a maximum power dissipation of 750W.
The dimensions of this module are 122mm in length, 62mm in width, and 17mm in height.
It operates within a temperature range of -40°C to 150°C.
This model features a clamp-mount design for installation.
The maximum gate-emitter voltage for this unit is 20V.
The maximum collector-emitter saturation voltage is 2.1V.
It is suitable for applications such as motor-drive inverters, industrial converters, and renewable energy systems.
This module has a total of 35 pins.
It utilizes a Type N channel for optimized switching performance.
The country of origin for this module is India.
