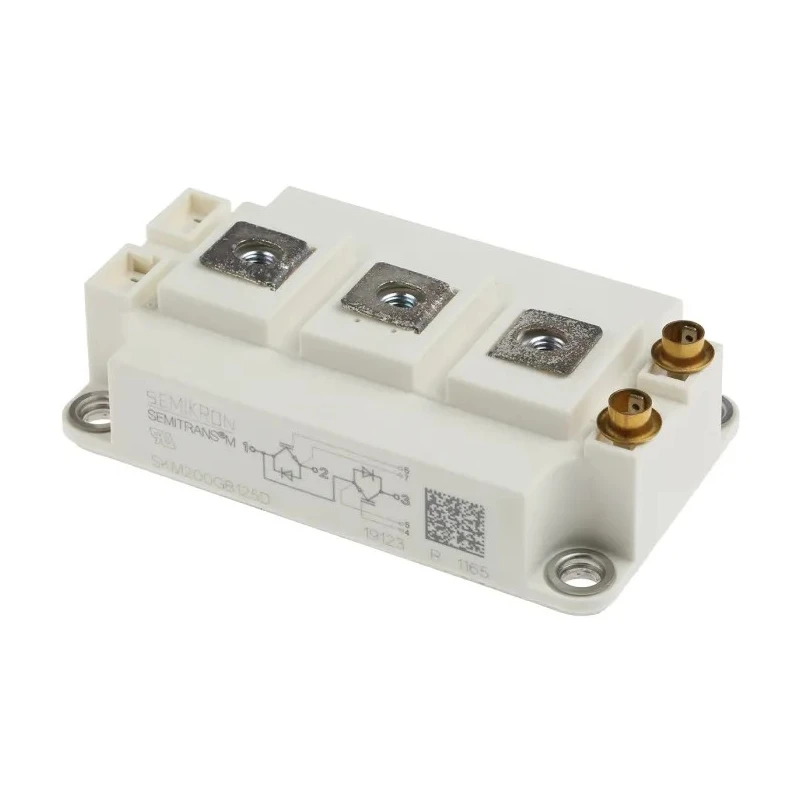

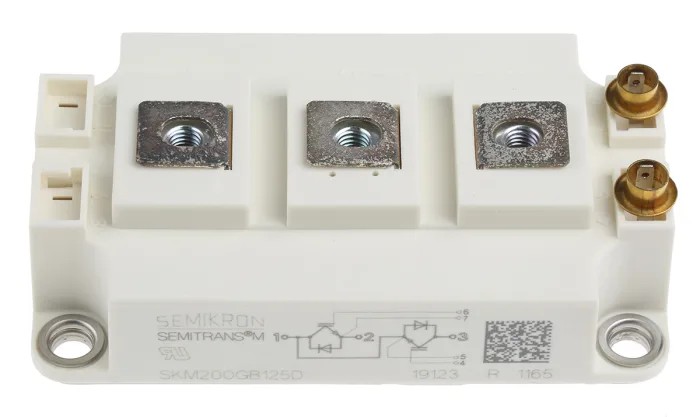

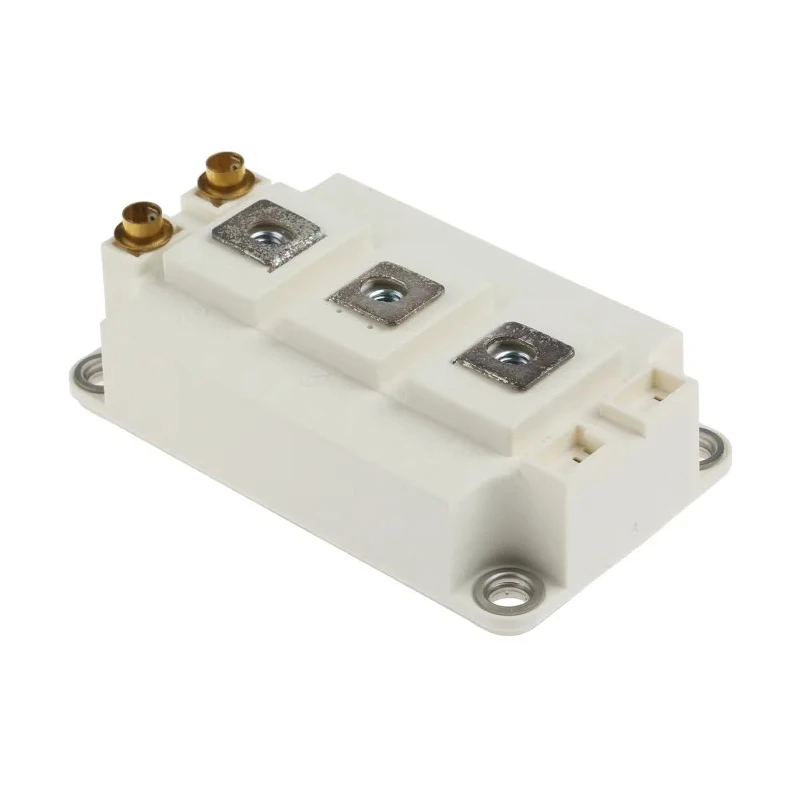

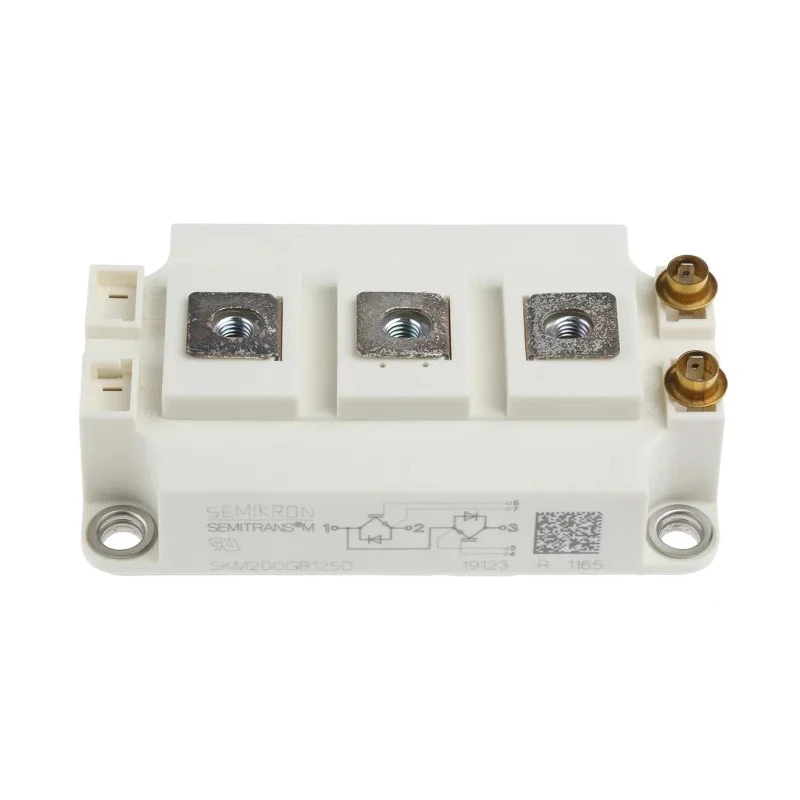

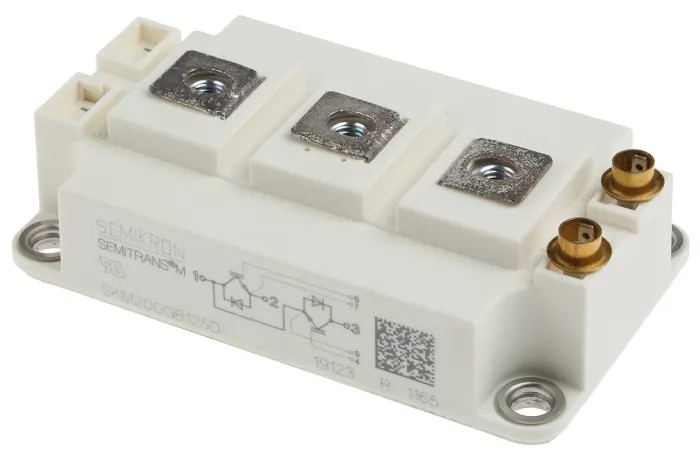

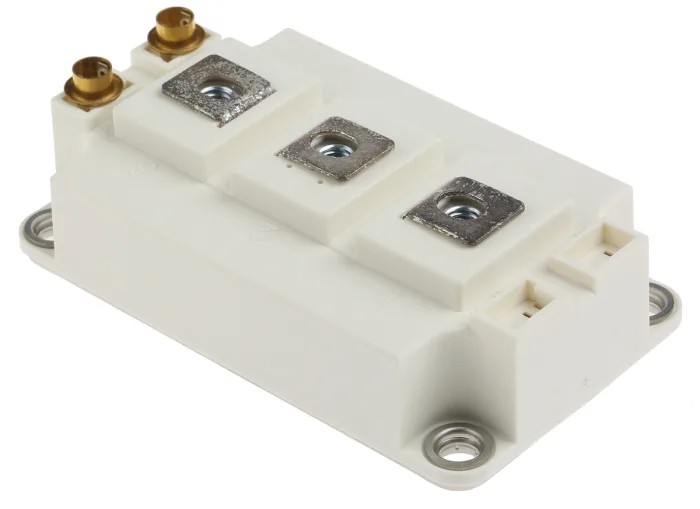

Semikron Danfoss N-Channel IGBT Module, 200 A, 1200 V, 3-Pin SEMITRANS Panel Mount SKM200GB125D

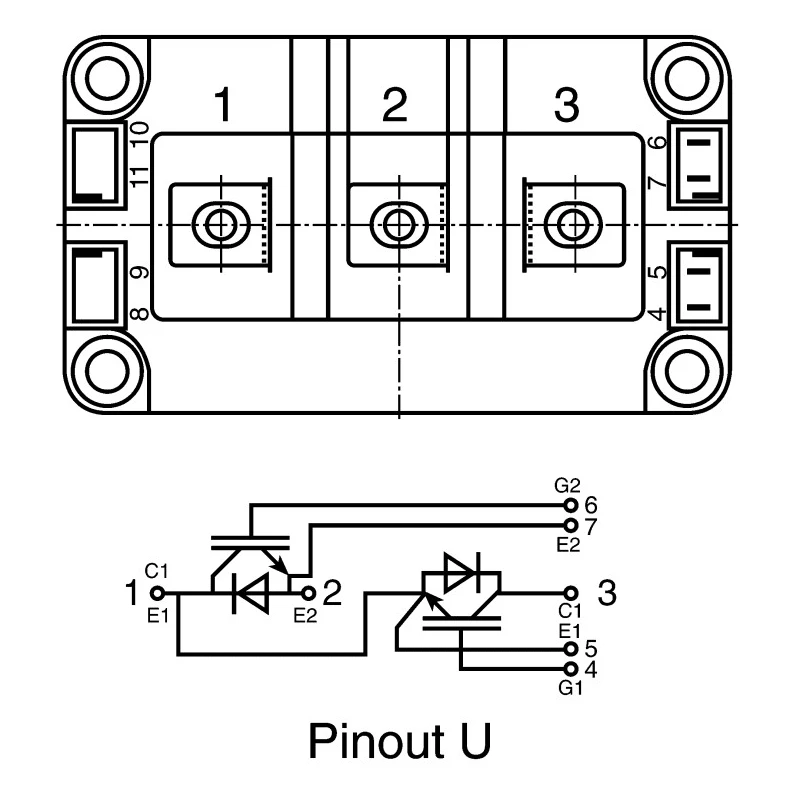

Semikron Danfoss SKM200GB125D N-Channel IGBT Module is a premium power semiconductor device designed for industrial power switching applications. It incorporates two series-connected IGBT transistors within a compact SEMITRANS package that is ideal for panel mounting in various electronic assemblies.

Rated at a maximum continuous collector current of 200 A and a collector-emitter voltage of 1200 V, this module provides reliable operation for demanding industrial environments. The device supports fast switching up to 12 kHz, facilitated by its Direct Bonded Copper (DBC) insulated copper baseplate technology which enhances thermal performance.

This module is engineered to operate efficiently over a broad temperature range from -40°C up to a high maximum of 150°C, ensuring stable operation under harsh conditions. The maximum collector-emitter saturation voltage of 3.85 V contributes to low power losses and improved energy efficiency.

Physical dimensions of the module are 106.4 mm in length, 61.4 mm in width, and 30.5 mm in height, making it suitable for installation in compact power electronics systems. It features three pins for electrical connections and is designed to handle a maximum gate-emitter voltage of 20 V.

The SKM200GB125D IGBT Module is widely used in industrial applications including AC inverter motor drives, uninterruptible power supplies, and other power conversion systems requiring robust and efficient switching components.

This module houses two series-connected IGBT transistors for reliable power switching. The device features a compact SEMITRANS package suitable for panel mounting. Designed for switching frequencies up to 12 kHz with insulated copper baseplate technology.

It operates across a wide temperature range from -40°C to 150°C. Maximum collector-emitter saturation voltage is 3.85 V for optimized performance. The module includes 3 pins and supports a gate-emitter voltage up to 20 V.

Dimensions are 106.4 mm length, 61.4 mm width, and 30.5 mm height. Ideal for AC inverter motors and uninterruptible power supplies.

This product is offered new and made predominantly in India, tailored for professionals in electronics manufacturing, repair, and industrial automation sectors. Browse EnvMart for additional Semikron Danfoss power semiconductor modules and related components.
