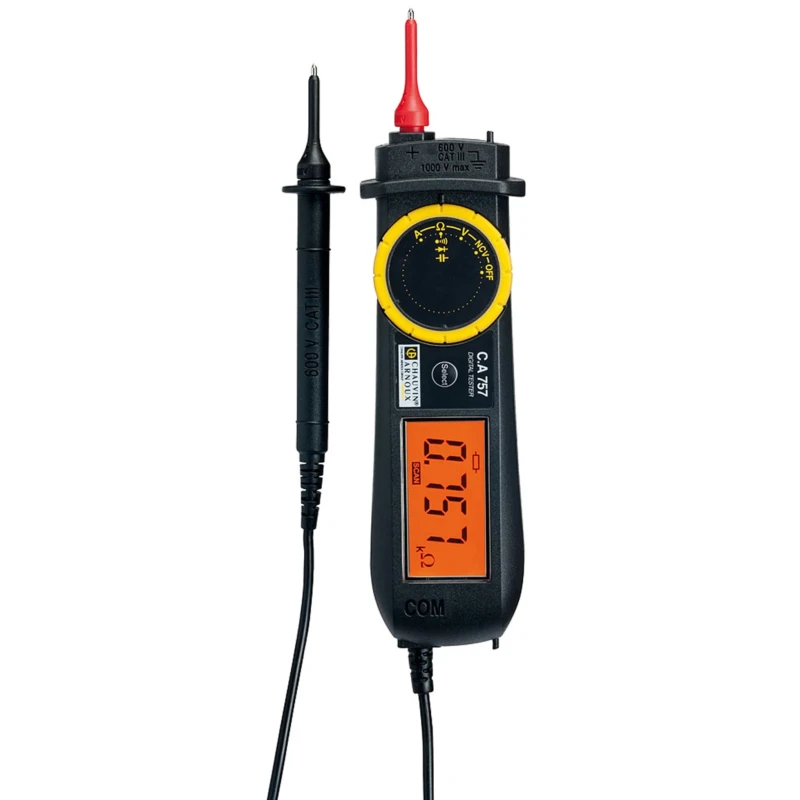

Chauvin Arnoux Handheld Digital Multimeter, 300 A AC Current, 600 V CAT III Safety, P01191757

Free Delivery in India | Lowest Global Shipping Charges

Chauvin Arnoux Handheld Digital Multimeter, 300 A AC Current, 600 V CAT III Safety, P01191757

Name: Chauvin Arnoux Handheld Digital Multimeter, 300 A AC Current, 600 V CAT III Safety, P01191757
Brand: Chauvin Arnoux
SKU: 201775
Price: 394.81 USD
Availability: InStock



Category Multimeter Brand Chauvin Arnoux Condition New

Specifications

Country of Origin	China
Display Type	Digital
Brand	Chauvin Arnoux
Battery Life	100h
Battery type	5 V AAA LR03
Height	180mm
Length	45mm
Model	P01191757
Gross Weight	200g
Width	52mm
Maximum Operating Temperature	55°C
AC Voltage Resolution	1mV ac
Minimum Operating Temperature	-10°C
DC Voltage Resolution	1 mV dc
Resistance Measurement Accuracy	±3 % rdg + 3 Digits
AC Current Accuracy	±3 % rdg + 5 Digits
Resistance Resolution	100mΩ
AC Current Resolution	0.01A ac
Multimeter Type	Handheld
Functions Measured	AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode Test, Resistance
Maximum Resistance Measurement	30mΩ
Maximum AC Current Measurement	300A ac
Maximum Frequency	65Hz
Safety Category Level	CAT III
Safety Category Voltage	600V

Key Features

Compact and lightweight design with easy-to-use functionalities.
Measures AC and DC voltages, currents, resistance, capacitance, continuity, diode testing, and more.
Equipped with a MiniFlex flexible current sensor for measuring up to 300 A AC in difficult spaces.
Features automatic recognition of AC and DC, resistors, diodes, and capacitors for convenience.
IP54 rated casing protects against dust and water projections.
Large backlit digital display with removable stored test probes.
Provides safety protections including 600 V CAT III double insulation and hazard voltage indication.
Battery life up to 100 hours powered by 5 V AAA LR03 batteries.

Product Description

Chauvin Arnoux P01191757 handheld digital multimeter is a reliable and compact test instrument designed for electrical testing and measurement tasks across industrial, laboratory, and field applications. Supporting AC and DC voltage and current measurements with a maximum AC current of 300 A, this multimeter covers a comprehensive range of electrical functions such as resistance, capacitance, continuity, diode testing, and no-contact voltage detection.

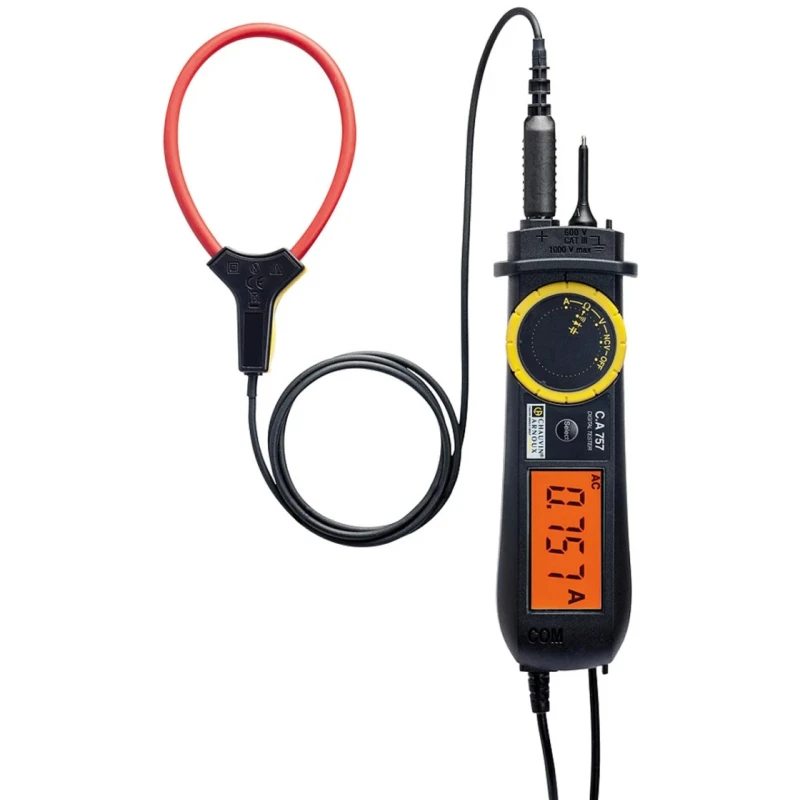

The device includes a MiniFlex® flexible current sensor with a 250 mm loop length, enabling current measurements even in hard-to-access areas. Its IP54 rated rugged casing safeguards against dust ingress and water splashes, making it suitable for various environments including construction, manufacturing, and HVAC maintenance.

Equipped with a large, backlit digital display and removable test probes conveniently stored onboard, the multimeter enhances user comfort and operation efficiency. Safety is paramount with compliance to IEC 61010-2-033 containing 600 V CAT III double insulation, high voltage protection up to 6 kV for voltage measurements, and an audible hazardous voltage indicator.

The multimeter operates over a wide temperature range (-10°C to 55°C) and provides up to 100 hours of battery life using standard AAA batteries. Automatic recognition and measurement ranging for AC/DC voltages, resistors, and capacitors further simplify usage. The device automatically powers off after 10 minutes of inactivity to conserve battery life.

This Chauvin Arnoux multimeter is ideal for precise electrical diagnostics and measurement in industrial, laboratory, electrical maintenance, and safety inspection applications. It is delivered complete with the C.A 757 multimeter, MiniFlex sensor, connection cable, connector, and a hook-and-loop strap for convenience and organized handling.

Compact and lightweight design for ease of handling. Wide range of electrical measurement functions. MiniFlex sensor for flexible current measurement up to 300 A AC. IP54 protection against dust and water projections. Enhanced user safety features and compliance with IEC standards.

Long battery life with automatic power-off feature. Large backlit display and removable test probes. Supports industrial and laboratory electrical testing use cases. Enhance your measuring and testing capabilities with this professional Chauvin Arnoux handheld multimeter available in EnvMart’s digital Multimeter category.
