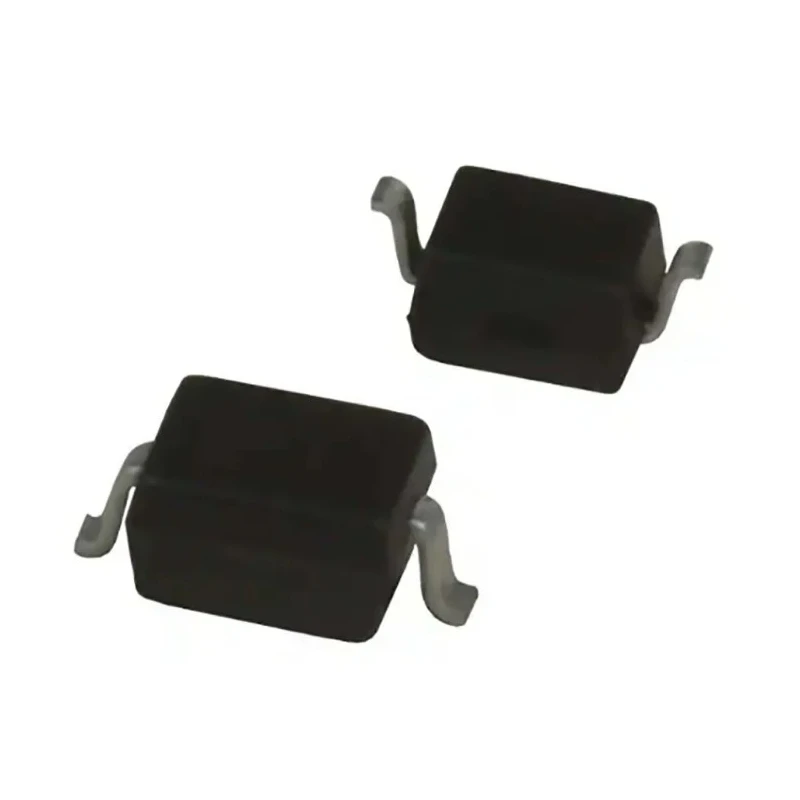

DiodesZetex 1-Element Bi-Directional TVS Diode 320 W, 2-Pin SOD-323 SD15C-7

Free Delivery in India | Lowest Global Shipping Charges

DiodesZetex 1-Element Bi-Directional TVS Diode 320 W, 2-Pin SOD-323 SD15C-7

Name: DiodesZetex 1-Element Bi-Directional TVS Diode 320 W, 2-Pin SOD-323 SD15C-7
Brand: DiodesZetex
SKU: 165699
Price: 0.11 USD
Availability: InStock



Category TVS Diode Brand DiodesZetex Condition New

Specifications

Country of Origin	China
Brand	DiodesZetex
Height	1.4mm
Length	2.7mm
Model	SD15C-7
Width	1.1mm
Mount Type	Surface
Series	SD
Maximum Operating Temperature	150°C
Package Type	SOD-323
Minimum Operating Temperature	-65°C
Standards/Approvals	RoHS, IEC 61000-4-2
Pin Count	2
Number of Elements per Chip	1
Clamping Voltage VC	27V
Automotive Standard	AEC-Q101, AEC-Q200, AEC-Q100
Diode Configuration	Single
Direction Type	Bi-Directional
Minimum Breakdown Voltage Vbr	16.7V
Maximum Reverse Stand-off Voltage Vwm	15V
Peak Pulse Power Dissipation Pppm	320W
Maximum Peak Pulse Current Ippm	12A
Maximum Reverse Leakage Current	1μA

Key Features

Designed for protection against electrostatic discharge and transient voltage spikes.
Bi-directional configuration suitable for symmetric circuit protection.
Compact 2-pin SOD-323 surface mount package with dimensions 2.7mm x 1.1mm x 1.4mm.
Minimum breakdown voltage of 16.7 V and clamping voltage of 27 V ensure robust performance.
Operational temperature range extends from -65°C to 150°C for harsh environments.
Maximum peak pulse current of 12 A for effective transient suppression.
Compliant with automotive standards AEC-Q101, AEC-Q200, and AEC-Q100.
Low maximum reverse leakage current of 1μA to maintain circuit integrity.

Product Description

DiodesZetex SD15C-7 is a 1-element bi-directional transient voltage suppression (TVS) diode designed to provide efficient protection of sensitive electronic components against electrostatic discharge (ESD) and transient voltage spikes. This diode features a peak pulse power dissipation of 320 W and is housed in a compact 2-pin SOD-323 surface mount package with precise dimensions of 2.7mm length, 1.1mm width, and 1.4mm height. It operates safely within a temperature range from -65°C to 150°C, making it suitable for demanding industrial and automotive environments.

This TVS diode offers a minimum breakdown voltage of 16.7 V, maximum reverse stand-off voltage of 15 V, and clamps voltage at 27 V to safeguard sensitive circuits from voltage surges. The device supports a maximum peak pulse current of 12 A while maintaining a low maximum reverse leakage current of 1μA, optimizing circuit reliability. It is fully compliant with automotive quality standards AEC-Q101, AEC-Q200, and AEC-Q100 and meets the rigorous IEC 61000-4-2 ESD protection requirements. RoHS compliance ensures environmental friendliness.

Due to its ultra-low channel input capacitance and small size, the SD15C-7 TVS diode is ideal for protecting portable electronic devices such as cellular phones, digital cameras, and MP3 players from damage caused by ESD events. Its bi-directional configuration allows effective protection on lines with voltage polarity reversals.

Applications for this TVS diode span industrial, automotive, consumer electronics, manufacturing, and communications sectors requiring reliable transient voltage suppression. It supports the design of robust circuits resistant to ESD and voltage transients that can otherwise cause component failure.

Provides efficient protection against electrostatic discharge and transient voltage spikes. Surface mount SOD-323 package suitable for compact PCB layouts. Wide operational temperature range for use in various industries.

Automotive standard qualified ensuring high reliability under stringent conditions. Low leakage current and robust transient handling capability. Discover more electronic components and TVS Diode solutions in EnvMart’s extensive semiconductor catalog to design your next reliable and efficient electronic protection system.
