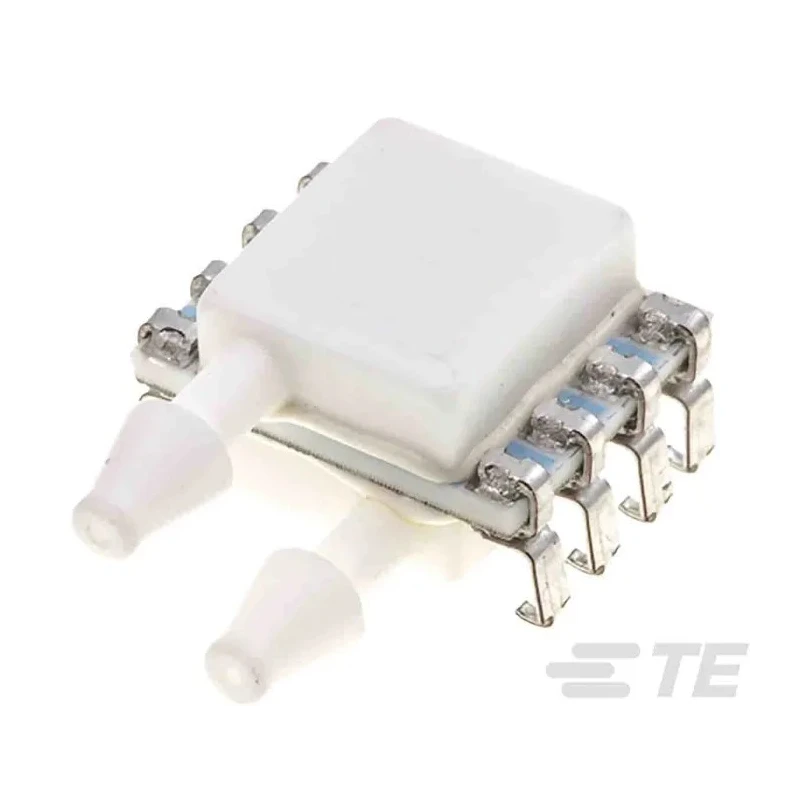

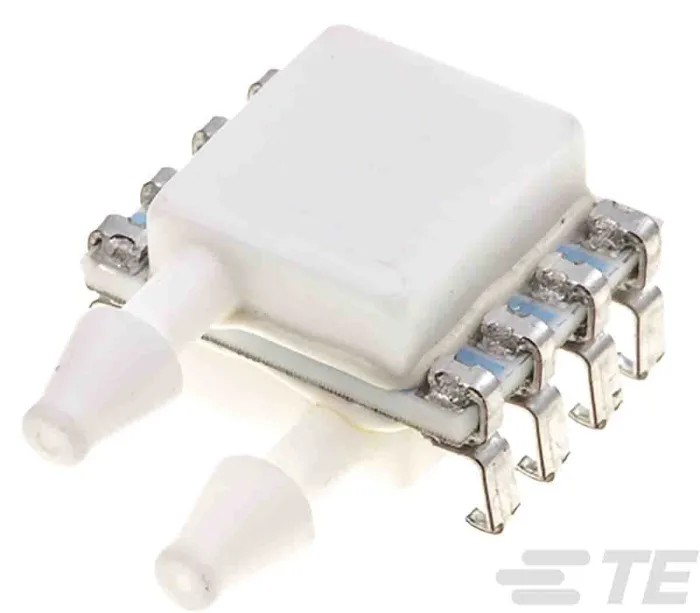

TE Connectivity Differential Pressure Sensor Through Hole 8-Pin DIP Maximum Pressure 7 kPa 4525-DS3A001DP

TE Connectivity 4525-DS3A001DP is a high-performance differential pressure sensor designed for precise low-pressure measurement in various industrial and electronic systems. Featuring an 8-pin DIP through-hole package, this sensor easily integrates into PCB assemblies and is built using proprietary UltraStable™ ceramic technology to ensure long-term stability and accuracy.

The sensor offers a typical sensitivity of 48.5 mV/kPa and operates accurately with a span accuracy of 0.25%, making it suitable for demanding applications where precise pressure differentials must be monitored. It measures differential pressure up to a maximum operating pressure of 7 kPa, with an overload pressure rating of 2068 kPa, safeguarding it against pressure spikes.

Designed to function in environments with temperatures ranging from -25°C to 105°C, the sensor maintains reliable performance across typical industrial conditions. Its analog high-level output up to 4.75 V simplifies signal conditioning and readout. The supply voltage requirement is modest, ranging from 2.7 V to 5.5 V, providing versatility for inclusion in various electronic circuits and systems.

The TE Connectivity 4525-DS3A001DP sensor complies with key environmental standards including EU RoHS 2011/65/EU and China RoHS 2 Directive, ensuring it meets current regulatory requirements. Its compact through-hole DIP package with 8 pins facilitates easy handling and soldering onto printed circuit boards.

This Pressure Sensor model is ideal for use in industrial instrumentation, HVAC systems, medical devices, and other applications requiring accurate differential pressure measurement. The sensor’s high sensitivity and reliability make it a trusted choice for designers needing precise and stable pressure data.

Measures differential pressure with high accuracy of 0.25 % span. Operates within temperature range from -25°C to 105°C reliably. Supplies analog high-level output voltage up to 4.75 V. Uses a proprietary UltraStable™ ceramic sensor process for stable performance.

Compact through-hole 8-pin DIP package suitable for PCB mounting. Typical sensitivity of 48.5 mV/kPa provides precise measurement signal. Supports maximum operating pressure of 7 kPa and overload pressure up to 2068 kPa.

Requires supply voltage between 2.7 V minimum and 5.5 V maximum. Complies with EU RoHS and China RoHS environmental standards. Manufactured in China with proven reliability for industrial and electronic sensor applications.

Explore more TE Connectivity sensors and pressure measurement devices available at EnvMart to support your design and application requirements.
