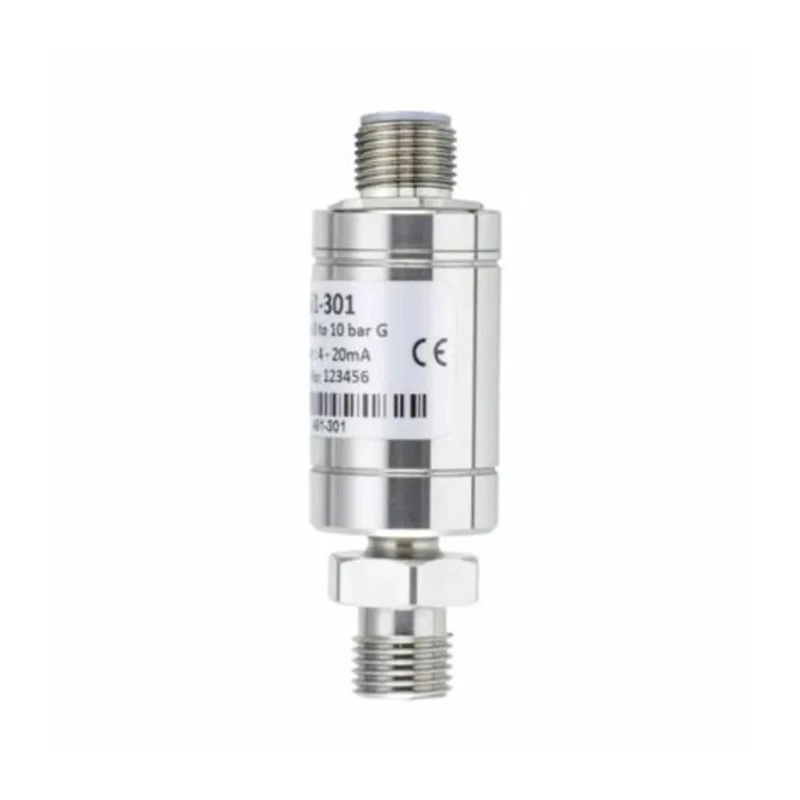

RS PRO IPS Series Pressure Sensor, 0.5 V or 4 to 20 mA Output, 0 to 10 bar, Compound/Gauge/Sealed Gauge, Stainless 175-4985

The RS PRO IPS Series Pressure Sensor (model 175-4985) offers reliable and precise measurement of pressure in industrial process control, automation, and testing facilities. The device features a piezo-resistive thick film ceramic sensing element, delivering high compatibility with a wide range of media and ensuring robust operation even in demanding industrial settings.

This pressure sensor supports both 0.5 V and 4 to 20 mA output types, making it suitable for integration into modern PLCs, SCADA systems, and industrial automation networks. The dual output allows for both analog and current loop signaling, providing flexibility across a variety of process monitoring environments.

Engineered with a stainless steel housing and an IP67 rating, the RS PRO 175-4985 is built to withstand exposure to dust, water, and challenging process media. The device is designed for mounting via a threaded connection, and uses a 4-pin M12 interface for efficient, reliable installation and secure connectivity even in vibration-prone environments.

The sensor measures a pressure range from 0 to 10 bar, with a minimum input pressure of 0 bar. Its high accuracy rating of ±0.25% ensures users can achieve dependable and repeatable readings, aiding in precise process control. The construction is temperature compensated, ensuring stability and performance across an operating temperature range from -20 °C up to 80 °C.

Installation is straightforward with the use of the 4-pin M12 connector, compatible with standard cabling hardware. The pressure sensor is suitable for compound, gauge, and sealed gauge measurements, supporting a broad array of process, fluid, and pneumatic monitoring tasks commonly found in industrial automation, laboratory measurement, and test bench applications.

The RS PRO IPS Series Pressure Sensor with model 175-4985 is CE compliant and includes a calibration certificate. Applications for this sensor include process control, laboratory measurement, factory automation, temperature testing facilities, and other critical industrial measurement roles. The device is manufactured with high-grade stainless steel for durability, and its threaded IP67 construction ensures resistance to ingress of dust and liquids, supporting long service life and reduced maintenance needs.

When working with high-precision automation and process systems, selecting a sensor like the RS PRO IPS Series ensures process reliability and operational safety. Explore additional RS PRO industrial automation solutions in the Sensors category for compatible accessories and expanded sensing capabilities.
