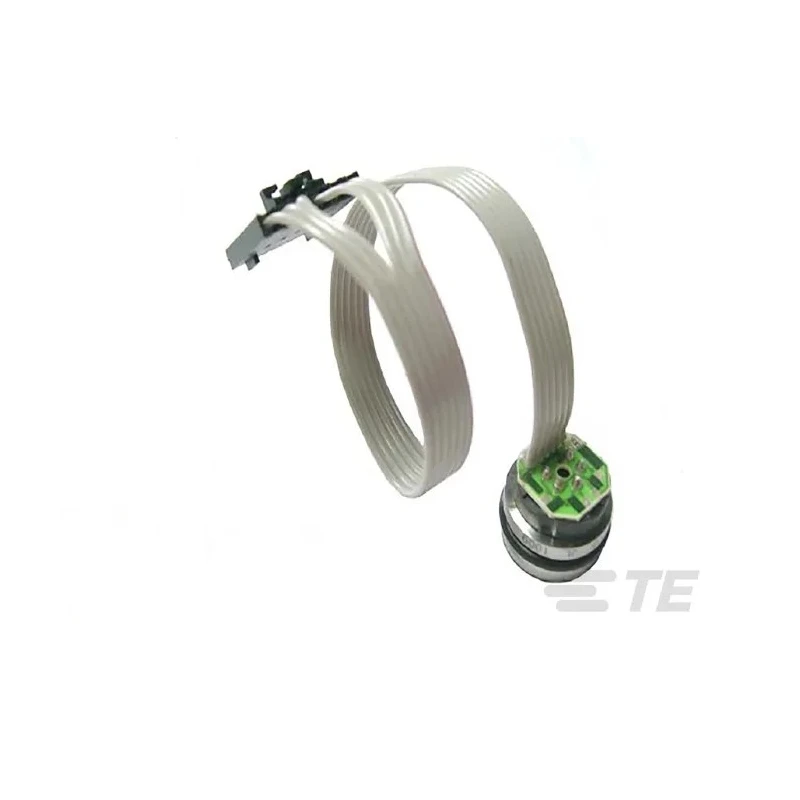

TE Connectivity 86 Series 316L Stainless Steel Pressure Sensor 0 psi to 500 psi 86-015G-C

TE Connectivity 86-015G-C is a high-quality pressure sensor engineered for precise pressure measurements from 0 psi up to 500 psi.

The sensing element inside the sensor is a piezoresistive silicon membrane, isolated by a stainless steel diaphragm. Silicon oil is used to transfer the applied pressure to the sensing element, ensuring accuracy and durability. The sensor is carefully temperature compensated by laser-trimmed resistors on a ceramic substrate, providing enhanced stability and reducing offset across a wide temperature range from -40°C to 125°C.

The 86 series sensor delivers a linear output voltage range of 0 to 100 mV, with a very low non-linearity of ±0.2%, ensuring precise pressure readings. Its interchangeable span of 1.0% is controlled via an external gain set resistor, offering flexibility for various calibration needs. With a swift response time of 0.1 milliseconds, it is well suited for dynamic pressure monitoring applications.

This pressure sensor features solder pad terminals for secure and convenient electrical connectivity and an O-ring mounting design for easy integration into fluid or gas systems requiring leak-tight installation. The product is certified compliant with RoHS standards and manufactured in China.

Industrial applications for the TE Connectivity 86-015G-C pressure sensor include automation controls, fluid pressure monitoring, hydraulic and pneumatic systems, HVAC equipment, and laboratory instrumentation. Its robust materials and compact design support durability in harsh environments.

This sensor features a 316L stainless steel housing suitable for corrosive media. It supports a pressure range from 0 psi minimum to 500 psi maximum accurately. The sensor provides a fast response time of 0.1 milliseconds for dynamic pressure measurements.

Equipped with solder pad terminals for reliable electrical connections. Temperature compensation ensures stability between -40°C and 125°C operating conditions. Its O-ring mount type enables secure and leak-tight installation.

The sensing package uses silicon oil transferring pressure from stainless steel diaphragm to a piezoresistive element. The sensor output is 0 - 100 mV with ±0.2% pressure non-linearity and 1.0% interchangeable span accuracy.
