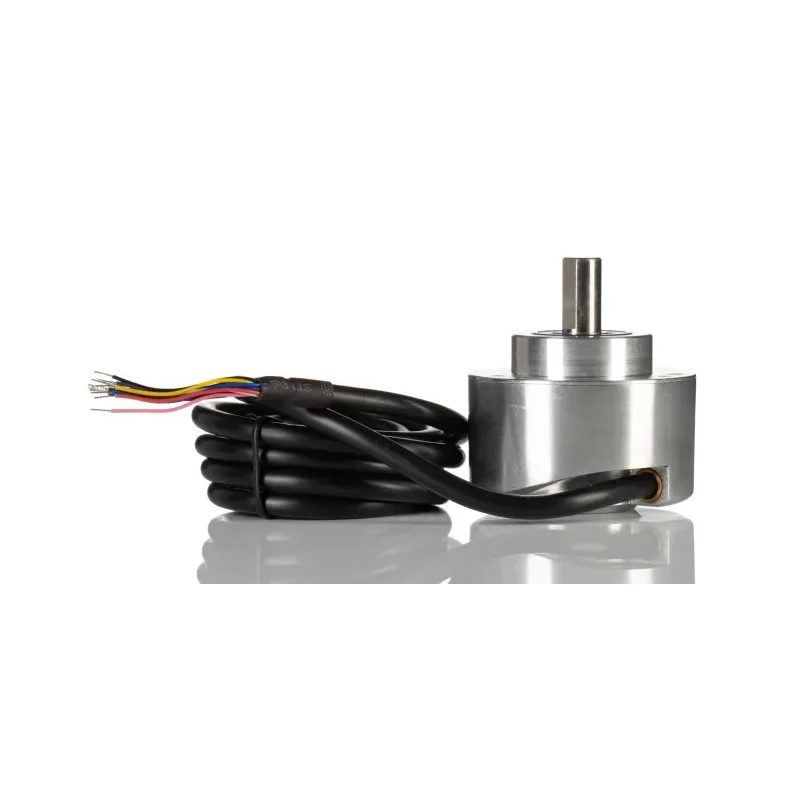

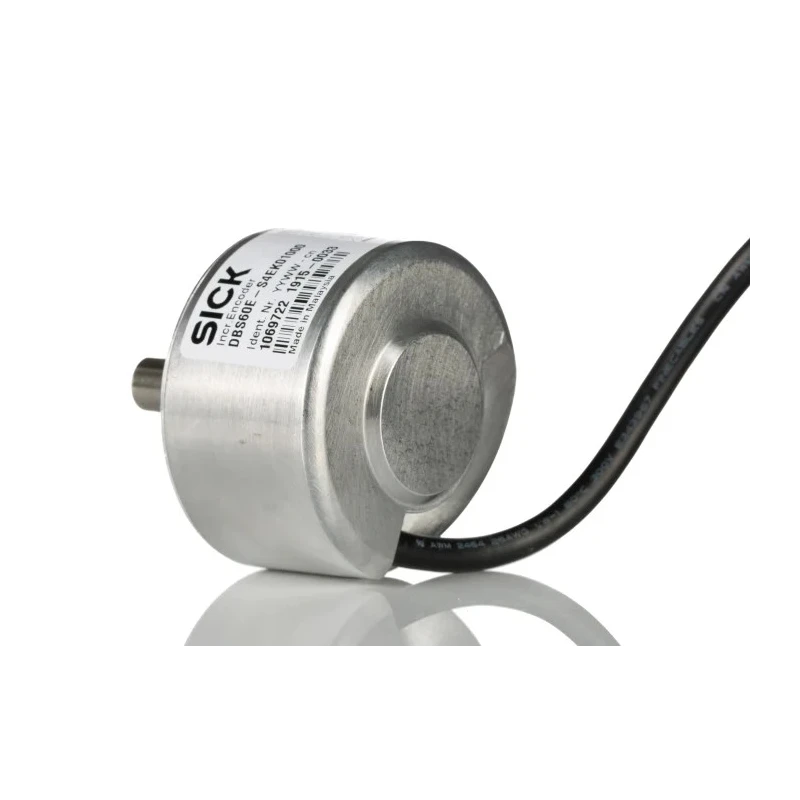

SICK DBS60 Core Series Incremental Encoder 30V, 2000 PPR, TTL and HTL Signal, Solid Shaft 10 mm DBS60

The SICK DBS60 Core Series Incremental Encoder (model DBS60) operates at 30V and delivers 2000 pulses per revolution (PPR) with TTL and HTL signals through a solid 10 mm shaft, making it ideal for precise measurement of position, speed, and distance in various industrial environments.

This incremental encoder features a compact 58 mm diameter housing, with a depth of 44.35 mm and height of 58 mm, enabling flexible and space-saving installation. The rugged design with an IP65 rating protects the encoder from dust and water ingress, enhancing reliability in factory and logistics automation applications.

Designed for demanding environments, it supports wide temperature ranges from -30°C to 100°C and can withstand high shaft loads due to its durable construction and large bearing distance. The full shaft mount type facilitates secure installation on conveyor systems, elevator motion control, asynchronous motors, packaging machines, and transfer systems.

With a maximum speed rating of 9000 rpm and a switching frequency of 300 kHz, the DBS60 encoder ensures accurate signal transmission even at high operational speeds. It complies with electromagnetic compatibility standards EN 61000-6-2 and EN 61000-6-3, guaranteeing interference immunity and stable performance in industrial settings.

The encoder's electrical interface is incremental with cable terminal type, supporting easy connection to control systems. It supports versatile installation options with face mounts and servo flange options, providing flexibility across multiple industrial applications such as measuring conveyor speed, circuit board device positioning, and jerk-free elevator motion control.

Manufactured in Malaysia, this encoder balances durability with precise performance, making it suited for automation, manufacturing, warehouse logistics, and material handling industries.

Features a solid shaft design with 10 mm diameter for mechanical strength. Offers TTL and HTL signal outputs for adaptable interface needs. Compact IP65 rated housing ensures environmental protection. Wide temperature operation from -30°C to 100°C covers harsh conditions.

High maximum rotational speed of 9000 rpm supports fast-moving applications. Conforms to relevant electromagnetic compatibility standards for industrial reliability. Full shaft mounting type provides stable installation.

Switching frequency up to 300 kHz facilitates precise signal acquisition. Designed for a variety of factory and logistics automation uses. Manufactured in Malaysia maintaining strict quality control.
