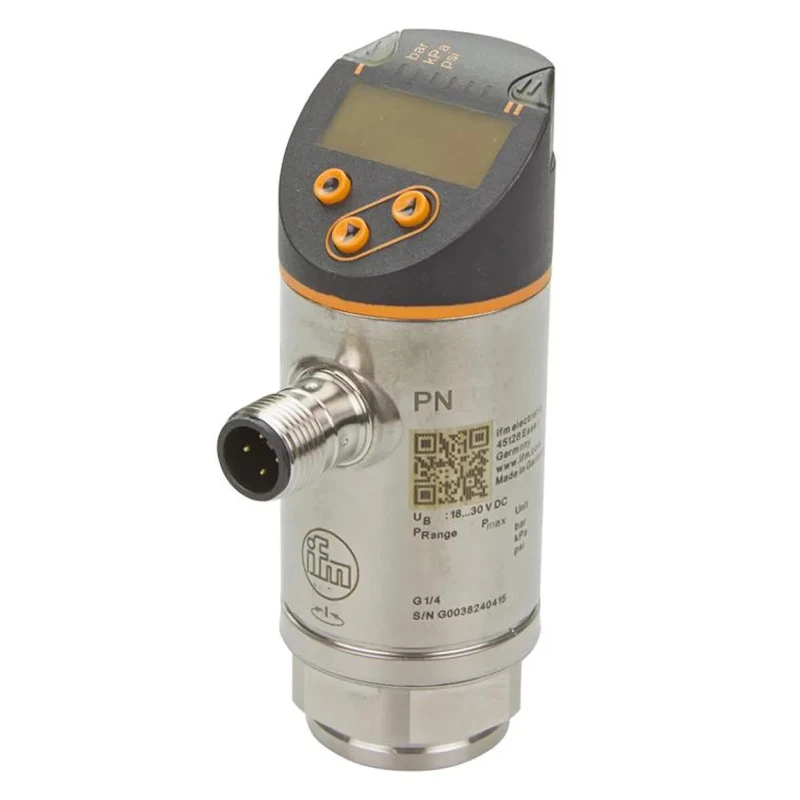

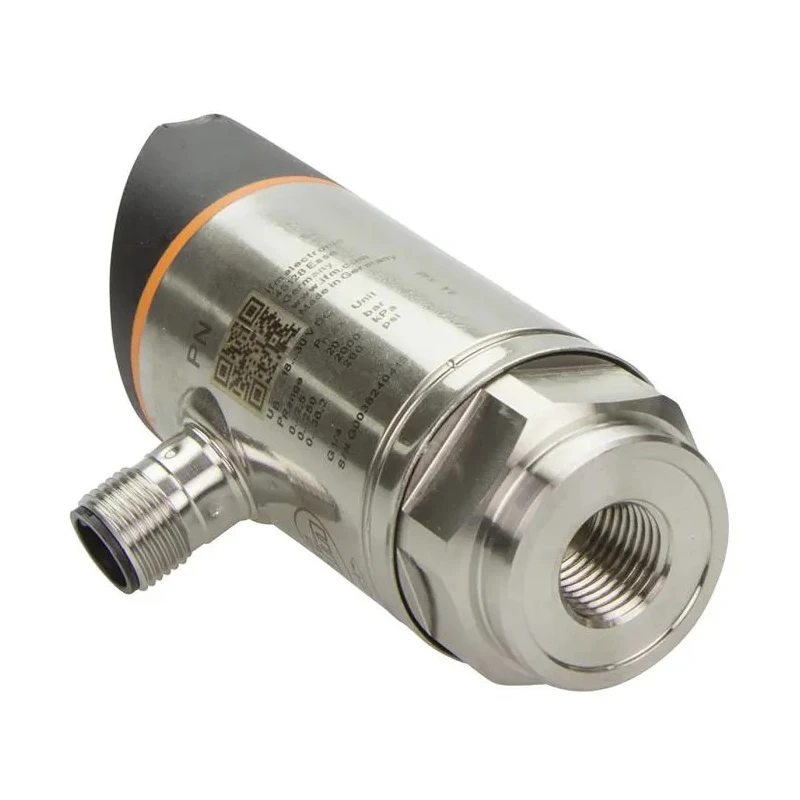

ifm electronic PN Series Pressure Sensor PN7093, 0 - 25 bar, Relative, IO-Link, 18 - 30V DC, Accuracy ±0.5%
Specifications
| Country of Origin | India |
|---|---|
| Accuracy | ±0.5 % |
| Brand | ifm electronic |
| Response time | 3ms |
| Model | PN7093 |
| IP Rating | IP67, IP65 |
| Housing Material | Fibreglass Reinforced PBT GF30, Stainless Steel |
| Series | PN |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -25°C |
| Standards/Approvals | IEC 61131-9 |
| Maximum Pressure Measurement | 25bar |
| Minimum Pressure Measurement | 0bar |
| Maximum Supply Voltage | 30V dc |
| Minimum Supply Voltage | 18V |
| Pressure Reading Type | Relative |
| Media Measured | Fluid |
| Programmable Output | NC/NO |
Key Features
- Measures fluid system pressure accurately from 0 to 25 bar.
- Supports IO-Link communication for advanced automation integration.
- Dual programmable NC/NO outputs provide enhanced control flexibility.
- Rotatable sensor with a bright 4-digit display for easy status monitoring.
- Rated IP67 and IP65 for reliable performance in harsh environments.
- Wide operating temperature range from - 25°C to 80°C.
- Ceramic measuring element tolerates overpressures and minimizes drift.
- Provides high overload protection for safe, continuous operation.
Product Description
The ifm electronic PN7093 is a high-performance pressure sensor engineered for demanding industrial applications, providing precise fluid pressure measurement in ranges from 0 to 25 bar using a relative reading principle. This sensor is part of the versatile PN Series, known for delivering robust performance and flexible integration in automation systems.
Featuring IO-Link communication, the PN7093 allows for seamless data exchange and device configuration, making it ideal for advanced industrial automation environments where reliable sensor communication is critical. Its dual programmable NC/NO outputs give users complete control over hysteresis, making it possible to replace traditional HI/LOW mechanical switches and streamline process management.
The sensor is equipped with an easily rotatable mounting design and a bright 4-digit alphanumeric display, which can be configured to display switching states with highly visible red or alternating red-green indicators. This ensures immediate system feedback and allows operators to quickly assess process status, even in challenging conditions.
Constructed from fibreglass-reinforced PBT (GF30) and stainless steel, the housing guarantees long-term durability and resistance to mechanical stress. The highly stable ceramic measuring element offers exceptional tolerance to overpressure, minimizing drift and offset from ageing, temperature changes, or excessive pressure. The IP67/IP65 rated enclosure makes the PN7093 suitable for operations in wet, dusty, or otherwise harsh industrial environments.
The sensor performs optimally across a wide temperature range of -25°C to 80°C and is capable of rapid response times (3 ms), enabling real-time monitoring and fast adaptation to dynamic process demands. Independent set and reset points, along with signal damping and adjustable output delays, ensure precise control over pressure-dependent operations.
Common industrial use cases include hydraulic and pneumatic systems, process automation, water treatment plants, and manufacturing lines where continuous, reliable monitoring of fluid pressure is essential. The PN7093's IEC 61131-9 compliance and versatile features make it an exceptional choice for engineers seeking advanced sensor technology for smart factory integration.
Explore more Pressure Sensors and automation devices in the EnvMart Electronics & Electricals category for optimized industrial process control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The PN7093 sensor measures fluid pressure in the range of 0 to 25 bar using a relative reading principle.
It has an accuracy of ±0.5%.
This model supports IO-Link communication for advanced automation integration.
The sensor requires a supply voltage between 18V and 30V DC.
The response time for this sensor is 3 milliseconds.
It operates effectively within a temperature range of -25°C to 80°C.
The housing is made from fibreglass-reinforced PBT (GF30) and stainless steel, providing durability and resistance to mechanical stress.
The sensor has an IP67/IP65 rating, making it suitable for harsh environments.
Yes, it features dual programmable NC/NO outputs for enhanced control flexibility.
It complies with IEC 61131-9 standards.
Common applications include hydraulic and pneumatic systems, process automation, and water treatment plants.
The PN7093 provides relative pressure readings.
