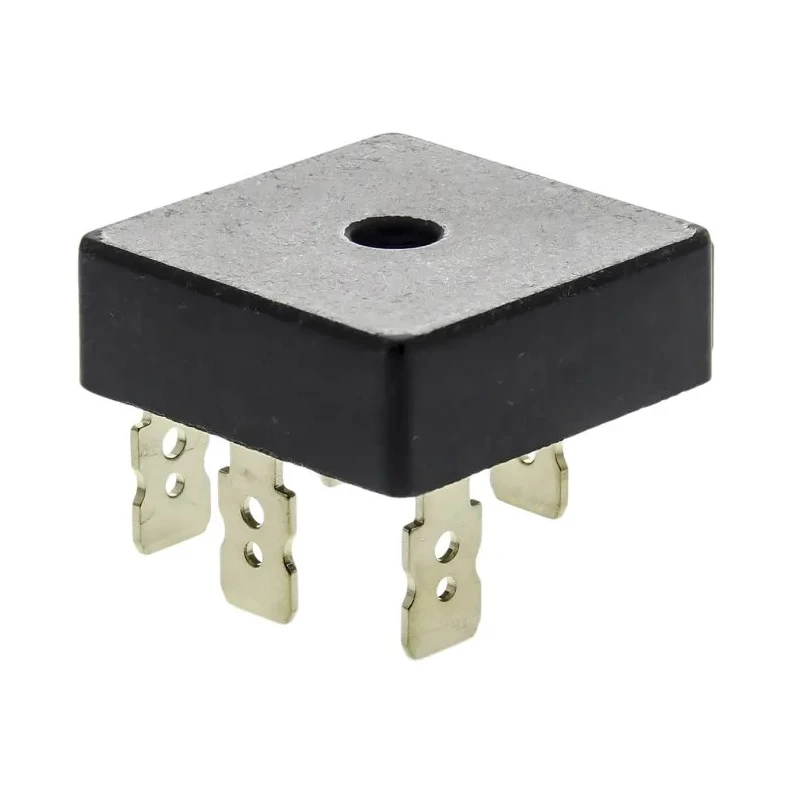

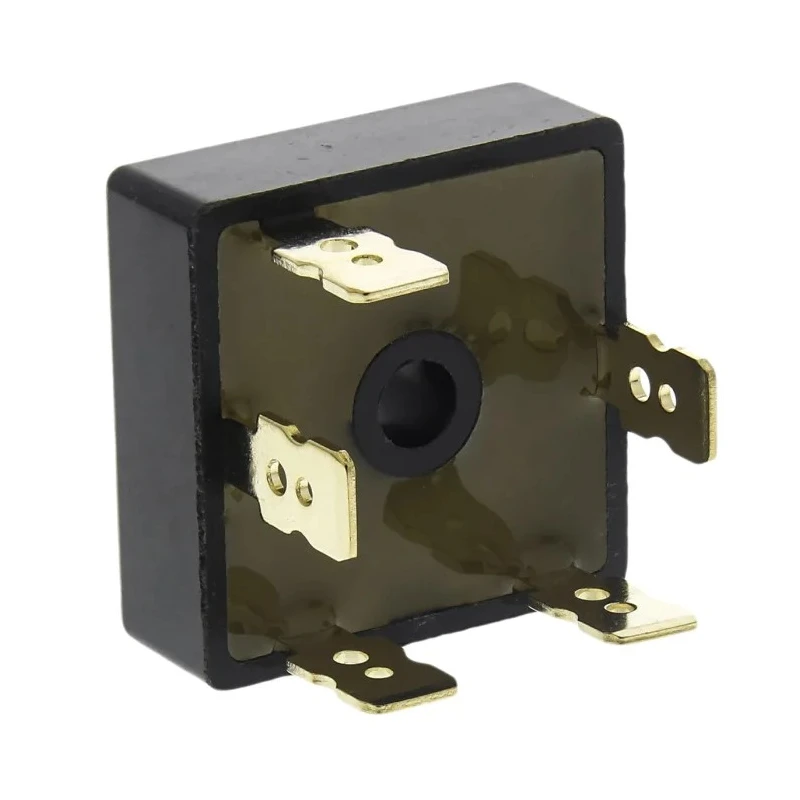

IXYS Bridge Rectifier Module 1200 V 600 A, 5-Pin Single VUO36-12NO8

IXYS VUO36-12NO8 Bridge Rectifier Module is a three-phase semiconductor device designed for converting alternating current (AC) to direct current (DC) in power electronics applications. This module offers a peak reverse repetitive voltage of 1200 V and can handle a continuous forward current of 35 A, making it suitable for medium-power scenarios.

Constructed with screw mount type and housed in a FO-BB package, it features 5 pins for connectivity and easy mechanical fastening. The module can operate reliably at temperatures up to 150°C and down to -40°C, ensuring performance stability in industrial and commercial environments.

This bridge rectifier module exhibits very low forward voltage drop and minimal leakage current, which contribute to its efficiency and optimized thermal management. The device’s compact size (28.5 mm length x 28.5 mm width x 10 mm height) facilitates integration into various electronic circuits. The VUO36 series is known for its durability and ease of mounting with a single screw.

Key benefits include improved thermal behavior to enhance operational reliability and compliance with UL registration (E 72873), signifying adherence to safety and quality standards. The module is ideal for applications in industrial automation, power supplies, and electrical equipment requiring stable DC power conversion.

Operates with a peak reverse repetitive voltage of 1200 V. Capable of handling a forward current of 35 A continuously. Equipped with 5 pins and screw mount type for secure installation. Has a maximum operating temperature of 150°C for durability in harsh environments.

Features very low forward voltage drop for reduced power loss. Designed with improved thermal behavior for enhanced reliability. Compact dimensions of 28.5 mm length, 28.5 mm width, and 10 mm height. Configured as a single bridge rectifier for ease of integration.

Peak non-repetitive forward surge current is rated at 600 A. Low leakage current and compliance with UL registration standards.

This IXYS Bridge Rectifier Module is a reliable choice for engineers and technicians working in electronics manufacturing, power conversion systems, and industrial automation projects. For more solutions in bridge rectifiers and semiconductor modules, explore the wide range available at EnvMart.
