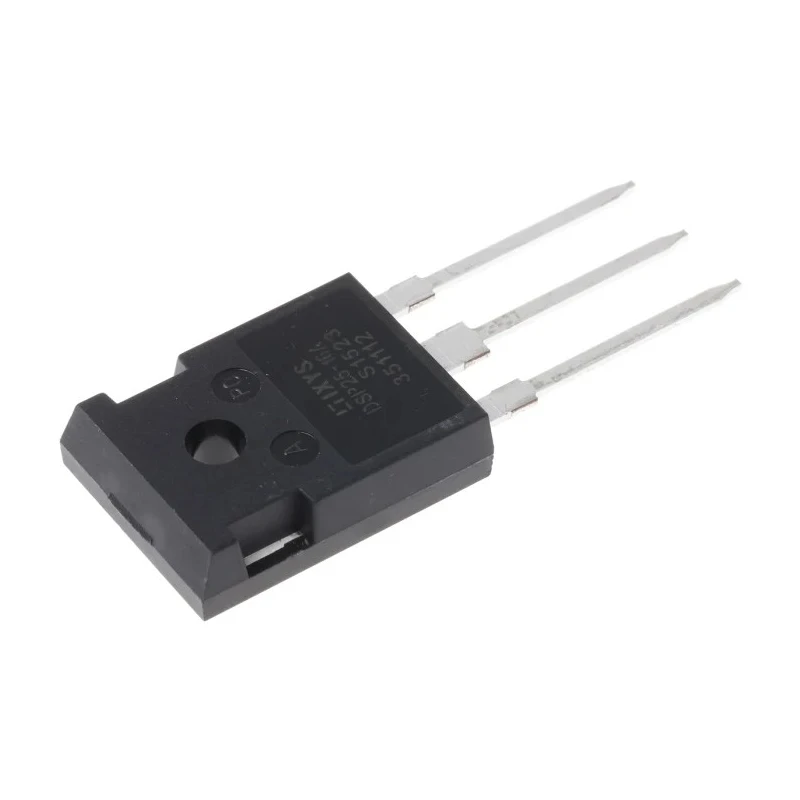

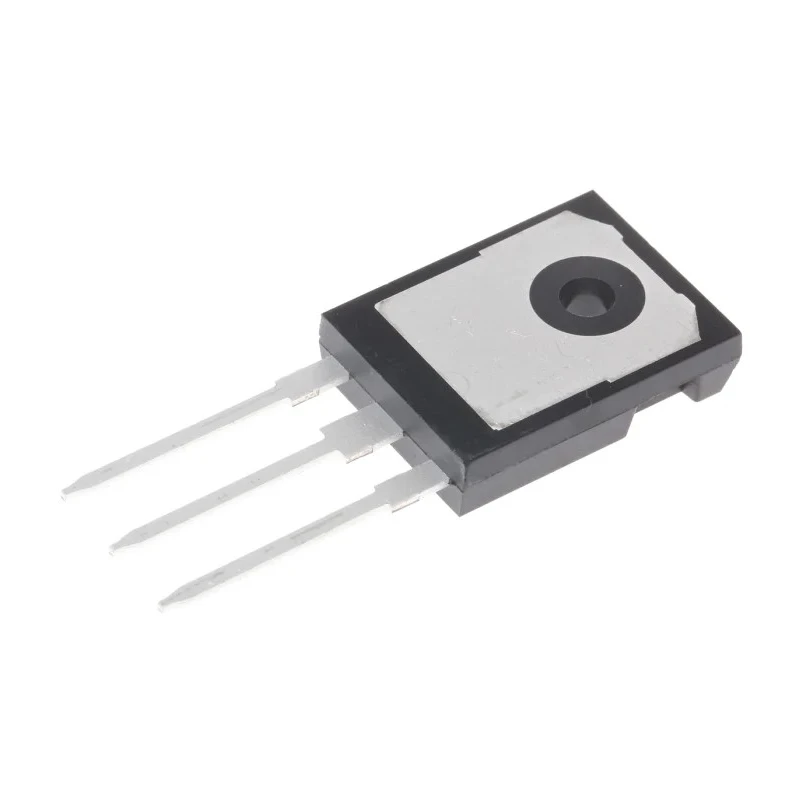

IXYS 1600 V 28 A General Purpose Rectifier Diode 3-Pin TO-247AD DSP25-16A
Specifications
| Country of Origin | India |
|---|---|
| Brand | IXYS |
| Height | 21.46mm |
| Length | 16.26mm |
| Model | DSP25-16A |
| Width | 5.3mm |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 180°C |
| Package Type | TO-247AD |
| Minimum Operating Temperature | -40°C |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 28A |
| Peak Reverse Repetitive Voltage Vrrm | 1600V |
| Diode Configuration | Series |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 2mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 330A |
| Maximum Forward Voltage Vf | 1.6V |
| IXYS 1600 V 45 A Diode General Purpose 3-Pin TO-247AD DSP45-16ABrand | IXYS |
Key Features
- Designed for general purpose rectification applications.
- 3-pin through hole mounting with TO-247AD package type.
- Maximum continuous forward current of 28 amperes.
- Peak reverse repetitive voltage of 1600 volts ensures high voltage tolerance.
- Forward voltage drop of 1.6 volts enhances efficiency in power conversion.
- Wide operating temperature range from -40 °C to 180 °C.
- Peak non-repetitive forward surge current capability up to 330 amperes.
- Compact dimensions with length 16.26 mm, width 5.3 mm, and height 21.46 mm.
Product Description
IXYS DSP25-16A is a general purpose rectifier diode designed for reliable performance in electronic and power semiconductor circuits. It features a 3-pin through-hole configuration housed in a robust TO-247AD package, suitable for mounting in various industrial and commercial applications.
This diode supports a maximum continuous forward current of 28 amperes and withstands a peak reverse repetitive voltage of 1600 volts, making it appropriate for high voltage power rectification tasks. The device displays a forward voltage drop of 1.6 volts which helps in minimizing power loss during conduction.
Its operating temperature range from -40 °C to 180 °C ensures stable performance under harsh environmental conditions. The diode also has a peak non-repetitive forward surge current rating of 330 amperes to handle short-term overloads effectively.
Compact physical dimensions (16.26 mm length, 5.3 mm width, 21.46 mm height) allow for efficient space usage on circuit boards, supporting advanced electronic designs in industrial, laboratory, and manufacturing settings.
The IXYS DSP25-16A rectifier diode is widely used in power supplies, motor controls, inverters, and other electronic circuits requiring robust diode performance with general purpose rectification capabilities.
Designed for general purpose rectification applications. 3-pin through hole mounting with TO-247AD package type. Maximum continuous forward current of 28 amperes. Peak reverse repetitive voltage of 1600 volts ensures high voltage tolerance.
Forward voltage drop of 1.6 volts enhances efficiency in power conversion. Wide operating temperature range from -40 °C to 180 °C. Peak non-repetitive forward surge current capability up to 330 amperes. Compact dimensions with length 16.26 mm, width 5.3 mm, and height 21.46 mm.
Ideal for use in industrial, power electronics, and semiconductor applications. Explore the extensive IXYS range in the Semiconductor category at EnvMart for reliable diode components suitable for your design and manufacturing needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is 28 amperes.
This diode has a peak reverse repetitive voltage rating of 1600 volts.
The forward voltage drop for this diode is 1.6 volts, which enhances efficiency in power conversion.
It operates within a temperature range from -40 °C to 180 °C.
The diode has dimensions of 16.26 mm in length, 5.3 mm in width, and 21.46 mm in height.
This model features a 3-pin through-hole mounting configuration.
The diode can handle a peak non-repetitive forward surge current of up to 330 amperes.
It is commonly used in power supplies, motor controls, inverters, and other electronic circuits requiring general purpose rectification.
The diode configuration for this model is series.
The peak reverse current rating for this diode is 2 mA.
This diode is housed in a TO-247AD package type.
The country of origin for this diode is India.
