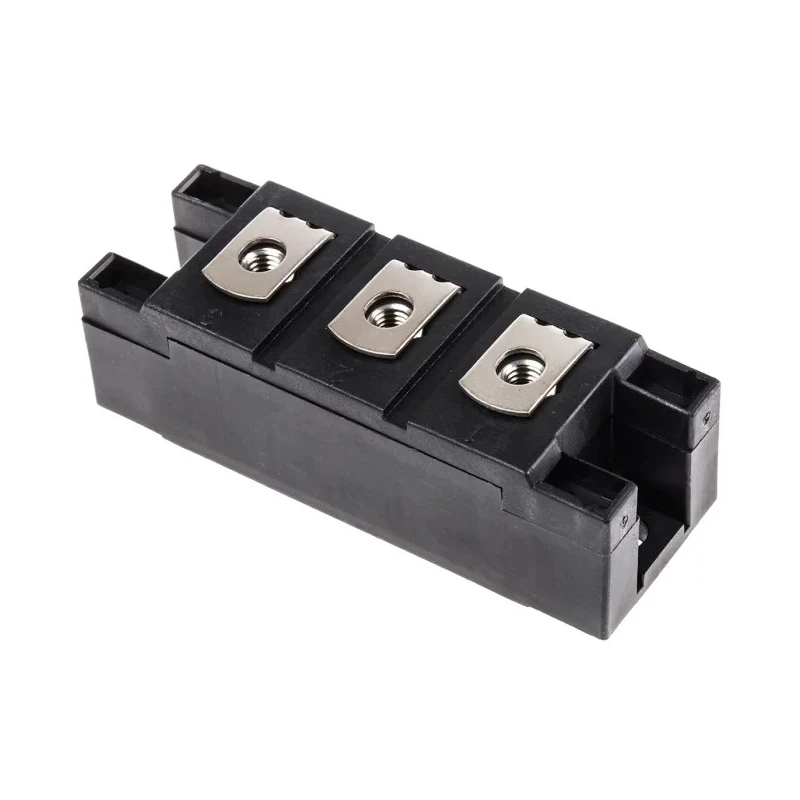

IXYS 1600 V 190 A General Purpose Diode Panel Mount Y4-M6 Package MDD172-16N1

The IXYS MDD172-16N1 is a high-performance general purpose diode designed for panel mounting, housed in a Y4-M6 package configuration. It supports a maximum continuous forward current of 190 A and a peak reverse repetitive voltage of 1600 V, making it suitable for demanding industrial and electronic power applications.

This diode’s three-pin series configuration allows for efficient electrical conduction with a maximum forward voltage drop of 1.15 V, optimizing energy efficiency and thermal management. It operates reliably over a wide temperature range from -40°C up to 150°C, suitable for harsh environments including industrial, manufacturing, and power supply systems.

With a peak non-repetitive forward surge current capacity of 7.13 kA, this diode can handle transient surges without degradation. Its compact dimensions (94 mm length, 34 mm width, and 30 mm height) facilitate easy integration into existing panel-mounted electronic assemblies.

The low peak reverse current of 20 mA minimizes leakage and power loss. The IXYS MDD172 series is UL recognized, ensuring adherence to international quality and safety standards. This general purpose rectifier diode is ideal for industrial power control, electronic rectification, and other semiconductor applications requiring robust and reliable diodes.

Panel mount type with Y4-M6 package suitable for robust installations. Three-pin diode configuration ensuring reliable electrical connection. Maximum forward voltage of 1.15 V for efficient operation. Wide operating temperature range from -40°C to 150°C for diverse environments.

Peak non-repetitive forward surge current rating of 7.13 kA for transient conditions. Compact dimensions of 94 mm length, 34 mm width, and 30 mm height for easy integration. Low peak reverse current of 20 mA ensuring minimal leakage.

General purpose rectifier type suitable for multiple industrial applications. UL recognized component for quality assurance.

This diode is extensively used in industrial, manufacturing, electronic power, and HVAC applications where dependable rectification performance is required. Explore more IXYS diodes and semiconductor components on EnvMart for your technology and engineering needs.
