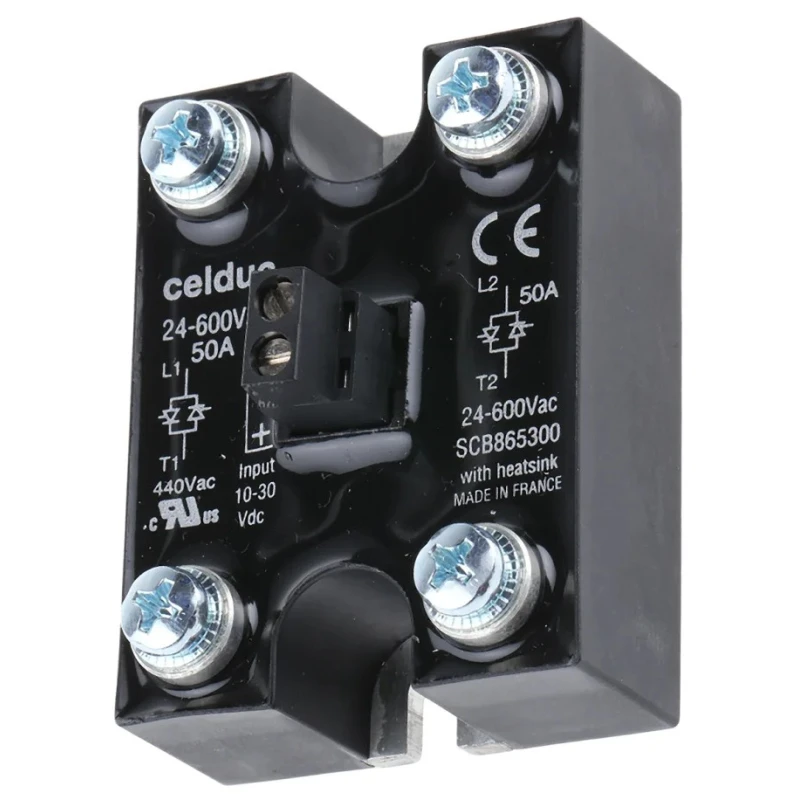

Celduc SC Series Solid State Relay 50 A Load 600 V AC Load Panel Mount Thyristor Output SCB865300

Free Delivery in India | Lowest Global Shipping Charges

Celduc SC Series Solid State Relay 50 A Load 600 V AC Load Panel Mount Thyristor Output SCB865300

Name: Celduc SC Series Solid State Relay 50 A Load 600 V AC Load Panel Mount Thyristor Output SCB865300
Brand: Celduc
SKU: 181704
Price: 258.09 USD
Availability: InStock



Category Solid State Relay Brand Celduc Condition New

Specifications

Country of Origin	France
Brand	Celduc
Height	44.5mm
Length	85mm
Model	SCB865300
IP Rating	IP20
Width	44.5mm
Mount Type	Panel
Output type	Thyristor
Series	SC
Maximum Operating Temperature	100°C
Minimum Operating Temperature	-40°C
Terminal type	Screw
Switching Function	Zero Cross Switching
Maximum Load Current	50A
Standards/Approvals	UR
Maximum Load Voltage	600V ac
Minimum Load Voltage	24V ac
Minimum Control Voltage	10V
Maximum Control Voltage	30V
Off State Leakage Current	3mA
SCB865300 relay	one control for 2 paths
Optional IP00 protection	1K470000 cover

Key Features

Supports zero cross switching for reduced electrical noise.
Equipped with thyristor output for reliable switching.
Panel mount type with screw terminals provides secure installation.
Operates within a wide temperature range of -40°C to 100°C.

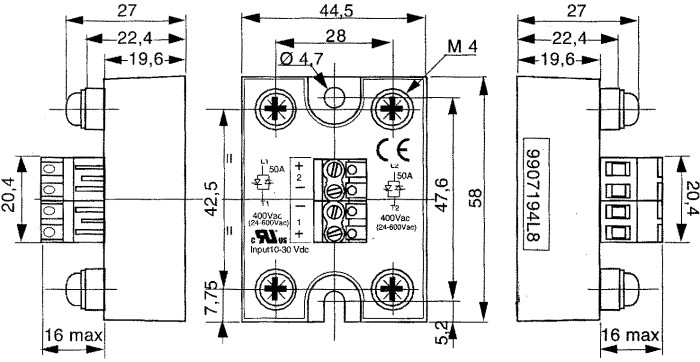

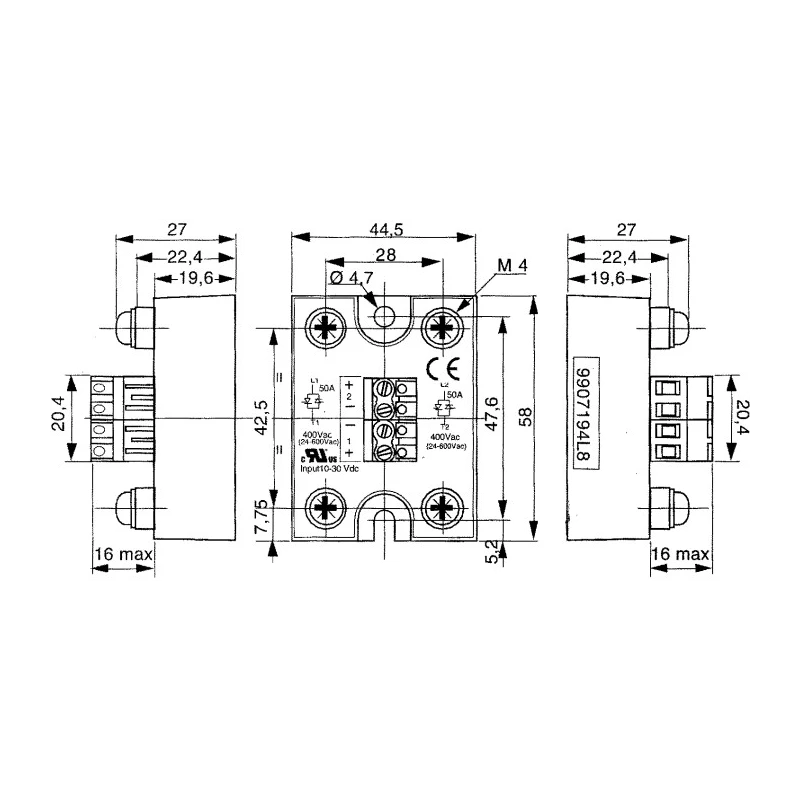

Compact footprint measuring 85 mm length and 44.5 mm width and height.
IP20 rated for protection against solid objects larger than 12 mm.
Off-state leakage current of 3 mA ensures minimal power loss when idle.
Designed for use in three-phase or two single-phase applications with one control for two paths.

Product Description

Celduc SCB865300 Solid State Relay is a high-performance industrial relay designed for panel mounting applications requiring 50 A maximum load current and 600 V AC load voltage. This relay utilizes thyristor output technology and supports zero cross switching function, which significantly reduces electrical noise and ensures reliable switching performance.

The relay is built for durability and reliability in harsh industrial environments, with an operating temperature range from -40°C to 100°C. It has a compact footprint of 85 mm in length and 44.5 mm in both width and height, enabling space-saving installation in control panels.

Its IP20 rating provides protection against solid objects larger than 12 mm, ensuring safe and dependable operation. The SCB865300 model supports one control for dual path switching, making it suitable for three-phase applications or two single-phase applications. It features screw-type terminals for secure and easy wiring.

The off-state leakage current is rated at a low 3 mA to minimize power loss when the relay is inactive. An optional IP00 protection cover (part number 1K470000) is available for this relay to provide added protection.

Manufactured in France, the Celduc SC Series Solid State Relay SCB865300 is widely used in industrial automation, electrical control systems, machinery protection, and HVAC systems. Its robust design and precise control capabilities make it an excellent choice for demanding environments requiring reliable electronic switching.

Supports zero cross switching for reduced electrical noise. Equipped with thyristor output for reliable switching. Panel mount with screw terminals for secure installation. Operation temperature range from -40°C to 100°C for versatile use.

Compact dimensions: 85 mm length and 44.5 mm width and height. IP20 rated for protection against solid objects over 12 mm. Low off-state leakage current at 3 mA reduces energy losses. Suitable for three-phase or dual single-phase control applications.

Optional IP00 protection cover available (1K470000). Explore the extensive range of Celduc Solid State Relays and related industrial electrical components available at EnvMart for your automation and control needs.
