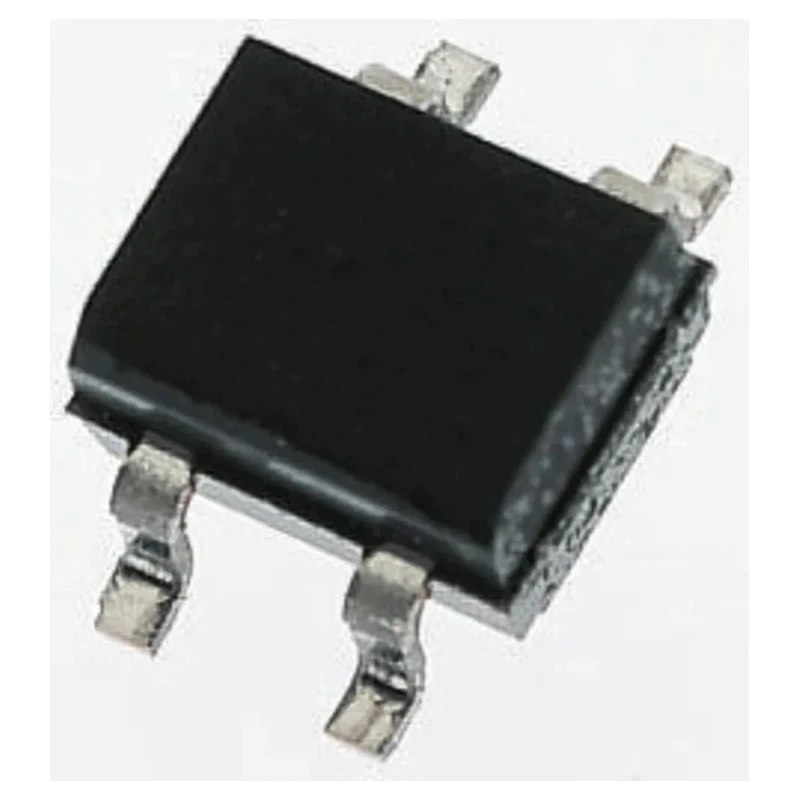

Vishay Bridge Rectifier 800 V 50 A 4-Pin Surface Mount DFS Package DF08S-E3/77

Vishay DF08S-E3/77 Bridge Rectifier is a high-performance discrete semiconductor device designed for industrial and electronic applications requiring reliable AC to DC conversion. This Bridge Rectifier operates at a peak reverse repetitive voltage of 800 V and a forward surge current capacity of 50 A, ensuring sustained operation under demanding electrical loads.

Encased in a compact DFS surface mount package, the device optimizes board space for modern electronic devices while delivering efficient heat dissipation. The 4-pin single-phase configuration accurately converts AC input to DC output, suitable for full-wave rectification in power supplies and converters.

Key features include a low DC reverse current of 5 µA and a peak forward voltage of 1.1 V, contributing to minimal energy loss and enhanced efficiency. The operational temperature range from -55°C to 150°C ensures stable performance across diverse environmental conditions. This rectifier supports automated PCB assembly processes using reflow soldering techniques, facilitating high-volume manufacturing.

Its robust design makes it ideal for use in industrial electronics, power supply systems, automation equipment, and other applications where reliable rectification is crucial. The DF series by Vishay is recognized for superior surge current handling, thermal stability, and dependable long-term operation.

Compact DFS package supports surface mount PCB applications. High surge current capability up to 50 A. Low DC reverse current enhances efficiency. Wide operating temperature range from -55°C to 150°C. Single-phase full-wave rectifier configuration.

Supports automated reflow soldering for high-volume production. Ideal for industrial electronics, power supplies, and automation equipment. Reliable operation with peak forward voltage of 1.1 V. Explore the full range of Vishay semiconductor products for your industrial and electronic component needs on EnvMart.
