Nexperia 1-Element Bi-Directional ESD Protection Diode 45W 2-Pin SOD-882 PESD5V0V1BL,315

Free Delivery in India | Lowest Global Shipping Charges

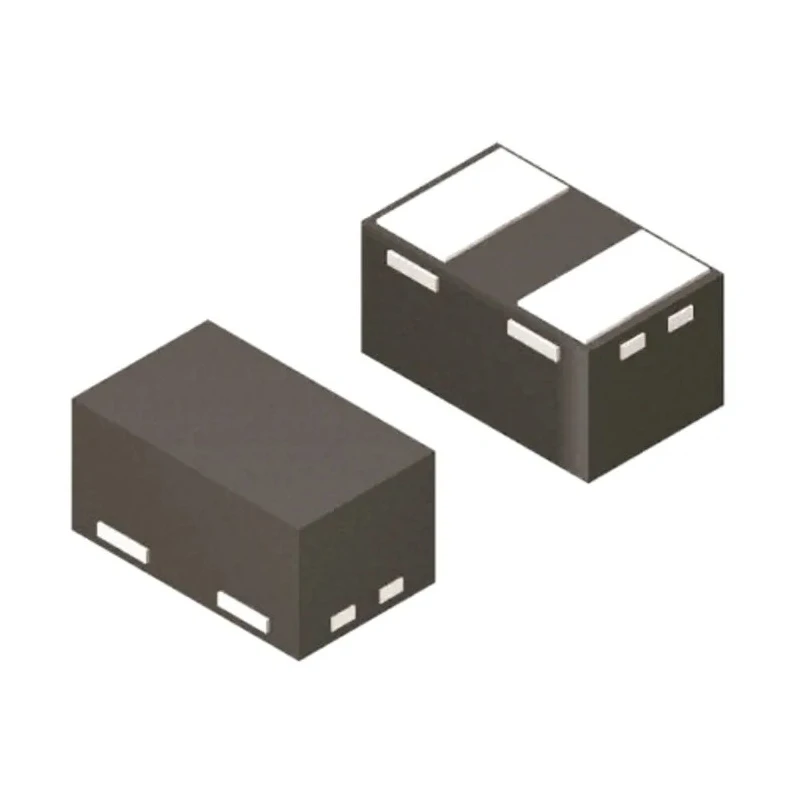

Nexperia 1-Element Bi-Directional ESD Protection Diode 45W 2-Pin SOD-882 PESD5V0V1BL,315

Name: Nexperia 1-Element Bi-Directional ESD Protection Diode 45W 2-Pin SOD-882 PESD5V0V1BL,315
Brand: Nexperia
SKU: 133191
Price: 0.09 USD
Availability: InStock



Category ESD Protection Diode Brand Nexperia Condition New

Specifications

Country of Origin	China
Brand	Nexperia
Height	0.5mm
Length	1.02mm
Model	PESD5V0V1BL,315
Width	0.62mm
Mount Type	Surface
Series	PESD
Maximum Operating Temperature	150°C
Package Type	SOD-882
Minimum Operating Temperature	-55°C
Pin Count	2
Number of Elements per Chip	1
Clamping Voltage VC	12.5V
Automotive Standard	AEC-Q101
Diode Configuration	Single
Direction Type	Bi-Directional
Minimum Breakdown Voltage Vbr	5.8V
Maximum Reverse Stand-off Voltage Vwm	5V
Peak Pulse Power Dissipation Pppm	45W
Test Current It	5mA
Maximum Peak Pulse Current Ippm	4.8A
Maximum Reverse Leakage Current	10nA

Key Features

Bi-directional diode configuration ensures effective ESD protection.
Minimum breakdown voltage of 5.8V with maximum reverse stand-off voltage of 5V.
Peak pulse power dissipation of 45W and peak pulse current of 4.8A for transient events.
Operates over a wide temperature range from -55°C to 150°C.
Low maximum reverse leakage current of 10nA ensures minimal loss.
Complies with automotive standard AEC-Q101 for quality assurance.
Ideal for protecting sensitive electronic components against electrostatic discharges and electrical transients.

Product Description

Nexperia PESD5V0V1BL,315 is a single-element bi-directional electrostatic discharge (ESD) protection diode designed to safeguard sensitive electronic circuits from electrostatic and transient voltage damages. This diode is engineered in a small surface-mounted device (SMD) 2-pin SOD-882 package, offering a compact footprint for modern PCB layouts.

With a peak pulse power dissipation rating of 45 watts and a peak pulse current capability of 4.8 amperes, it effectively absorbs high-energy transients. The diode exhibits a minimum breakdown voltage of 5.8 volts and a maximum reverse stand-off voltage of 5 volts, suited for protection on signal lines operating around these voltages.

Physical dimensions are minimized with a length of 1.02mm, width of 0.62mm, and height of 0.5mm, allowing it to fit into densely packed electronic assemblies. It operates reliably over a broad temperature range from -55°C to 150°C, suitable for diverse industrial and automotive environments.

The device features very low leakage current (max 10 nanoamperes) and adheres to the stringent AEC-Q101 automotive quality standard, which underscores its suitability for automotive electronics.

Applications include ESD protection for data lines, interfaces, and sensitive semiconductor inputs in consumer electronics, industrial controls, telecommunications, and automotive systems. By integrating this diode, manufacturers can enhance product reliability and reduce failure rates caused by sudden electrical surges.

Bi-directional ESD Protection Diode with single-element configuration. 45W peak pulse power dissipation ensures robust protection against transient voltages. Compact SOD-882 surface mount package for space-sensitive applications.

Wide operating temperature range from -55°C to 150°C. Low leakage current for minimal impact on circuit performance. Certified to AEC-Q101 automotive standard for quality and durability. Designed for protecting sensitive signal lines in industrial, automotive, and consumer electronics.

Choosing Nexperia PESD5V0V1BL,315 delivers dependable transient voltage suppression to safeguard your electronic devices against ESD events in critical environments. Explore more high-quality semiconductor components in our Electronics & Electricals category tailored for specialized industrial applications.
