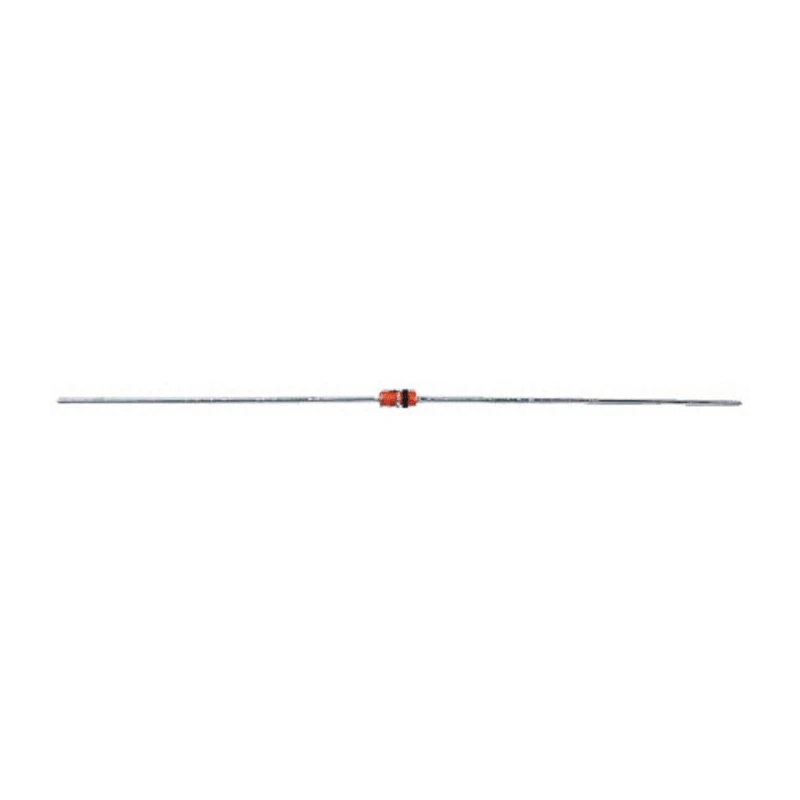

onsemi Small Signal 2-Pin DO-35 Diode 100 V 500 mA Fast Recovery 4 ns 1N4149TR

Free Delivery in India | Lowest Global Shipping Charges

onsemi Small Signal 2-Pin DO-35 Diode 100 V 500 mA Fast Recovery 4 ns 1N4149TR

Name: onsemi Small Signal 2-Pin DO-35 Diode 100 V 500 mA Fast Recovery 4 ns 1N4149TR
Brand: onsemi
SKU: 132540
Price: 0.02 USD
Availability: InStock



Category Discrete Semiconductor Brand onsemi Condition New

Specifications

Country of Origin	India
Diameter	1.91mm
Brand	onsemi
Height	4.56mm
Length	2.29mm
Model	1N4149TR
Width	81.28mm
Mount Type	Through Hole
Series	1N4149
Maximum Operating Temperature	175°C
Package Type	DO-35
Pin Count	2
Maximum Continuous Forward Current If	500mA
Peak Reverse Repetitive Voltage Vrrm	100V
Diode Configuration	Single
Rectifier Type	Small Signal
Peak Reverse Current Ir	100μA
Peak Non-Repetitive Forward Surge Current Ifsm	4A
Maximum Forward Voltage Vf	1V
Peak Reverse Recovery Time trr	4ns
1N4149	High Conductance Fast Diode

Key Features

High conductance fast diode ideal for switching circuits.
Maximum continuous forward current of 500 mA ensures reliable operation.
Peak reverse repetitive voltage rating of 100 V for robust reverse voltage tolerance.
Fast peak reverse recovery time of 4 ns supports high-speed switching.
Compact 2-pin DO-35 through-hole mount type for easy PCB integration.
Maximum forward voltage of 1 V minimizes power loss during conduction.
Peak non-repetitive forward surge current of 4 A for transient protection.
Operating temperature up to 175°C for durability in high-temperature environments.

Product Description

onsemi 1N4149TR is a small signal diode packaged in a 2-pin DO-35 through-hole mount, designed for general-purpose electronic switching and signal processing applications. Rated at a maximum continuous forward current of 500 mA and reverse voltage of 100 V, this diode provides reliable operation in compact form factors.

The diode features a fast recovery time of 4 nanoseconds and a low maximum forward voltage of 1 V, which is essential for high-speed switching circuits with minimal power dissipation. It supports a peak non-repetitive forward surge current of 4 A, enabling it to withstand transient surges without damage.

With its small dimensions - length 2.29 mm, diameter 1.91 mm, and height 4.56 mm - this diode is well suited for crowded PCBs and through-hole assembly. It is qualified for operation up to 175°C, making it suitable for industrial, laboratory, and consumer electronics environments requiring robust performance under thermal stress.

This high conductance fast diode is not automotive certified but widely used in power supplies, signal conditioning, switching circuits, and general semiconductor applications within the electronics and electrical industries.

High-speed diode optimized for switching applications. Compact DO-35 packaging for through-hole PCB mounting. Robust voltage and current ratings for reliable performance. Fast 4 ns reverse recovery time minimizes switching losses.

Durable operation up to 175°C ambient temperature. Applications include power supplies, signal processing, and electronic switching. Explore more semiconductors and discrete diodes at EnvMart to suit various industrial and electronic system design needs.

Explore more products in our Discrete Semiconductor category.
