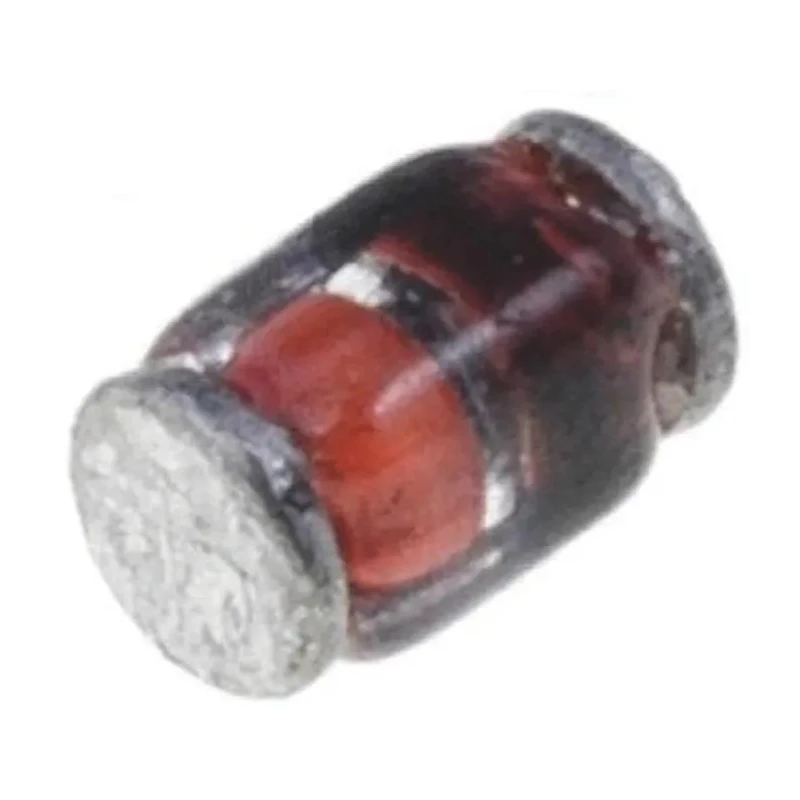

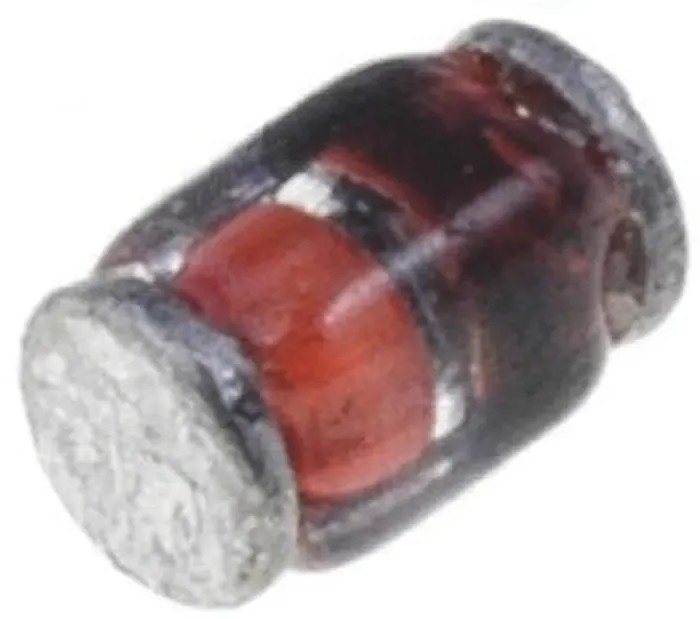

Vishay Silicon Junction Switching Diode, Single Configuration, 150 mA Forward Current, 100 V Reverse Voltage MCL4448-TR3

Free Delivery in India | Lowest Global Shipping Charges

Vishay Silicon Junction Switching Diode, Single Configuration, 150 mA Forward Current, 100 V Reverse Voltage MCL4448-TR3

Name: Vishay Silicon Junction Switching Diode, Single Configuration, 150 mA Forward Current, 100 V Reverse Voltage MCL4448-TR3
Brand: Vishay
SKU: 102777
Price: 0.07 USD
Availability: InStock



Category Discrete Semiconductor Brand Vishay Condition New

Specifications

Country of Origin	India
Diameter	1.2mm
Brand	Vishay
Height	1.2mm
Length	2mm
Model	MCL4448-TR3
Width	1.2mm
Mount Type	Surface
Series	MCL4448
Maximum Operating Temperature	175°C
Case	DO-204AL, molded epoxy over glass body
Package Type	MicroMELF
Sub Type	Silicon Junction
Minimum Operating Temperature	-65°C
Polarity	Color band denotes cathode end
Terminals	Matte tin plated leads, solderable per
Pin Count	2
Maximum Power Dissipation Pd	500mW
Diode Configuration	Single
Peak Non-Repetitive Forward Surge Current Ifsm	2A
Maximum Forward Voltage Vf	1V
Peak Reverse Recovery Time trr	8ns
Maximum Forward Current If	150mA
Maximum Peak Reverse Repetitive Voltage Vrrm	100V
Vishay Silicon Junction, Single, 150 mA, 2-Pin 100 V MicroMELFBrand	Vishay

Key Features

Features a superectifier structure for high reliability and low leakage current.
Cavity-free glass passivated junction ensures stability and durability.
Fast switching with low forward voltage drop of 1 V.
Capable of handling 2 A peak non-repetitive forward surge current.
Compact MicroMELF package with 2 pins suitable for surface mount applications.
Operates over a temperature range from -65°C to 175°C.
High forward surge capability and solder dip tolerance up to 275 °C for 10 seconds.
Color band marking indicates cathode polarity for easy identification.

Product Description

Vishay MCL4448-TR3 is a high-quality silicon junction switching diode designed for efficient, fast switching applications. Encased in a MicroMELF package, this diode supports a maximum forward current of 150 mA and can sustain a peak reverse repetitive voltage of 100 V, making it suitable for various electronics assemblies.

This diode features a superectifier structure with a cavity-free glass passivated junction that offers exceptional reliability and low leakage current, typically less than 0.2 μA. It provides a maximum forward voltage of 1 V, ensuring low power loss during forward conduction.

The device is capable of enduring a peak non-repetitive forward surge current of 2 A and supports operation in a wide temperature range from -65°C to 175°C. Its compact MicroMELF package (DO-204AL) with a length of 2 mm and diameter of 1.2 mm enables efficient space utilization and easy surface mounting.

Applications of the MCL4448-TR3 diode include high voltage rectification for G2 grids in CRTs and TVs, camera flash snubber circuits, and other fast switching electronic circuits requiring high efficiency and reliability.

The molded epoxy body meets UL 94 V-0 flammability rating for enhanced safety, and the matte tin plated terminals ensure reliable solderability complying with J-STD-002 and JESD 22-B102 standards. The diode’s polarity is clearly marked with a color band denoting the cathode end for straightforward circuit assembly.

Superectifier structure ensures high reliability. Glass-passivated junction limits leakage current. Fast switching diode with low forward voltage drop. High surge current tolerance enhances robustness. Small MicroMELF package suitable for surface mount technology.

Wide operating temperature range supports harsh environments. Safe, UL 94 V-0 compliant epoxy molding. Polarity marked with color band for easy installation.

This Vishay diode is ideal for use in industrial electronics, consumer electronics, telecommunications, and other manufacturing sectors demanding dependable Discrete Semiconductors. It is a versatile component for efficient power management and signal rectification in electronic designs.
