| Country of Origin | China |
|---|---|
| Brand | DiodesZetex |
| Height | 1.03mm |
| Length | 2.9mm |
| Model | BAV199-7-F |
| Width | 2.4mm |
| Mount Type | Surface |
| Series | BAV199 |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-23 |
| Sub Type | Silicon Junction |
| Minimum Operating Temperature | -65°C |
| Pin Count | 3 |
| Maximum Power Dissipation Pd | 250mW |
| Diode Configuration | Series |
| Peak Non-Repetitive Forward Surge Current Ifsm | 4A |
| Maximum Forward Voltage Vf | 1.25V |
| Peak Reverse Recovery Time trr | 3μs |
| Maximum Forward Current If | 160mA |
| Maximum Peak Reverse Repetitive Voltage Vrrm | 85V |
DiodesZetex BAV199-7-F is a silicon junction small signal switching diode designed for high reliability and fast switching in electronic circuits. It supports a maximum forward current of 160mA and a maximum peak reverse repetitive voltage of 85V, making it suitable for applications such as signal processing, low power rectification, and switching tasks.

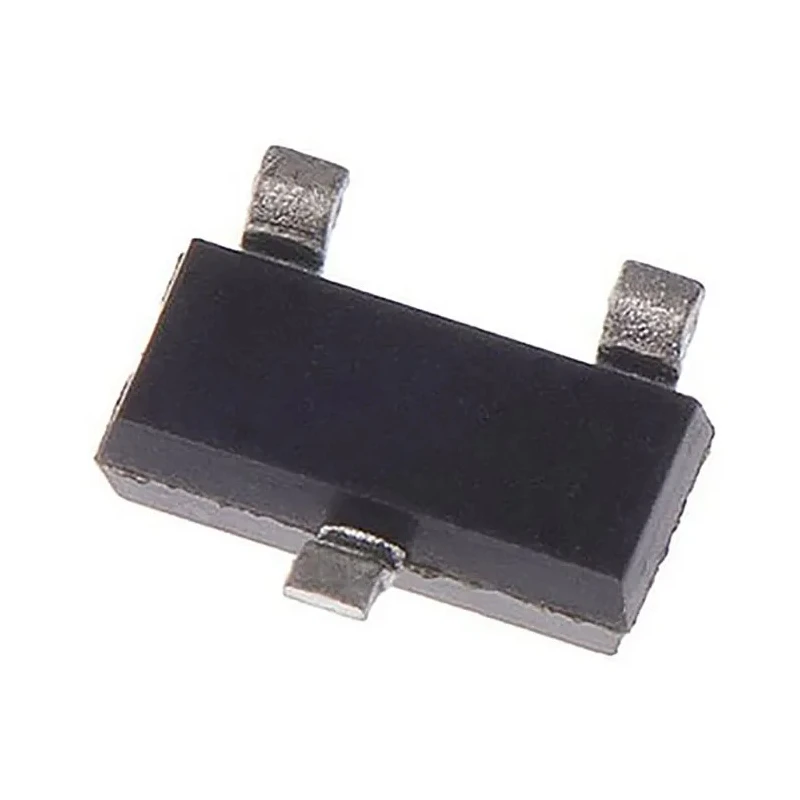

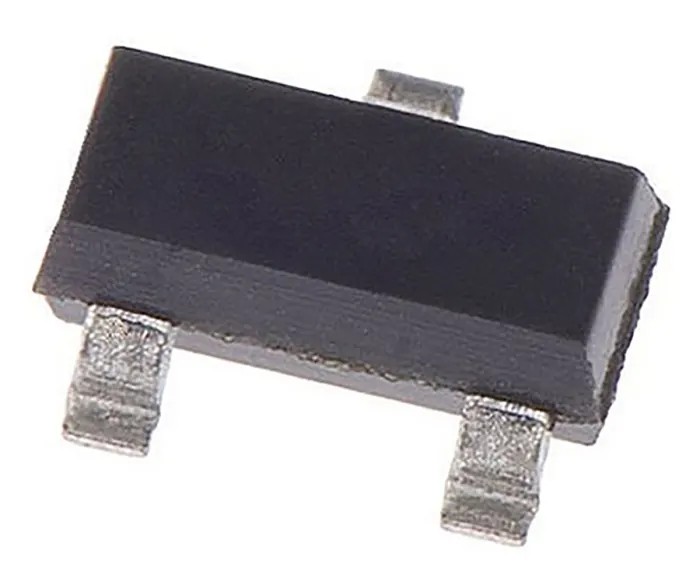

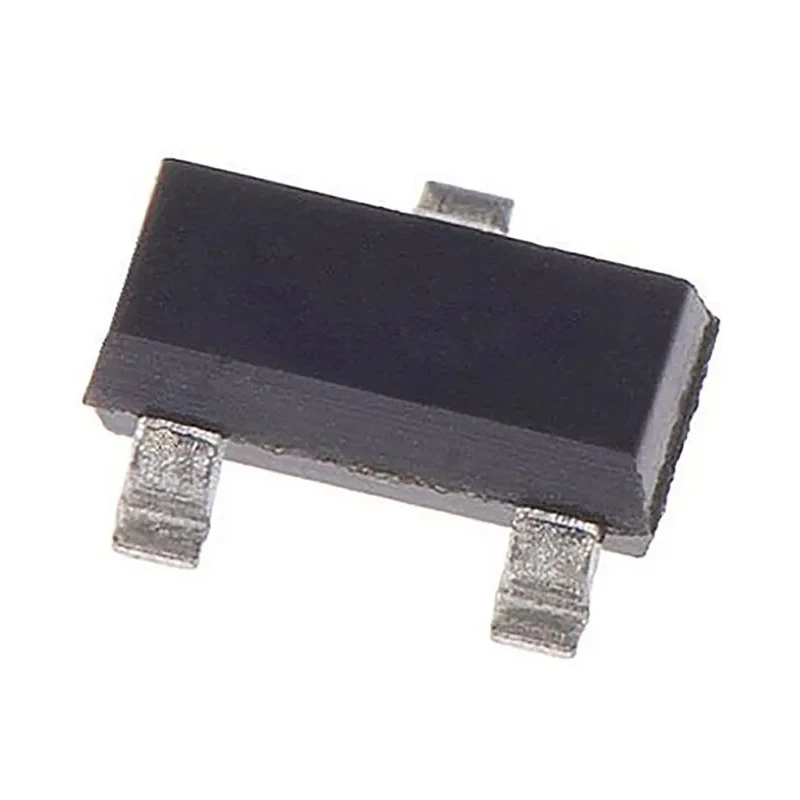

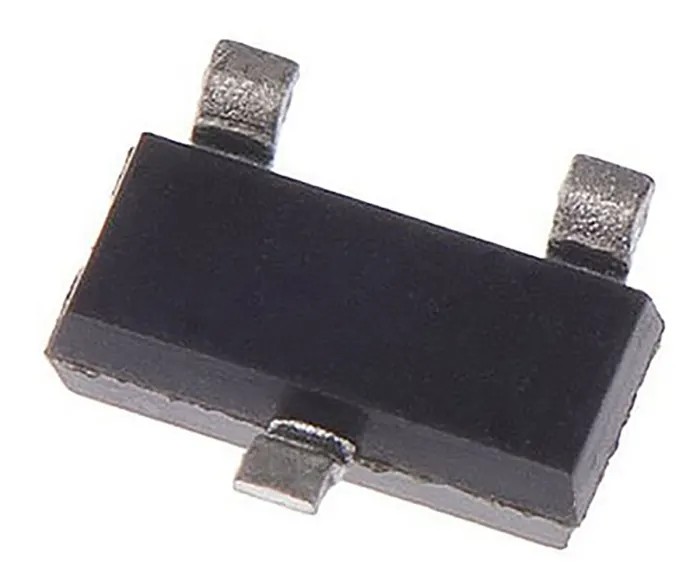

The diode comes in a surface-mounted SOT-23 3-pin package with compact physical dimensions (2.9mm length, 2.4mm width, 1.03mm height) allowing easy integration onto printed circuit boards with automated assembly processes.
With a peak reverse recovery time of just 3 microseconds, this diode ensures minimal switching losses and excellent performance in high-frequency circuits. It operates efficiently up to a maximum power dissipation of 250mW and supports wide temperature ranges from -65°C to 150°C, making it well suited for industrial, commercial, and automotive electronics where durability under varying conditions is crucial.
Surface mount SOT-23 package in a small 3-pin form factor. Maximum forward current: 160mA, ideal for signal and switching circuits. Peak reverse voltage: 85V for robust handling of voltage spikes. Maximum power dissipation of 250mW for efficient heat management.
Fast peak reverse recovery time of 3 microseconds for quick switching. Operational temperature range -65°C to 150°C ensuring stability in harsh environments. Maximum forward voltage of 1.25V optimizing power consumption.
Compact physical dimensions, facilitating space-saving electronic designs. Manufactured using reputable DiodesZetex technology. New condition and made in China.
This diode is suitable for electronic component applications in manufacturing, industrial automation, telecommunications, automotive electronics, and general purpose electronics prototyping and repair. It is a reliable choice for circuits requiring stable switching performance and durability.
