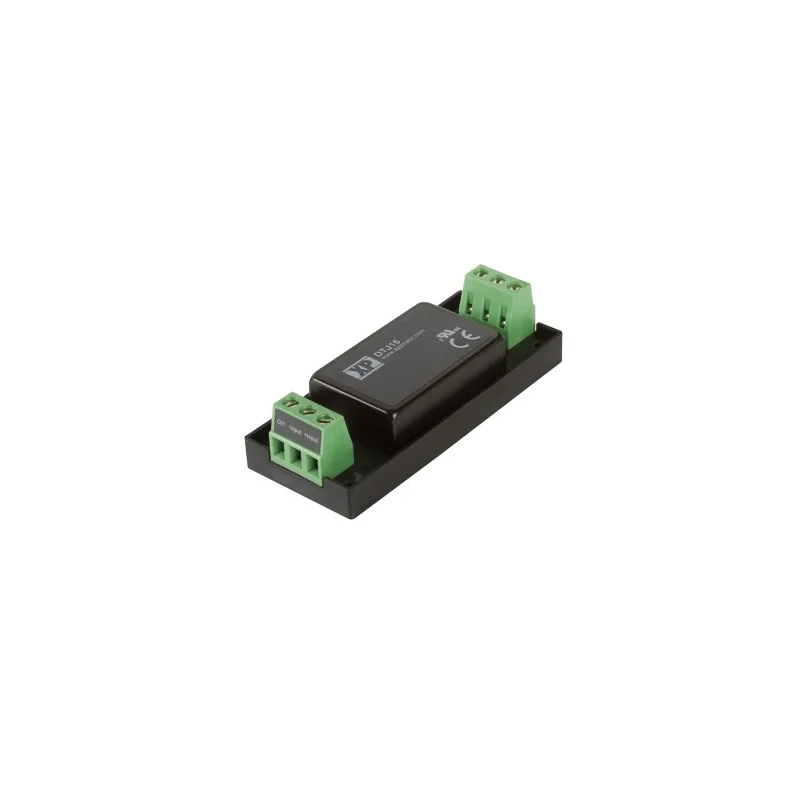

XP Power DC/DC Converter, 12V DC, ±12V Outputs, 630mA, 75V DC Max Input, 18V Min Input, 15W, Chassis Mount, -40°C to DTJ15
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power DTJ15 DC/DC Converter, 12V dc/ 630 mA, 75 |
| Brand | XP Power |
| Efficiency | 89% |
| Length | 76.2mm |
| Model | DTJ15 |
| Depth | 19.4mm |
| Gross Weight | 45g |
| Width | 31.4mm |
| Mount Type | Chassis |
| Series | DTJ15 |
| Output Current | 0.63 A |
| Maximum Operating Temperature | 100°C |
| Package Type | Encapsulated |
| Minimum Operating Temperature | -40°C |
| MTBF | 4mH |
| Number of outputs | 2 |
| Ripple and Noise | 60mV Pk-Pk |
| Maximum Output Power | 15W |
| Maximum Input Voltage | 75V dc |
| Minimum Input Voltage | 18V |
| Number of Pins | 6 |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 630mA |
| Isolation Voltage | 3kV dc |
| Output Current 2 | -0.63A |
| Input Ratio | 4:1 |
| Output Voltage 2 | -12V dc |
| Input Ratio4 | 1 |
| Wide 4 | 1 input range nominal 12V, 24V, 48VDC |
Key Features
- Offers dual ±12V regulated outputs with 630mA output current.
- Features wide input voltage range from 18V up to 75V DC for flexible integration.
- Compact encapsulated chassis mount for space-efficient installation.
- Operates reliably in extreme environments with -40°C to 100°C temperature range.
- Rated for 15W maximum output power, suited for demanding loads.
- Provides high isolation voltage of 3kV DC for safety and noise immunity.
- Long-term operation supported by MTBF over 4 million hours.
- Efficient design with 89% conversion efficiency, minimizing heat dissipation.
Product Description
The XP Power DTJ1548D12 is a chassis-mount DC-DC converter engineered for demanding industrial and commercial applications requiring reliable dual output performance. This converter supplies regulated ±12V DC outputs and is capable of delivering up to 630mA output current, making it suitable for powering sensitive electronic circuits and control systems. Its wide 4:1 input voltage range covers 18V to 75V DC, allowing seamless operation in varied environments and compatibility with battery, solar, or other DC sources.
The DTJ1548D12 is designed for encapsulated, compact chassis mounting, with dimensions measuring 76.2mm in length, 31.4mm in width, and 19.4mm in depth. Its robust copper case construction enhances thermal dissipation and shields against electromagnetic interference. The device operates reliably across extreme temperatures, from -40°C to 100°C, ensuring stable performance in harsh industrial settings. With a maximum output power of 15W, the converter can handle demanding loads without compromising efficiency or stability.
The converter provides high isolation voltage of 3kV DC, essential for protecting equipment and minimizing noise between input and output. With industry-leading MTBF greater than 4 million hours, the DTJ1548D12 is built for long-term uninterrupted operation. Its efficiency of 89% helps minimize energy loss, reducing thermal build-up and improving overall system reliability. Protective features include short circuit and input reverse polarity safeguards, and soft start to protect downstream devices.
Additional functional benefits include support for remote on/off and voltage trim, providing enhanced flexibility for system control and integration. The chassis-mount form factor, complemented by options for DIN rail attachment, facilitates rapid installation in power distribution cabinets, control panels, and instrumentation racks. Typical use cases span industrial automation, process control, manufacturing, energy conversion, and instrumentation.
With dual regulated outputs and advanced protection, the DTJ1548D12 DC-DC converter meets the needs of industrial users seeking precision power in rigorous environments. Satisfy your power conversion requirements in DC-DC Converter, Power Supply Systems and industrial automation through EnvMart's rich category selection of XP Power products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It provides an output current of 630mA for each of its dual ±12V outputs.
The input voltage range is from 18V to 75V DC, allowing for flexible integration with various DC sources.
The dimensions of the converter are 76.2mm in length, 31.4mm in width, and 19.4mm in depth.
The maximum output power is 15W, suitable for handling demanding loads.
It has an efficiency rating of 89%, which helps minimize energy loss and thermal build-up.
It operates reliably in a temperature range from -40°C to 100°C.
This model is designed for chassis mounting, facilitating space-efficient installation.
The converter provides a high isolation voltage of 3kV DC, ensuring safety and noise immunity.
It features two outputs, providing dual ±12V regulated outputs.
It includes protective features such as short circuit protection, input reverse polarity safeguards, and a soft start function.
The mean time between failures (MTBF) is over 4 million hours, indicating long-term operation support.
It is suitable for applications in industrial automation, process control, manufacturing, and energy conversion.
