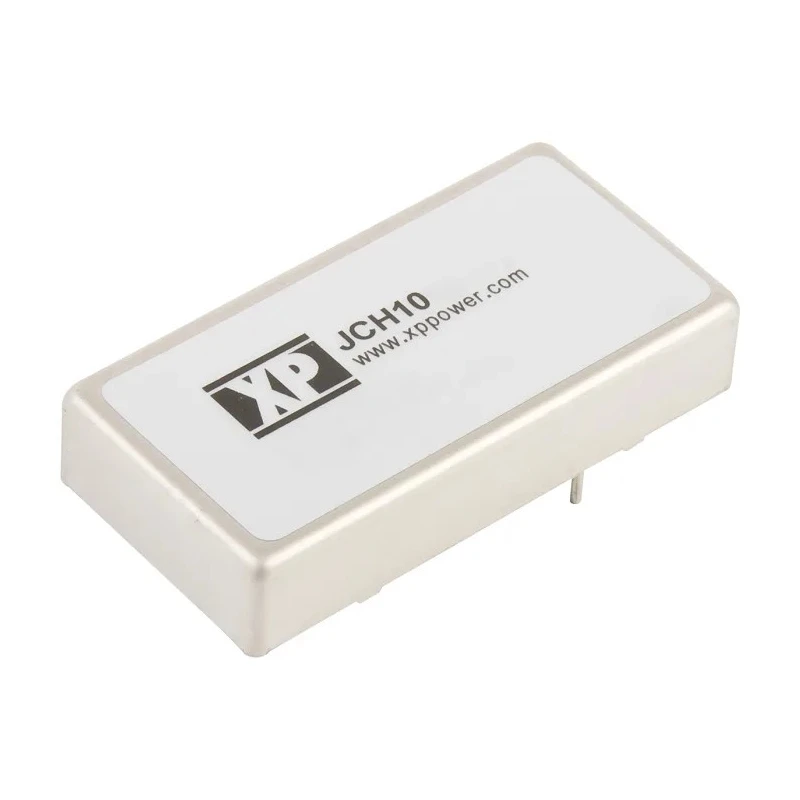

XP Power 10 W Isolated DC/DC Converter, 15 V DC Output, 330 mA, 18-36 V DC Input, Through Hole DIP Package JCH1024D15

XP Power JCH1024D15 is a high reliability, 10 W isolated DC/DC converter designed to deliver a constant 15 V DC output voltage at 330 mA output current from input voltages between 18 V and 36 V DC. Packaged in a through-hole dual in-line package (DIP) suitable for board mounting, this converter is optimized for industrial and electronic applications requiring isolated power supplies.

The device features a 2:1 input ratio, supporting various unregulated input ranges, while providing robust 1.5 kV DC isolation between input and output. It efficiently converts voltages with an efficiency rating of up to 84%, reducing thermal dissipation and energy costs.

Operating reliably over a wide temperature range from -40 °C to 100 °C, the JCH1024D15 is convection-cooled making it suitable for confined spaces without active cooling. Its compact dimensions of 50.8 mm length, 25.4 mm width, and 10.16 mm depth facilitate easy integration in standard industrial equipment.

Additional features include continuous short circuit protection, contributing to device safety and longevity. The converter complies with RoHS directives, ensuring it meets environmental quality standards.

The mean time between failures (MTBF) of 1,100,000 hours underlines the product’s durability for long-term use in industrial automation, control systems, telecommunications, and instrumentation. The JCH series represents a trusted choice for isolated power conversion needs in demanding electronics, laboratory, manufacturing, and HVAC equipment.

This isolated DC/DC converter offers a wide input voltage range of 18 V to 36 V DC. The device is packaged in a DIP through-hole mount format suitable for board mounting. It provides high isolation voltage of 1.5 kV DC for safe operation.

Designed for reliable performance from -40 °C to 100 °C operating temperature range. Efficiency of the converter reaches up to 84 percent for energy-saving operation. The package dimensions are 50.8 mm length, 25.4 mm width, and 10.16 mm depth.

The JCH series supports continuous short circuit protection to enhance durability. It is convection-cooled and meets RoHS environmental standards. The mean time between failures (MTBF) is rated at 1,100,000 hours indicating high reliability.
