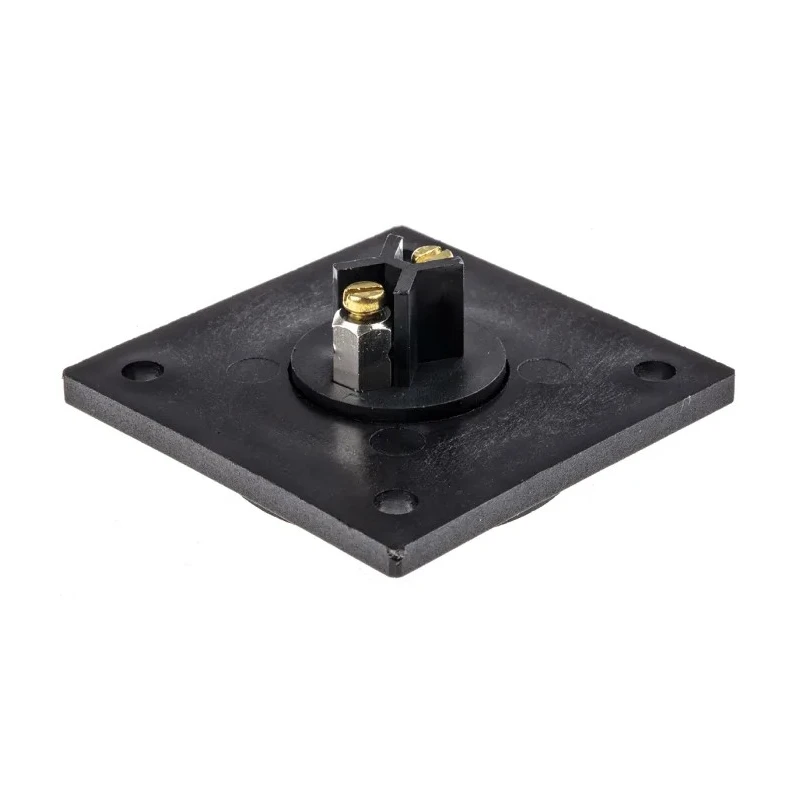

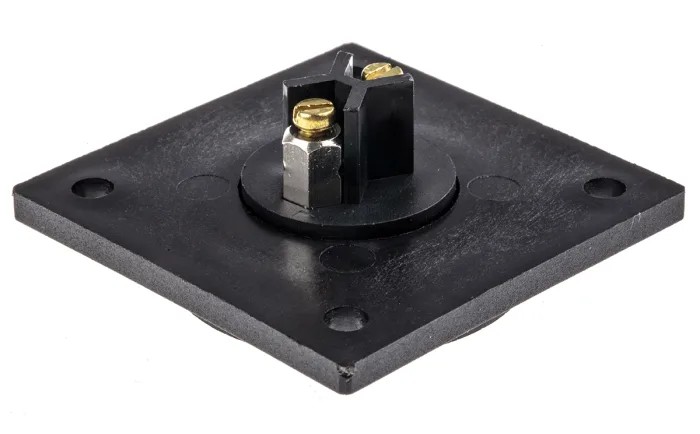

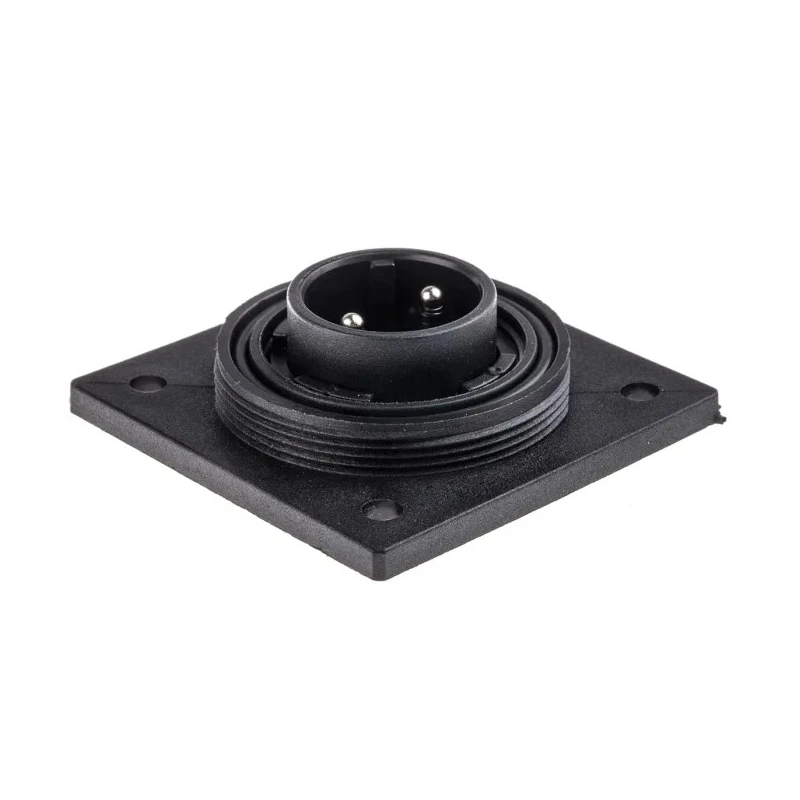

Bulgin Circular Connector 2 Contacts Flange Plug Male IP68 Standard Buccaneer Series PX0764/P
Specifications
| Country of Origin | Tunisia |
|---|---|
| Voltage | 250V |
| Brand | Bulgin |
| Orientation | Straight |
| Current | 12A |
| Model | PX0764/P |
| IP Rating | IP68 |
| Mount Type | Flange |
| Housing Material | Polymer |
| Contact Material | Brass |
| Series | Standard Buccaneer |
| Termination Type | Screw |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -20°C |
| Contact Plating | Nickel |
| Number of Contacts | 2 |
| Contact Gender | Male |
| Shell Size | 44.4 mm |
| Mating Type | Threaded |
| Connector Size | Standard |
| Plug/Socket | Plug |
Key Features
- This circular connector has 2 contacts with a flange mount type for secure installation.
- The plug is male gender with screw termination for easy assembly without special tooling.
- It is part of the Standard Buccaneer series, providing robust power connection up to 12A current and 250V voltage.
- Rated IP68, it offers dust-tight and waterproof protection suitable for harsh environments.

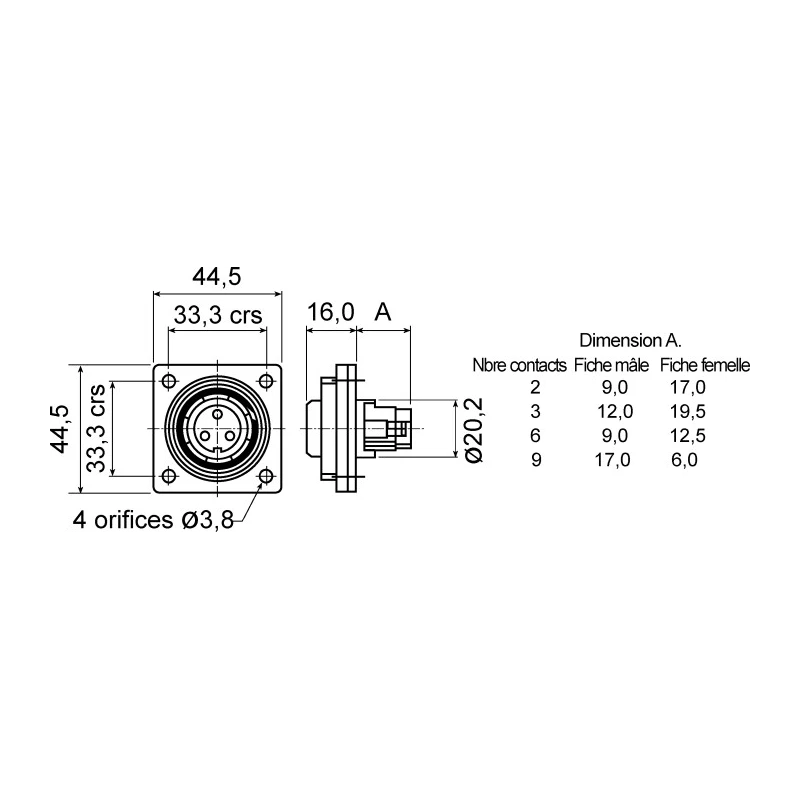

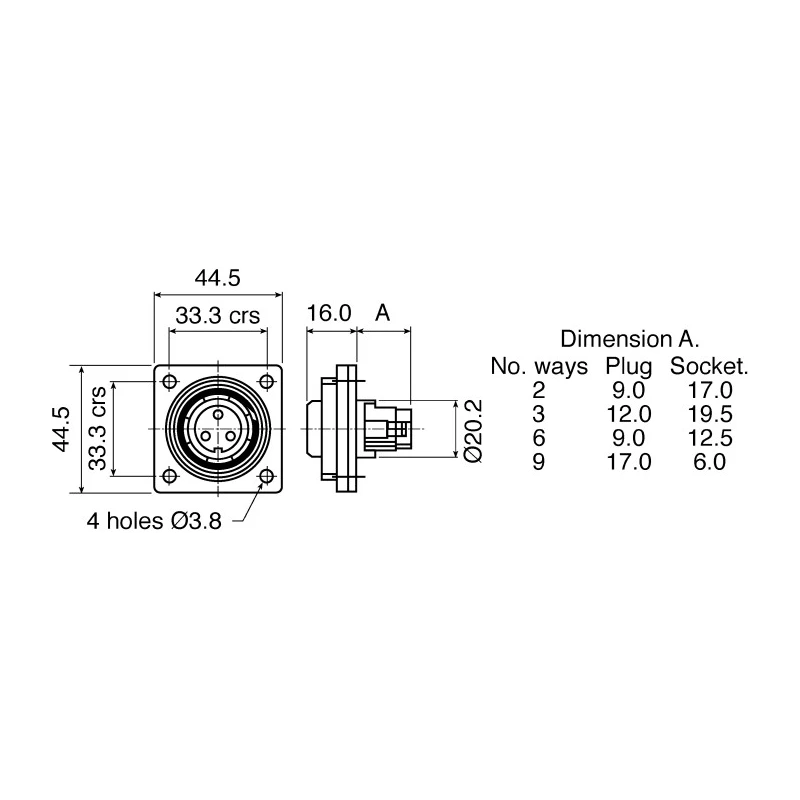

- The connector shell size is 44.4 mm with a threaded mating type ensuring positive locking and correct alignment.
- Operating temperature ranges from -20°C to 70°C for reliable performance in diverse conditions.
- The housing is made of durable polymer with brass contacts plated in nickel for corrosion resistance.
- Ideal for industrial, automotive, and marine applications requiring ingress protection and mechanical robustness.
Product Description
Bulgin PX0764/P circular connector is a high-quality 2-contact flange mount plug from the Standard Buccaneer series designed for industrial power management and harsh environments. This male connector delivers secure and reliable connections rated at 12A current and 250V voltage, supporting various industrial and automotive applications requiring robust, sealed connectors.

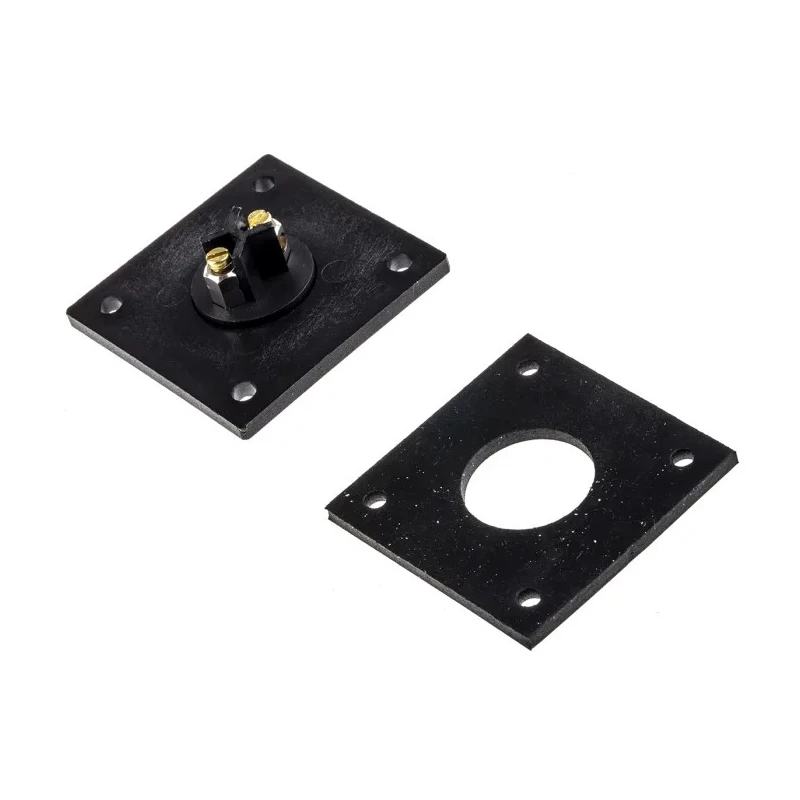

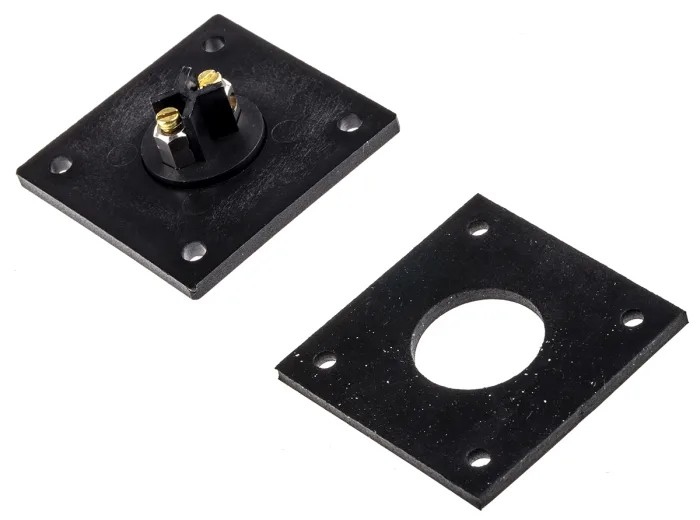

The connector features a polymer housing with nickel-plated brass contacts to offer excellent corrosion resistance and mechanical durability. It employs a screw termination type that allows easy assembly without special tooling, ideal for field installations. The flange mount type includes a sealing gasket and gasket grommets to ensure IP68 protection, making it dust-tight and waterproof, suitable for outdoor and marine environments.
The male plug offers a threaded mating system with a positive locking keyway to prevent mismating and ensure secure connections. Its shell size of 44.4 mm matches the Standard Buccaneer size standard. Operating temperature ranges from -20°C to 70°C accommodate diverse environmental conditions.
Applications include harsh industrial settings, automotive systems, and marine uses where resistance to dust, water, oils, and saltwater is critical. This connector has 2 contacts with a flange mount type. Current rating: 12A and voltage rating: 250V.
Mating type is threaded with positive locking keyway. Housing material is polymer with nickel-plated brass contacts. Rated IP68 for waterproof and dust-tight protection. Operating temperature range -20°C to 70°C. Flange fixing with sealing gasket included.
Suitable for industrial, automotive, and marine applications. Explore more Bulgin circular connectors and industrial power connectors on EnvMart for reliable and certified connection solutions.
Explore more products in our Industrial Circular Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 12A, making it suitable for various industrial applications requiring robust power connections.
The voltage rating for this connector is 250V, allowing it to handle standard voltage levels in industrial settings.
It features a flange mount type, ensuring secure installation in various applications.
This model is rated IP68, providing dust-tight and waterproof protection for use in harsh environments.
The housing is made of polymer, and the contacts are brass plated with nickel for corrosion resistance.
The connector operates effectively within a temperature range of -20°C to 70°C, suitable for diverse environmental conditions.
This circular connector has 2 contacts, designed for efficient power connection.
It utilizes a screw termination type, allowing for easy assembly without the need for special tooling.
The shell size of this model is 44.4 mm, conforming to the Standard Buccaneer size standard.
It features a threaded mating type with a positive locking keyway to ensure secure connections and prevent mismating.
This connector is suitable for industrial, automotive, and marine applications where ingress protection and mechanical robustness are critical.
The country of origin for this connector is Tunisia.
