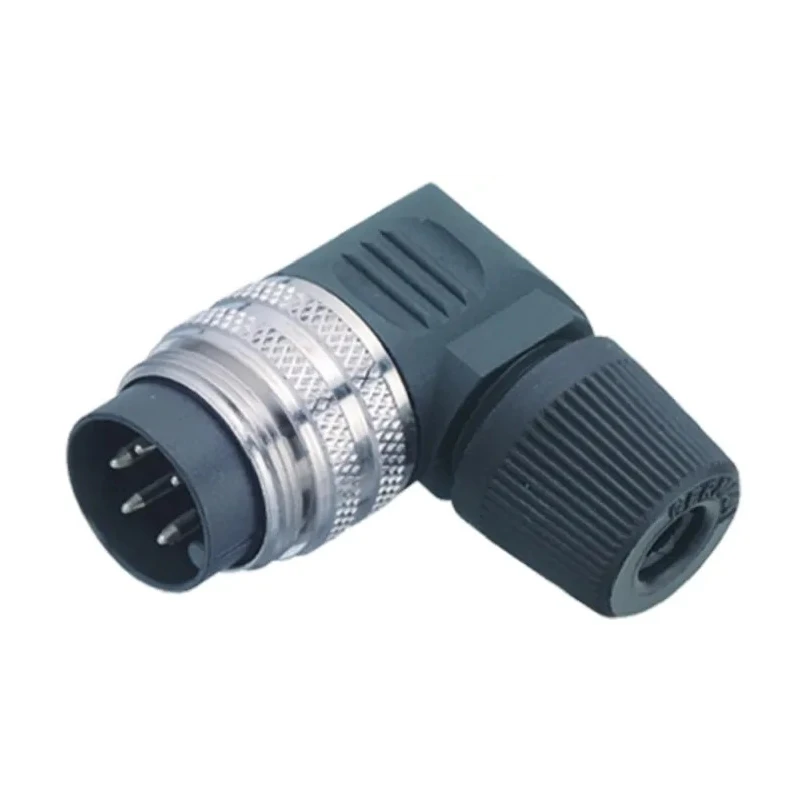

binder Circular Connector 4 Contacts Cable M16 Socket Male IP40 682 Series 09-0137-70-04

Free Delivery in India | Lowest Global Shipping Charges

binder Circular Connector 4 Contacts Cable M16 Socket Male IP40 682 Series 09-0137-70-04

Name: binder Circular Connector 4 Contacts Cable M16 Socket Male IP40 682 Series 09-0137-70-04
Brand: binder
SKU: 128938
Price: 14.43 USD
Availability: InStock



Category Industrial Circular Connectors Brand binder Condition New

Specifications

Country of Origin	Germany
Voltage	250V
Brand	binder
Orientation	Right Angle
Current	6A
IP Rating	IP40
Mount Type	Cable
Housing Material	Polymer
Contact Material	Brass
Series	682
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Pole Format	4
Contact Plating	Silver
Number of Contacts	4
Contact Gender	Male
Shell Size	17.5
Mating Type	Screw-On
Connector Size	M16
Plug/Socket	Socket

Key Features

Connector supports a current rating of 6A suitable for various electronic applications.
Constructed with polymer housing and brass contacts with silver plating for durability and conductivity.
Features solder termination and screw-on mating type providing secure connectivity.
Operating temperature range from -40°C to 85°C for use in industrial environments.
Right angle orientation and shell size of 17.5 mm for compact installation.
Designed according to IEC 60130-9 with IP40 ingress protection grade.
Manufactured in Germany ensuring high-quality standards.

Product Description

binder 09-0137-70-04 Circular Connector is a 4-contact cable-mounted socket designed for industrial and electronic component applications. This M16 size connector belongs to the 682 series and features a male contact gender and right angle orientation, suitable for robust and compact setups.

The connector offers a current rating of 6A and a voltage rating of 250V, making it reliable for power and signal transmission in industrial environments. Its construction includes a durable polymer housing coupled with brass contacts plated with silver to ensure excellent electrical performance and resistance to wear.

Designed with an IP40 ingress protection rating, it effectively guards against solid object intrusion and is ideal for indoor or controlled environments. The termination type is solder, facilitating secure and stable electrical connections, while the mating type utilizes a screw-on locking mechanism compliant with IEC 60130-9 standards.

This connector operates within a wide temperature range from -40°C to 85°C, enabling use in diverse industrial, manufacturing, and electrical installations. The shell size is 17.5 mm, with the connector size being M16, providing a compact footprint for space-constrained applications.

Applications include industrial machinery, electronic device assemblies, power distribution systems, automation control panels, and other settings requiring reliable, high-quality circular connectors.

Current rating of 6A suitable for power and signal applications. Voltage rating of 250V ensuring safe electrical performance. Polymer housing with brass contacts plated in silver for durability. Solder termination and screw-on mating ensure secure connections.

Right angle orientation and M16 size cater to compact industrial designs. IP40 protection rating for resistance against solid objects. Temperature range from -40°C to 85°C supports diverse environments. Conforms to IEC 60130-9 standard for circular connectors.

Country of origin: Germany. This product is classified as new and designed to meet the demands of industrial and electronic connector applications. Browse more from binder's range of circular connectors and related products at EnvMart.
