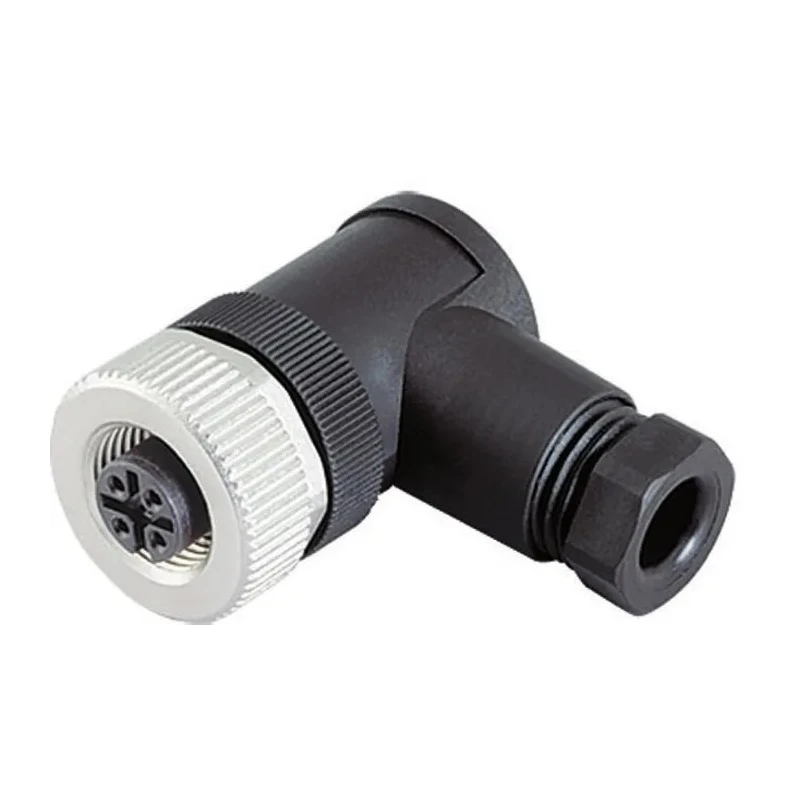

binder Circular Connector, 12 Contacts, Cable Mount, M12 Socket Female, IP67, 713 Series 99-0492-52-12

Free Delivery in India | Lowest Global Shipping Charges

binder Circular Connector, 12 Contacts, Cable Mount, M12 Socket Female, IP67, 713 Series 99-0492-52-12

Name: binder Circular Connector, 12 Contacts, Cable Mount, M12 Socket Female, IP67, 713 Series 99-0492-52-12
Brand: binder
SKU: 127561
Price: 43.74 USD
Availability: InStock



Category Industrial Circular Connectors Brand binder Condition New

Specifications

Country of Origin	Germany
Voltage	30V
Brand	binder
Orientation	Right Angle
Current	1A
IP Rating	IP67
Mount Type	Cable
Housing Material	Metal
Contact Material	Bronze
Series	713
Termination Type	Screw
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Interfaces	Ethernet
Contact Plating	Gold
Number of Contacts	12
Contact Gender	Female
Shell Size	20.2 mm
Connector Size	M12
Plug/Socket	Socket
Coding	A

Key Features

The 713 series connector features A coding to prevent incorrect mating.
Gold plated bronze contacts ensure reliable electrical performance.
Metal housing and screw termination provide durability and ease of assembly.
Right angle orientation supports robust connection in industrial environments.
Rated for 1A current and 30V voltage, suitable for sensor and actuator connections.
IP67 rating offers dustproof and water jet protection for harsh conditions.
Operating temperature ranges from -25°C to 85°C ensuring adaptability in diverse settings.
Suitable for industrial automation, process control, robotics, and transportation applications.

Product Description

binder 99-0492-52-12 circular connector is a 12-contact, cable-mount M12 socket female connector from the robust 713 Series. It operates at 30V and 1A current rating with an IP67 ingress protection, making it ideal for industrial sensor and actuator connections.

The connector features a threaded mating mechanism with A coding to prevent misconnection, gold plated bronze contacts for enhanced conductivity, and a metal housing to withstand challenging environments. Its screw termination design allows easy re-wireable cable mounting without special tooling.

This connector's right angle orientation and compact size with a 20.2 mm shell diameter ensure installation flexibility and secure fit. The operating temperature range from -25°C to 85°C supports a variety of industrial applications.

The 713 series connectors are commonly used in factory automation, process control, industrial automation, instrumentation, commercial electronics, food and beverage sectors, robotics, transportation, and sensor systems. The IP67 rating ensures the connector is dust tight and protected against water jets, suitable for wash-downs and harsh conditions.

The robust build leverages high-grade engineering materials, providing strong and reliable connections in demanding environments. Additionally, circular dust caps are available to maintain IP rating and protect the connector when not in use.

The 713 series connector is A coded for sensor, DC power, and 1 G-bit Ethernet applications. Variants are available with 3, 4, 5, and 12 contacts for versatile needs. The metal housing and gold plating guarantee durability and high performance.

Screw clamp terminals allow for easy termination without special tools. IP67 protection ensures waterproof and dustproof operation. The connector is designed for industrial use in automation and instrumentation. Manufactured in Germany to meet demanding industrial standards.

Supports robust and compact installation requirements. Browse the binder range for more durable and high-quality Industrial Circular Connectors suitable for your electronic and automation needs on EnvMart.
