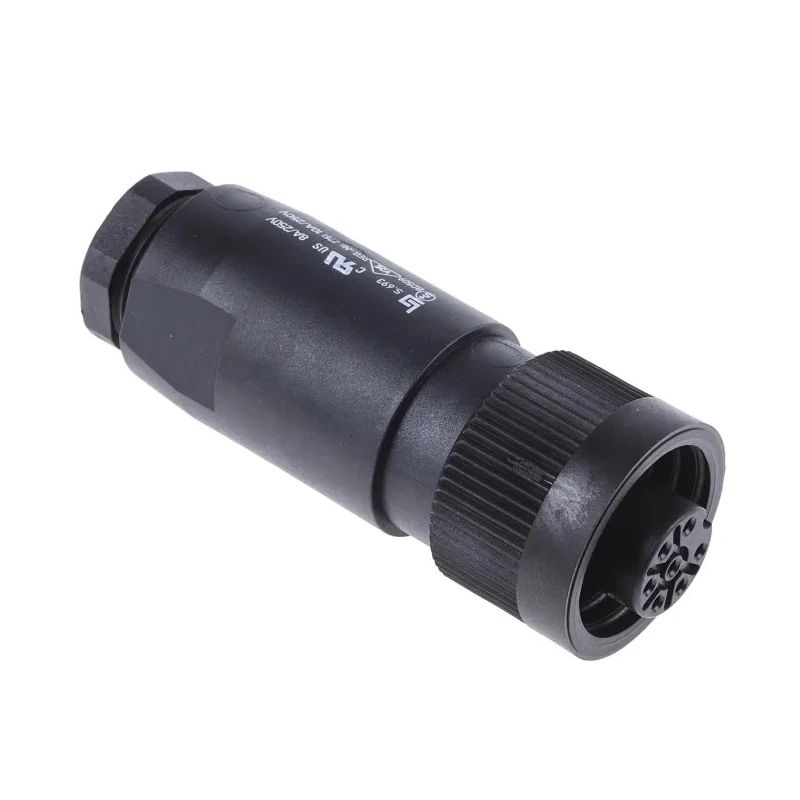

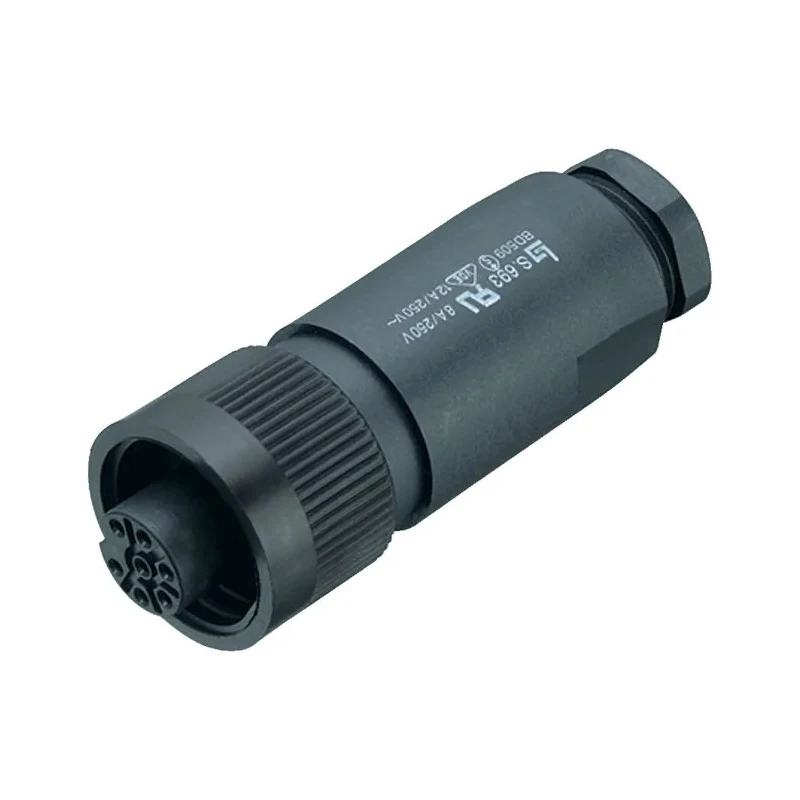

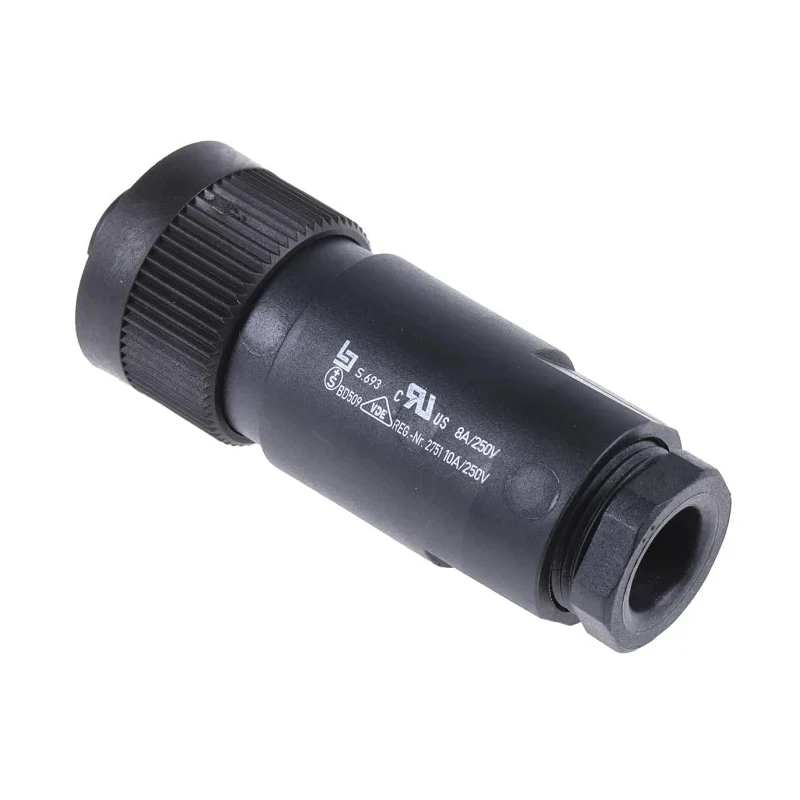

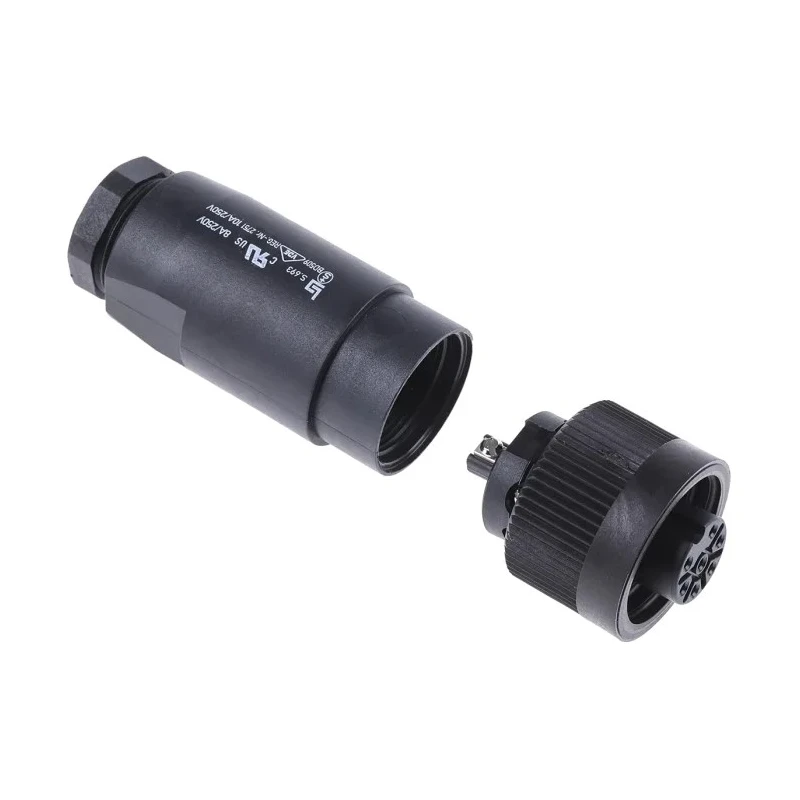

binder Circular Connector 7 Contacts Cable Socket Female IP67 250V 10A Screw Clamp Termination RD24 693 Series
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 250V |
| Brand | binder |
| Orientation | Straight |
| Current | 10A |
| Model | RD24 |
| IP Rating | IP67 |
| Mount Type | Cable |
| Housing Material | PBT |
| Contact Material | Bronze |
| Series | 693 |
| Termination Type | Screw Clamp |
| Maximum Operating Temperature | 100°C |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | UL |
| Pole Format | 6 + PE |
| Contact Plating | Silver |
| Number of Contacts | 7 |
| Contact Gender | Female |
| Shell Size | 29 |
| Mating Type | Screw |
| Connector Size | RD24 |
| Plug/Socket | Socket |
Key Features
- The circular connector features a seven-contact arrangement with six signal poles and one protective earth contact.
- Rated for 250V voltage and a 10A current per contact for industrial electrical systems.
- Screw clamp termination ensures secure mechanical retention without soldering.
- Constructed with a PBT housing providing chemical resistance and silver-plated bronze contacts for superior conductivity.
- IP67 ingress protection offers dust tightness and water immersion resistance for industrial applications.
- Designed for wide temperature operation from -40°C to 100°C, suitable for harsh environments.
- Connector socket is female with straight orientation and screw mating type for compact and reliable field wiring.
- Ideal for automation I/O connections, sensor and actuator wiring, mobile machinery cabins, and control cabinet external cable entries.
Product Description
binder 99-4218-14-07 Circular Connector 7 Contacts Cable Socket Female RD24 from the 693 Series provides a sealed, cable-mounted interface for industrial electrical systems operating up to 250V with a 10A current capacity per contact. This connector is engineered for reliable multi-contact connections in challenging industrial environments.
The design incorporates a seven-contact layout with six signal contacts and one protective earth, allowing discrete wiring of circuits alongside dedicated earthing. The connector's housing is constructed from durable PBT material, ensuring excellent resistance to chemicals commonly found in industrial settings.
Its silver-plated bronze contacts offer consistent electrical performance and durability against corrosion. The screw clamp termination system facilitates secure cable attachment in the field without needing soldering, enhancing installation efficiency and reliability.
This circular connector features an IP67 ingress protection rating, ensuring dust prevention and temporary immersion capability, making it suitable for use in environments exposed to moisture and contaminants. The device operates reliably across a wide temperature range from -40°C to 100°C, accommodating diverse industrial applications.
With a straight orientation and screw mating engagement, the female socket configuration allows straightforward integration into systems requiring compact multi-pin connections. Typical applications include automation I/O connections, sensor and actuator signal distribution, mobile machinery cabin wiring, and external cable entry for control cabinets requiring earth contacts.
The connector’s seven-contact configuration supports versatile signal and earth wiring needs in industrial automation. Robust construction and IP67 rating provide dependable operation in demanding conditions. Screw clamp termination ensures secure, tool-assisted cable connections without soldering.
Suitable for power and signal distribution in mobile and industrial manufacturing environments. The connector complies with UL standards, highlighting safety and quality assurance. This product is manufactured in Germany, ensuring high-quality engineering and performance standards.
Explore the Industrial Circular Connectors category for more dependable connectivity solutions at EnvMart.
