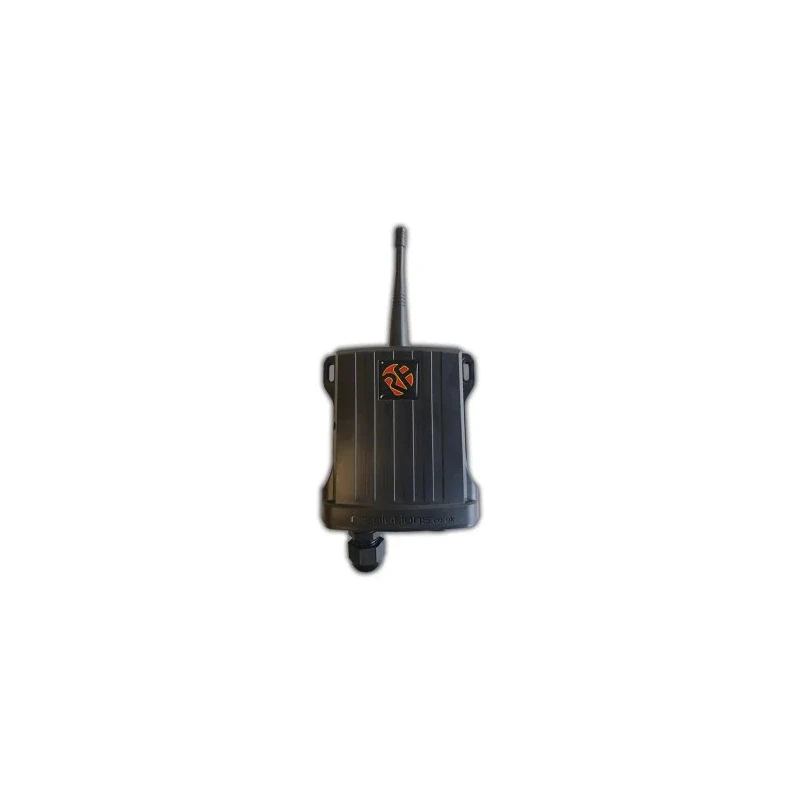

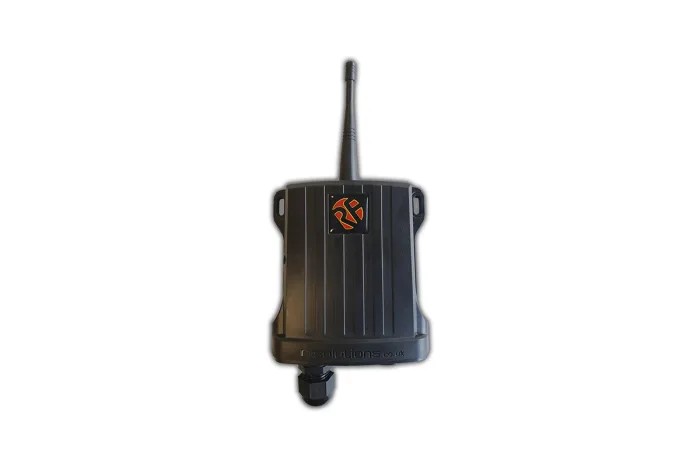

RF Solutions Receiver, 868 MHz Frequency, 2 Channels, 230 V Nominal Supply Voltage, FM Modulation, 150 m Range HORNETPRO-8R2M

Free Delivery in India | Lowest Global Shipping Charges

RF Solutions Receiver, 868 MHz Frequency, 2 Channels, 230 V Nominal Supply Voltage, FM Modulation, 150 m Range HORNETPRO-8R2M

Name: RF Solutions Receiver, 868 MHz Frequency, 2 Channels, 230 V Nominal Supply Voltage, FM Modulation, 150 m Range HORNETPRO-8R2M
Brand: RF Solutions
SKU: 155417



Category Remote Control Systems Brand RF Solutions Condition New

Specifications

Country of Origin	United Kingdom
Frequency	868MHz
Range	150m
Brand	RF Solutions
Height	130mm
Model	HORNETPRO-8R2M
Depth	42mm
Width	112mm
Maximum Operating Temperature	80°C
Minimum Operating Temperature	-10°C
Number Of Channels	2
Modulation	FM
Nominal Supply Voltage	230 V

Key Features

Operates at a nominal supply voltage of 230 V.
Designed for use in general purpose remote switching applications.
Capable of controlling up to 4 changeover relay switch outputs.
Functionality includes easy addition of extra transmitters using an easy-learn process without opening the enclosure.
Effective operating temperature range from -10°C to 80°C for various environmental conditions.
Compact form factor with dimensions of 130 mm height, 112 mm width, and 42 mm depth.
Achieves compliance with RED Directive 2014/53/EU, WEEE Directive 2002/96/EC, and RoHS Directive 2002/95/EC standards.
Manufactured in the United Kingdom.

Product Description

RF Solutions HORNETPRO-8R2M is a robust remote control receiver operating at 868 MHz frequency with FM modulation and 2 channel support. It runs on a nominal supply voltage of 230 V and provides a wireless control range up to 150 meters, making it suitable for various general-purpose industrial and commercial remote switching applications.

This receiver provides up to 4 changeover relay switch outputs, allowing each output to be independently controlled from any switch on any compatible transmitter. The system facilitates the addition of multiple transmitters through a simple easy-learn process, eliminating the need to open the enclosure, which enhances operational convenience and maintenance efficiency.

The device is designed to operate reliably in temperature conditions ranging from -10°C to 80°C. It features a compact design with dimensions 130 mm (H) x 112 mm (W) x 42 mm (D), suited for installations in constrained spaces.

Compliance with important international standards like RED Directive 2014/53/EU, WEEE Directive 2002/96/EC, and RoHS Directive 2002/95/EC ensures environmental and electronic safety compliance.

This receiver is ideal for various industrial and commercial applications such as controlling electric gates, roller shutter doors, garden lighting systems, and sports ground equipment. It supports up to 4 relay outputs which can be switched remotely providing flexibility and enhanced automation capabilities.

Operates at 868 MHz frequency with FM modulation. Supports 2 channels and up to 4 relay changeover outputs. Nominal supply voltage of 230 V for compatibility with standard electrical circuits. Extended operating temperature range from -10°C to 80°C for diverse environments.

Compact dimensions 130 mm H x 112 mm W x 42 mm D for versatile installation. Certified to RED, WEEE, and RoHS directives for compliance and sustainability. Enclosure supports easy learn addition of transmitters without opening.

Designed and manufactured in the United Kingdom to high industrial standards.
