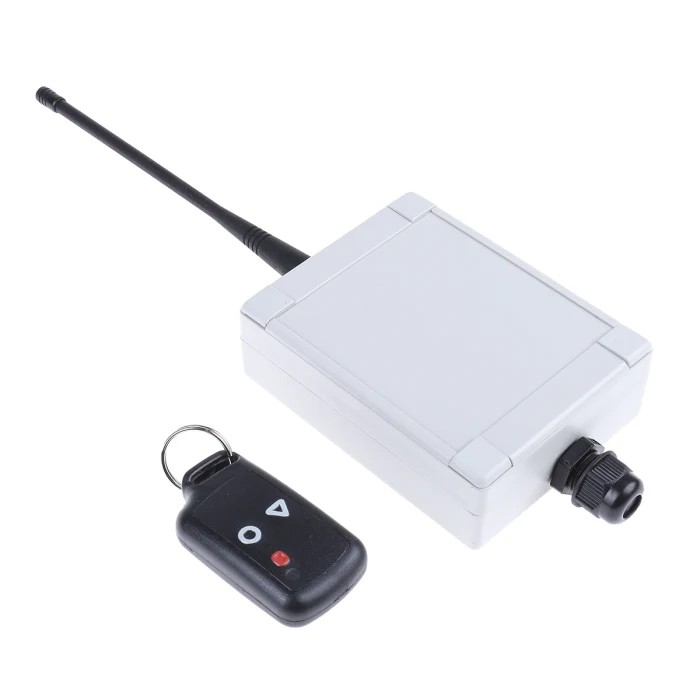

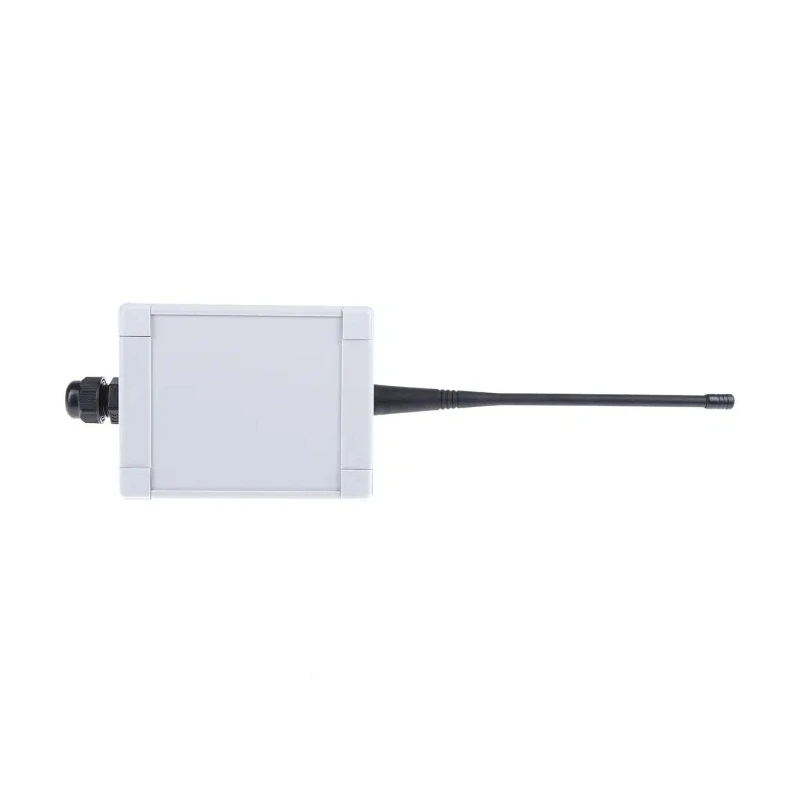

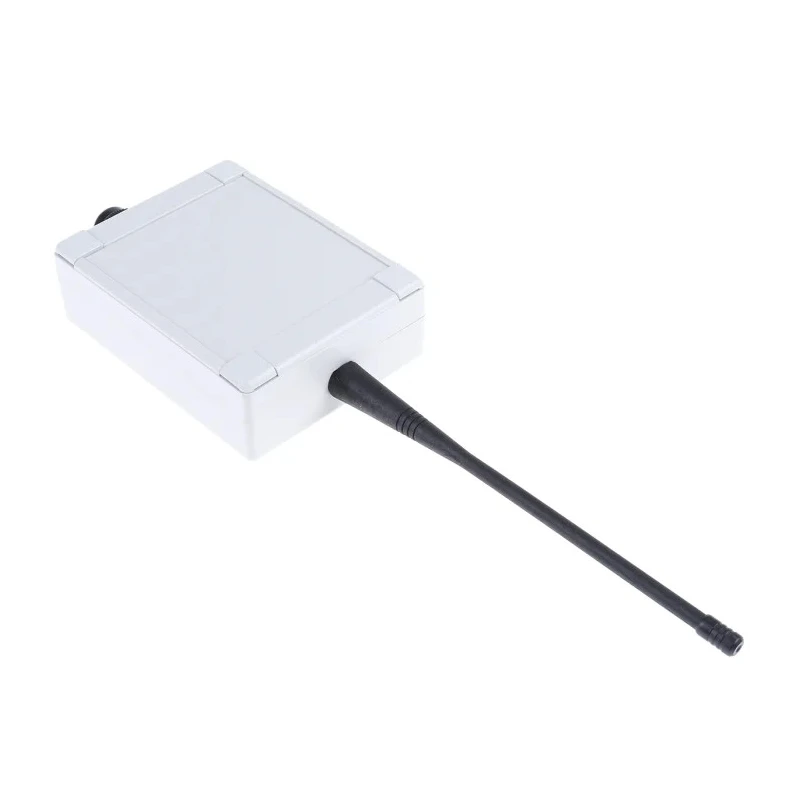

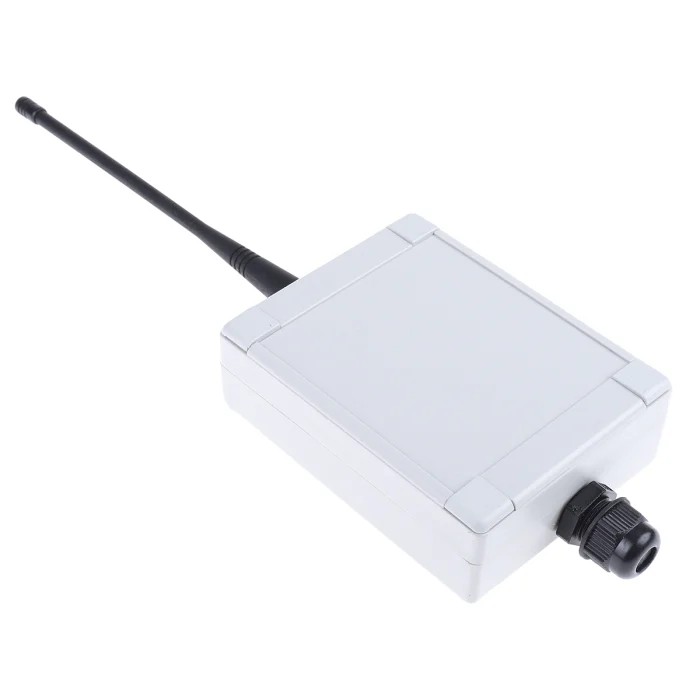

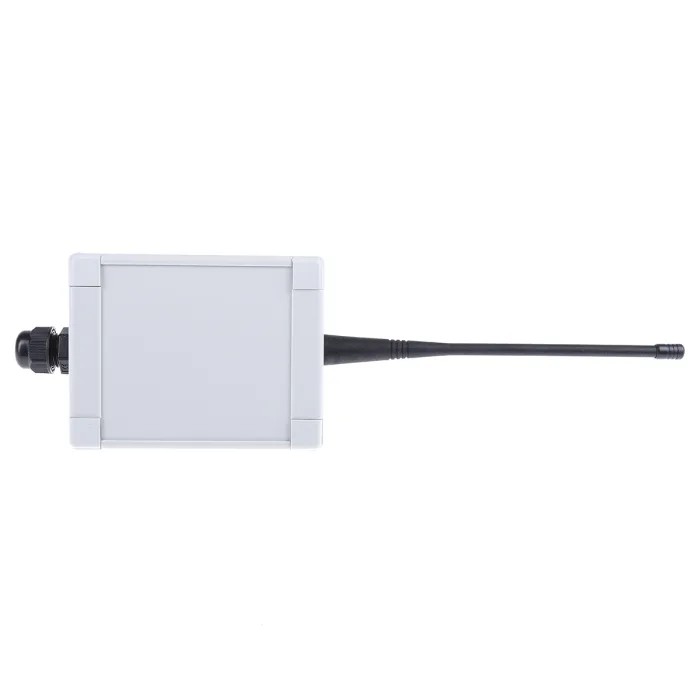

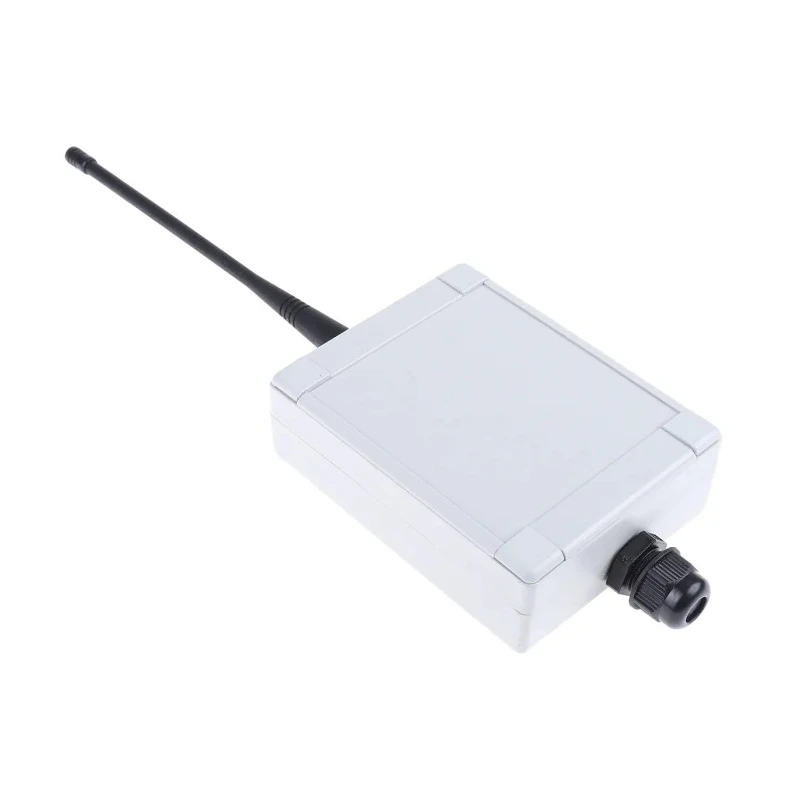

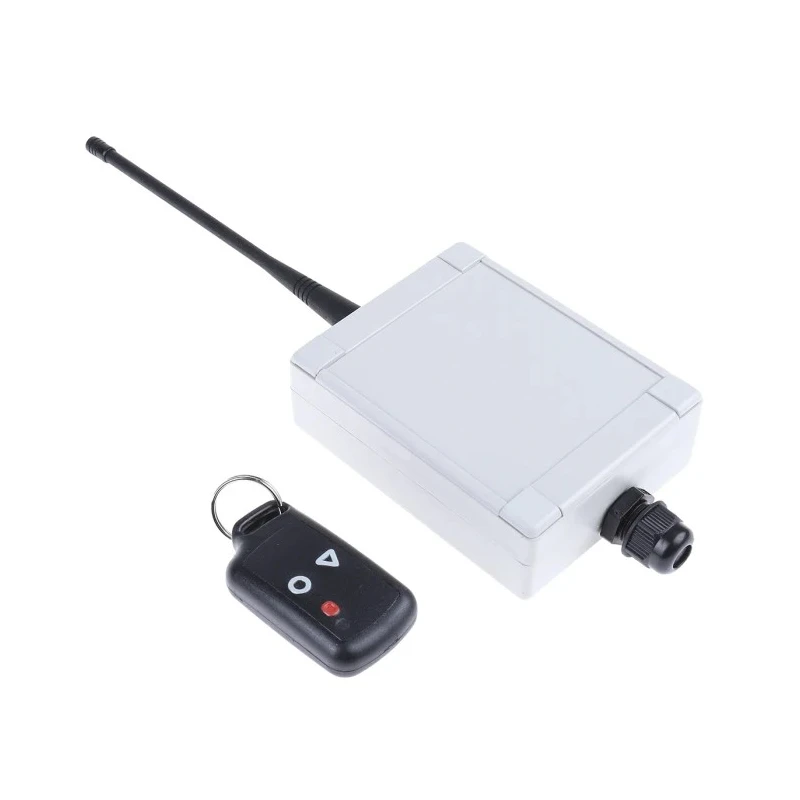

RF Solutions Remote Control Base Station Transmitter 433.92 MHz AM, 3 Channels, 12 - 24 V, IP65, 110x85x35mm 118C3A
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Frequency | 433.92MHz |
| Range | 100m (line-of-sight) |
| Brand | RF Solutions |
| Height | 110mm |
| Operating Temperature Range | 0 to +55°C |
| Model | 118C3A |
| Depth | 35mm |
| Width | 85mm |
| Maximum Operating Temperature | 60°C |
| Sub Type | Transmitter |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 3 |
| Receiver Dimensions | 110 x 85 x 35mm |
| Standards/Approvals | RoHS |
| Modulation | AM |
| Nominal Supply Voltage | 12 V, 24 V |
| No of channels (buttons) | 1/3 |
| Receiver outputs | 1/3 latching/non-latching relays |
| Receiver enclosure rating | IP65 |
| Quasar QS3 Remote Control System & Kit,433.92MHzBrand | Quasar |
Key Features
- The transmitter supports a nominal supply voltage of 12 V to 24 V for flexible power options.
- Operating temperature range is from 0°C up to 60°C to withstand typical industrial environments.
- Compact and rugged IP65 rated enclosure ensures weatherproofing with dimensions of 110mm height, 85mm width, and 35mm depth.
- Features ASK modulation and Keeloq code-hopping security protocol for secure and interference-resistant operation.
- Maximum wireless range is line-of-sight 100 meters suitable for applications like lighting, gates, and roller shutters.
- Includes 3 channels allowing control of multiple relays with latching or non-latching outputs.
- Designed and manufactured in the United Kingdom, meeting RoHS compliance standards.
Product Description
RF Solutions 118C3A Remote Control Base Station Transmitter operates at 433.92 MHz AM frequency with 3 control channels, powered by 12 to 24 V nominal supply voltage. This rugged unit features an IP65 weatherproof enclosure measuring 110 x 85 x 35mm, suitable for industrial and commercial remote control applications.
Utilizing ASK modulation and the secure Keeloq code-hopping protocol, the transmitter provides reliable communication with a maximum range of 100 meters line-of-sight. It supports operation within temperatures from 0°C to 60°C, making it ideal for outdoor use under varying environmental conditions.
The device outputs control signals via 1 to 3 latching or non-latching relays, enabling flexible use in wireless lighting control, electric gate operation, roller shutter doors, and garden lighting systems.
Certified RoHS compliant and manufactured in the United Kingdom, the 118C3A model delivers a robust, secure, and versatile base station solution for wireless control systems in industrial, commercial, and residential settings.
The transmitter supports 3 discrete control channels for multimodal operation. Weatherproof IP65-rated enclosure protects against dust and water ingress. Employs Keeloq code-hopping security to prevent unauthorized access.
Compact size and rugged design suitable for both indoor and outdoor installations. Wide operational temperature ensures reliability in diverse climatic conditions. Ideal for applications such as lighting controls, gate automation, and roller shutters.
Manufactured in the United Kingdom with high-quality standards.
Explore EnvMart's range of remote control systems and related automation products to find complementary devices and accessories for your industrial, commercial, or residential projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The transmitter operates at a frequency of 433.92 MHz.
This model supports a nominal supply voltage of 12 V to 24 V.
The dimensions of the unit are 110 mm in height, 85 mm in width, and 35 mm in depth.
It features 3 control channels, allowing for the operation of multiple relays.
The transmitter operates within a temperature range of 0°C to 60°C.
It has an IP65 rated enclosure, ensuring protection against dust and water ingress.
This model utilizes ASK modulation for its operation.
It employs the Keeloq code-hopping security protocol to prevent unauthorized access.
Yes, it is certified RoHS compliant.
This transmitter is designed and manufactured in the United Kingdom.
It supports 1 to 3 latching or non-latching relay outputs.
