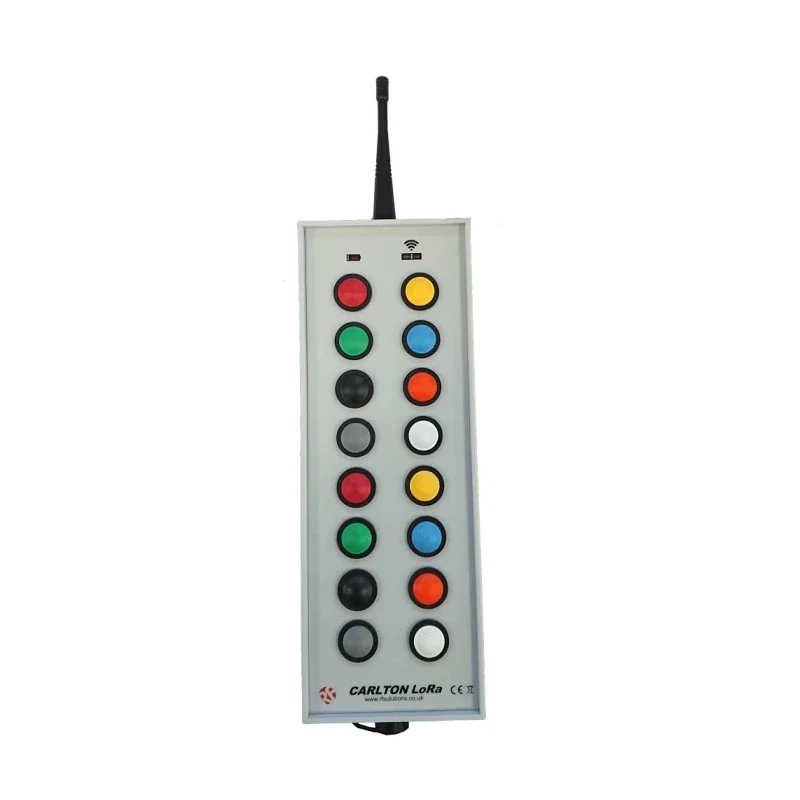

RF Solutions Remote Control Base Station Transmitter 868 MHz FM 16 Channels CARLTON-8T16
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Frequency | 868MHz |
| Brand | RF Solutions |
| Model | CARLTON-8T16 |
| Maximum Operating Temperature | 60°C |
| Sub Type | Transmitter |
| Minimum Operating Temperature | -10°C |
| Number Of Channels | 16 |
| Standards/Approvals | RoHS, FCC, CE |
| Modulation | FM |
| Nominal Supply Voltage | 4.5 V |
Key Features
- The transmitter supports multiple range modes including LORA and FM with a maximum range of up to 16 km in LORA Mode 7.
- It features optional acknowledge indication providing feedback from the receiver to the user.
- The device is waterproof rated to IP66, suitable for rugged outdoor use.
- An internal lithium-ion rechargeable battery powers the unit for reliable operation.
- Designed for industrial and commercial remote control applications requiring robust and versatile transmitter solutions.
- Supports up to 16 control channels for multi-channel operation.
- Operates with nominal supply voltage of 4.5 V from the internal rechargeable battery.
- Functional temperature range is from -10°C to 60°C, suitable for diverse environments.
Product Description
RF Solutions CARLTON-8T16 is a rugged remote control base station transmitter operating at 868 MHz frequency with FM modulation, supporting 16 separate channels. It is designed to work with multiple RF Solutions receivers to create a versatile range remote control system suitable for industrial, commercial, and automation environments.
The transmitter offers several modes of operation to optimize range and performance, including LORA Mode 7 which supports communication up to 16 kilometers, LORA Mode 1 for up to 5 kilometers, and FM mode providing up to 4 kilometers of range. These modes enable users to tailor signal reach according to specific requirements.
In addition to robust transmission capabilities, this device can optionally request feedback from the receiver to provide visual acknowledgment, enhancing usability and control verification. It also supports automatic background watchdog transmissions to ensure continuous safe operation.
The CARLTON-8T16 transmitter is enclosed in a waterproof housing compliant with IP66 standards for protection against dust and water ingress, making it suitable for harsh environments and outdoor applications. It is powered by an internal lithium-ion rechargeable battery, providing dependable power for extended use without frequent battery replacements.
This base station transmitter finds practical applications in industrial automation, safety control systems, remote equipment operation, and other scenarios requiring reliable wireless control over multiple channels. Compatibility with RF Solutions receivers further simplifies integration into existing control architectures.
The transmitter supports up to 16 control channels. Operates with nominal supply voltage of 4.5 V from an internal rechargeable battery. Functional temperature range from -10°C to 60°C supports diverse environmental conditions.
Conforms to RoHS, FCC, and CE standards ensuring quality and compliance. Manufactured in the United Kingdom with attention to durability and performance. Explore the full range of RF Solutions Remote Control Base Stations on EnvMart to find compatible and complementary products for your control system needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at a frequency of 868 MHz.
It supports up to 16 control channels for multi-channel operation.
The nominal supply voltage is 4.5 V, provided by an internal rechargeable lithium-ion battery.
It uses FM modulation for its operation.
Yes, it is waterproof rated to IP66, making it suitable for rugged outdoor applications.
It conforms to RoHS, FCC, and CE standards, ensuring compliance and quality.
It is designed for industrial automation, safety control systems, and remote equipment operation.
Yes, it features optional acknowledge indication to provide feedback from the receiver to the user.
It is manufactured in the United Kingdom.
It is powered by an internal lithium-ion rechargeable battery for reliable operation.
