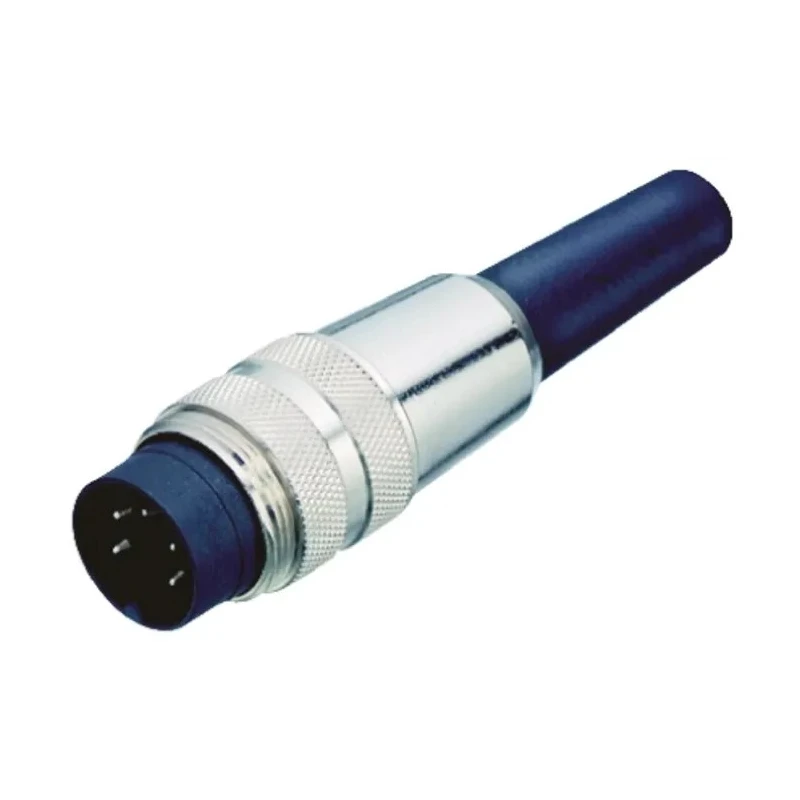

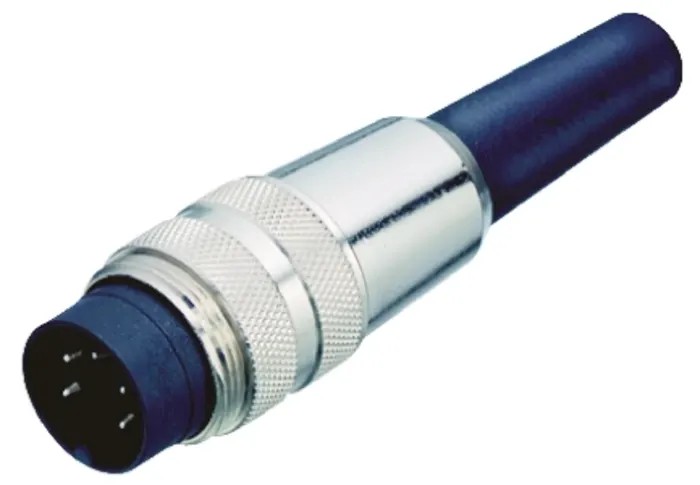

binder Circular Connector Cable Socket 16 Contacts M16 Connector IP40 680 Series 09-0337-00-16

Free Delivery in India | Lowest Global Shipping Charges

binder Circular Connector Cable Socket 16 Contacts M16 Connector IP40 680 Series 09-0337-00-16

Name: binder Circular Connector Cable Socket 16 Contacts M16 Connector IP40 680 Series 09-0337-00-16
Brand: binder
SKU: 128939
Price: 27.49 USD
Availability: InStock



Category Industrial Circular Connectors Brand binder Condition New

Specifications

Country of Origin	Germany
Voltage	60V
Brand	binder
Orientation	Straight
Current	3A
IP Rating	IP40
Mount Type	Cable
Housing Material	Metal
Contact Material	Brass
Series	680
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Contact Plating	Gold
Number of Contacts	16
Contact Gender	Male
Shell Size	17.2
Mating Type	Screw Lock
Connector Size	M16
Plug/Socket	Socket

Key Features

The connector features a compact 680 series miniature design for tight spaces.
Robust metal housing provides excellent EMI shielding and durability.
Straight cable mount type with solder termination ensures secure connections.
Gold-plated brass contacts and screw lock mating type guarantee reliable signal integrity.
Operates safely between -40°C and 85°C for varied industrial environments.
Offers an IP40 rating, suitable for indoor use without dust or moisture exposure.
Compliance with IEC 130-9 screw locking standard enhances mechanical reliability.
Ideal for automation, instrumentation, machine tools, medical and plant equipment applications.

Product Description

binder 09-0337-00-16 Circular Connector is a cable mount socket featuring 16 gold-plated brass contacts in a miniature 680 series design. Rated IP40, this M16 sized connector supports currents up to 3A and voltages up to 60V, suitable for indoor industrial electronic and electrical device connections.

The connector offers a compact and robust metal shell with high EMI shielding for reliable performance in environments such as industrial instrumentation, process control, machine tools, and medical equipment. It accommodates a solder termination and presents a straight orientation with a screw lock mating type as per IEC 130-9 standards to ensure secure connections and durability.

Operating between -40°C and 85°C, the connector withstands a wide range of temperatures while its internal bend protection sleeve protects cables from damage and strain relief provides maximum cable retention. The 680 series is a proven solution for industrial automation setups requiring miniature connectors with high mating cycle durability.

The connector features a compact 680 series miniature design for assembly in constrained spaces. Robust metal housing delivers excellent EMI shielding and mechanical strength. Straight cable mount type with solder termination ensures solid electrical connections.

Gold-plated brass contacts offer dependable conductivity and resistance to corrosion. The IP40 rating limits use to indoor environments protected from dust and moisture. Screw lock mechanism ensures secure and vibration-resistant mating.

Operating temperature range from -40°C to 85°C suits a broad range of industrial applications. Typical uses include industrial instrumentation, medical devices, machine tools, and plant automation.

The binder 680 series circular connectors deliver precise miniature connectivity solutions tailored for demanding industrial and electronic applications. This M16 male socket is engineered for compatibility, reliability, and ease of installation, making it an essential component for your electrical connector needs.
