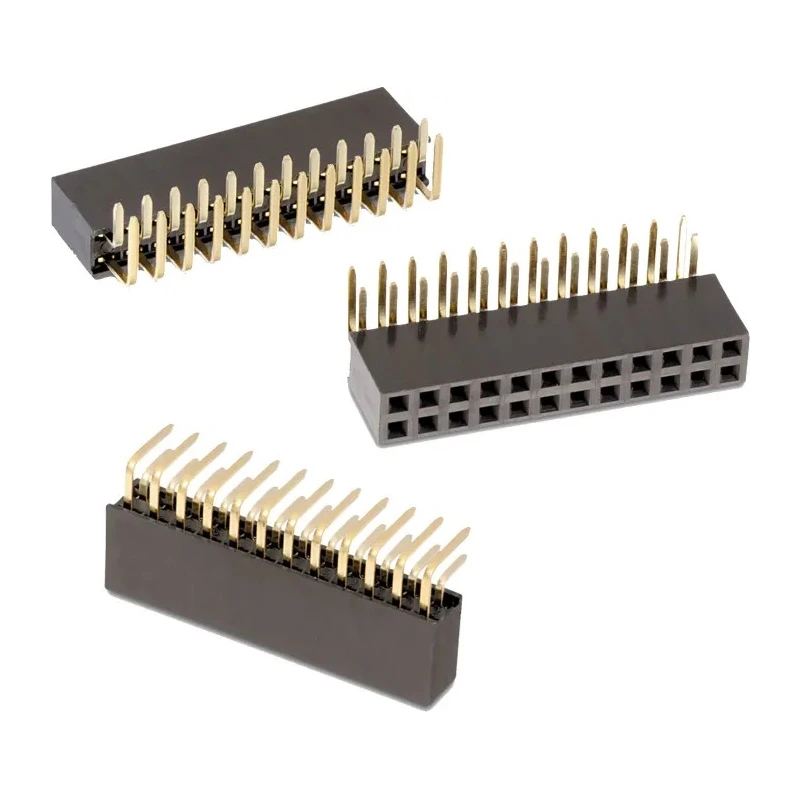

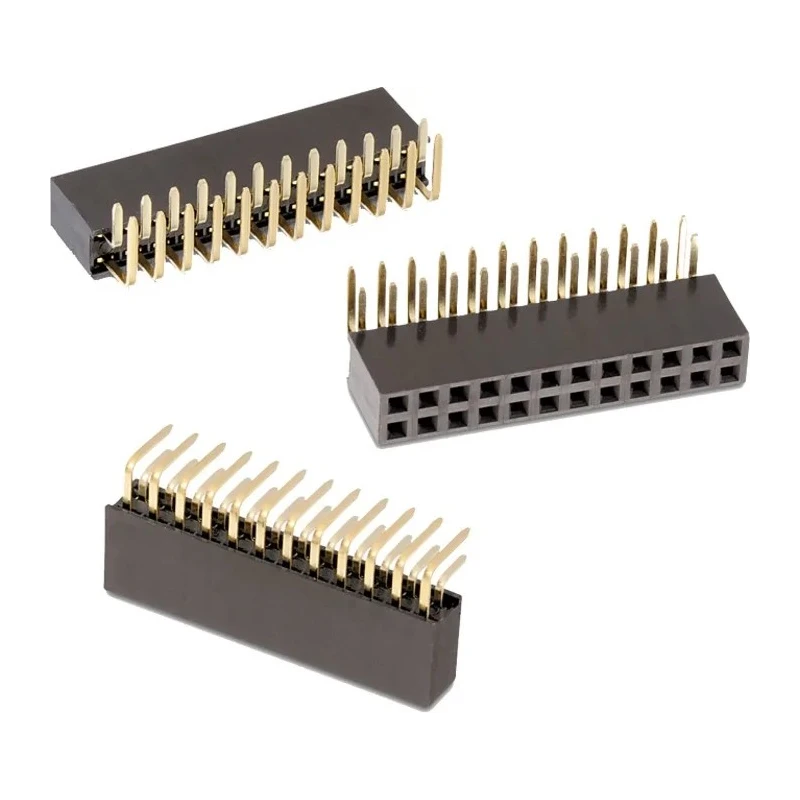

Wurth Elektronik WR-PHD Series Angled PCB Socket 34-Contact 2 Row 2.54 mm Pitch 250V 3A 613034243121
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 250V |
| Brand | Wurth Elektronik |
| Orientation | Angled |
| Current | 3A |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Copper Alloy |
| Series | WR-PHD |
| Durability | 25mating cycles |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Standards/Approvals | UL Approval E323964, DIN EN 61760-2, REACh Approval Conform or declared, RoHS Approval, DIN ISO 2768 |
| Contact Plating | Gold |
| Number of Contacts | 34 |
| Contact Gender | Female |
Key Features
- Features a 2.54 mm pitch spacing between contacts for precise PCB integration.
- Constructed with a Polybutylene Terephthalate (PBT) housing for durable insulation.
- Contacts are made from copper alloy with gold plating to ensure reliable conductivity and corrosion resistance.
- Designed for an angled orientation to support diverse PCB layout requirements.
- Rated for temperatures from -40°C to 105°C to operate in a wide range of environments.
- Complies with UL Approval E323964 and RoHS standards for safety and environmental protection.
- Durability guaranteed for up to 25 mating cycles, supporting moderate connector use.
- Suitable for industrial and electronic manufacturing applications requiring dependable PCB connections.
Product Description
Wurth Elektronik 613034243121 angled PCB socket is a high-quality connector designed for demanding electronic component integration requiring 250V and a 3A current rating. This socket features 34 contacts arranged in 2 rows with a standard 2.54 mm pitch spacing that ensures compatibility with common PCB boards.
The housing is molded from Polybutylene Terephthalate (PBT), offering excellent electrical insulation and mechanical stability. The angled orientation of the socket facilitates diverse design configurations in electronic assemblies, enhancing installation flexibility.
Contacts within the socket are manufactured from copper alloy and plated with gold to provide superior conductivity and long-lasting corrosion resistance. This combination supports signal integrity critical in complex circuits and industrial applications.
With a durability of 25 mating cycles, the connector is suited for medium-frequency connections where reliability is essential. It is UL approved (E323964) and meets RoHS environmental compliance, ensuring safety and eco-friendly operation.
The product withstands an operating temperature range from -40°C to +105°C, making it suitable for use in harsh environments and demanding industrial settings. Originating from Taiwan, Province Of China, this Wurth Elektronik PCB socket is a reliable choice for electronic manufacturing, laboratory setups, and industrial control systems.
2.54 mm pitch spacing for precise PCB integration. Polybutylene Terephthalate housing for durable insulation. Copper alloy contacts with gold plating for corrosion resistance. Angled orientation supports various PCB layouts.
Operating temperature range from -40°C to 105°C. UL approved and RoHS compliant for safety and environmental standards. Durability rated for 25 mating cycles. Ideal for industrial and manufacturing electronics applications.
Explore our comprehensive category of PCB Sockets to find matching and compatible connectors and enhance your electronic component assembly through EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB socket is rated for a voltage of 250V and a current of 3A.
The contacts are arranged with a pitch spacing of 2.54 mm.
It features a total of 34 contacts arranged in 2 rows.
The housing is made from Polybutylene Terephthalate (PBT), while the contacts are made from copper alloy with gold plating.
It can operate within a temperature range of -40°C to +105°C.
The connector is rated for up to 25 mating cycles, suitable for moderate use.
Yes, it complies with UL Approval E323964 and RoHS standards.
This model features an angled orientation to support diverse PCB layout requirements.
The PCB socket originates from Taiwan, Province Of China.
It is suitable for industrial and electronic manufacturing applications requiring dependable PCB connections.
In addition to UL approval, it meets DIN EN 61760-2 and REACh Approval standards.
The contact gender of this model is female.
